Parts book 3228768 r12 · 2019-02
IMER Syntesi 350 EL parts book
Every part number in the book, drawing by drawing, linked to its part page or a price request.
- drawings
- 6
- part numbers
- 134
- priced online
- 121

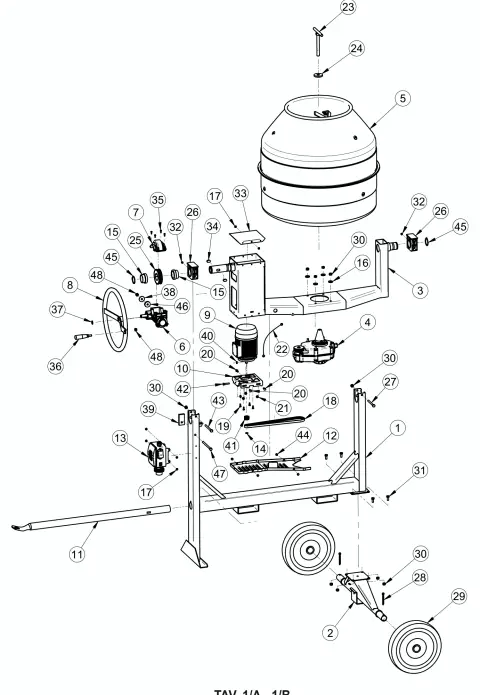

Drawing 1/B
Machine Structure (Syntesi 300-350)
| Ref | Part no. | Description | Price | Add to cart |
|---|---|---|---|---|
| 1 | 3209021 | Frame | $769.00 | |
| 2 | 3228747 | Wheel Axle | $474.00 | |
| 3 | 3209022 | Arm | $770.00 | |
| 4 | 3210691 | Gear Box | $1,008.00 | |
| 4 | 3210475 | Gear Box | $983.00 | |
| 5 | 3209311 | Complete Tank Assembly | $1,184.00 | |
| 5 | 3206635 | Complete Tank Assembly | $1,225.00 | |
| 6 | 3209786 | Drum Movement Reduction Unit | $358.00 | |
| 7 | 3209429 | Cover | Not sold onlineAsk a parts specialist | |
| 8 | 3228750 | Handwheel | $182.00 | |
| 9 | 3234565 | Motor | $634.00 | |
| 9 | 3210697 | Motor | Not sold onlineAsk a parts specialist | |
| 9 | 3226678 | Motor | Not sold onlineAsk a parts specialist | |
| 9 | 3228383 | Motor | $985.00 | |
| 9 | 3209560 | Motor | $869.00 | |
| 9 | 3210674 | Motor | $950.00 | |
| 10 | 3209006 | Motor Support | $63.00 | |
| 11 | 3228748 | Tow Bar | $104.00 | |
| 12 | 3209005 | Guard | $40.00 | |
| 13 | 3229076 | Electric Panel | $207.00 | |
| 13 | 3210699 | Electric Panel | Not sold onlineAsk a parts specialist | |
| 13 | 3209025 | Electric Panel | $221.00 | |
| 13 | 3228320 | Electric Panel | $337.00 | |
| 13 | 3231997 | Electric Panel | $257.00 | |
| 13 | 3210677 | Electric Panel | $461.00 | |
| 14 | 2227214 | Stop Ring E 14 | $10.00 | |
| 15 | 3208770 | Bushing | $16.00 | |
| 16 | 3209178 | Washer D. 10x30x4 | $10.00 | |
| 17 | 3211175 | Rivet Stavex 4.8 | $10.00 | |
| 18 | 3235727 | Belt | $44.00 | |
| 18 | 3236052 | Belt | Not sold onlineAsk a parts specialist | |
| 19 | 2222002 | Bolt M6x16 | $10.00 | |
| 20 | 2222060 | Bolt M8x20 | $10.00 | |
| 21 | 2223570 | Nut M8 | $10.00 | |
| 22 | 3230876 | Ground Cable 300 mm | Not sold onlineAsk a parts specialist | |
| 23 | 3210467 | Drum Locking Screw | $48.00 | |
| 24 | 3210466 | Washer D. 61x19x8 | $13.00 | |
| 25 | 3208773 | Gear | $117.00 | |
| 26 | 3209009 | Support | $32.00 | |
| 27 | 1222694 | Bolt M10x110 | Not sold onlineAsk a parts specialist | |
| 28 | 2226503 | Split Pin D. 8x63 | $10.00 | |
| 29 | 2211250 | Wheel | $68.00 | |
| 30 | 2223920 | Self-Locking Nut M10 | $10.00 | |
| 31 | 2222056 | Bolt M10x25 | $10.00 | |
| 32 | 2230350 | Greaser M8x1.25 | $10.00 | |
| 33 | 3228749 | Arm Closure | $24.00 | |
| 34 | 3208776 | Key 14x9x25 | $10.00 | |
| 35 | 2222465 | Bolt M5x15 | $10.00 | |
| 36 | 3206748 | Knob M10 | $15.00 | |
| 37 | 3225036 | Stop Ring E 20 | Not sold onlineAsk a parts specialist | |
| 38 | 2224220 | Washer D. 10x40 | $10.00 | |
| 39 | 3208789 | Shock Absorber | $11.00 | |
| 40 | 3228116 | Key 5x5x16 | $10.00 | |
| 41 | 3208828 | Pulley | $49.00 | |
| 42 | 2222190 | Bolt M8x40 | $10.00 | |
| 43 | 2222154 | Bolt M10x120 | $10.00 | |
| 44 | 3225750 | Bolt M6x10 | $10.00 | |
| 45 | 2227205 | Stop Ring E 50 | $10.00 | |
| 46 | 3208790 | Shock Absorber | $10.00 | |
| 47 | 3210606 | Bolt M10x160 | $10.00 | |
| 48 | 2223920 | Self-Locking Nut M10 | $10.00 |

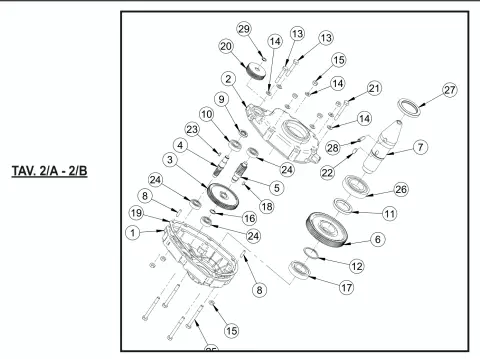

Drawing 2/B
Gear Box (Syntesi 300-350)
| Ref | Part no. | Description | Price | Add to cart |
|---|---|---|---|---|
| 1 | 3209514 | Gear Box Casing | $109.00 | |
| 2 | 3209515 | Gear Box Casing | $124.00 | |
| 3 | 3209801 | Gear | $99.00 | |
| 4 | 3209799 | Shaft | $82.00 | |
| 5 | 3208975 | Pinion | $63.00 | |
| 6 | 3208970 | Gear | $120.00 | |
| 7 | 3210474 | Main Shaft | $163.00 | |
| 8 | 3213180 | Pin D. 8x30 | $10.00 | |
| 9 | 3200094 | Oil Seal 35x20x7 | $10.00 | |
| 10 | 3208983 | Bearing 6204 | $17.00 | |
| 11 | 3208966 | Spacer | $20.00 | |
| 12 | 2227207 | Stop Ring E 55 | $10.00 | |
| 13 | 2222148 | Bolt M10x65 | $10.00 | |
| 14 | 2224340 | Washer D. 10x21 | $10.00 | |
| 15 | 2223650 | Nut M10 | $10.00 | |
| 16 | 2227320 | Stop Ring E 20 | $10.00 | |
| 17 | 3213282 | Bearing 6208 | $45.00 | |
| 18 | 2229259 | Key 6x6x14 | $10.00 | |
| 19 | 3209811 | Gasket | $16.00 | |
| 20 | 3235725 | Pulley | $39.00 | |
| 20 | 3210688 | Pulley | $97.00 | |
| 21 | 2222145 | Bolt M10x80 | $10.00 | |
| 22 | 3213178 | Key 10x8x20 | $10.00 | |
| 23 | 2229250 | Key 5x5x15 | $10.00 | |
| 24 | 3209682 | Bearing 6302 | $15.00 | |
| 25 | 2222153 | Bolt M10x100 | Not sold onlineAsk a parts specialist | |
| 26 | 2204569 | Bearing 6211 | $79.00 | |
| 27 | 3213179 | Oil Seal 90x65x10 | $10.00 | |
| 28 | 3213177 | Shear Pin D. 12x40 | $10.00 | |
| 29 | 1227330 | Stop Ring E 15 | $10.00 |
Drawing 3
Steel Drum
| Ref | Part no. | Description | Price | Add to cart |
|---|---|---|---|---|
| 1 | 2250069 | Paddle | $89.00 | |
| 1 | 2250087 | Paddle | $117.00 | |
| 1 | 2250088 | Paddle | $99.00 | |
| 1 | 2250089 | Paddle | $97.00 | |
| 2 | 2222193 | Bolt M12x25 | $10.00 |
Drawing 4
Drum Tipping Reduction Unit
| Ref | Part no. | Description | Price | Add to cart |
|---|---|---|---|---|
| 1 | 3234639 | Gear Box Casing | $95.00 | |
| 2 | 3213893 | Worm Screw M10x110 | $103.00 | |
| 3 | 2204540 | Bearing | $13.00 | |
| 4 | 3213264 | Bevel Pinion Z 20 | $49.00 | |
| 5 | 3237097 | Bearing | $17.00 | |
| 6 | 3213811 | Oil Seal Ring 47x17x7 | $10.00 | |
| 7 | 3234642 | Reduction Unit Cover | $15.00 | |
| 8 | 3208771 | Handwheel Shaft | $29.00 | |
| 9 | 2229259 | Key 6x6x14 | $10.00 | |
| 10 | 2229300 | Key 6x6x20 | $10.00 | |
| 11 | 2204560 | Bearing | $10.00 | |
| 12 | 3232764 | Bearing | $15.00 | |
| 13 | 3234641 | Reduction Unit Cover | $20.00 | |
| 14 | 2227320 | Stop Ring (Seeger) | $10.00 | |
| 15 | 2222465 | Bolt | $10.00 | |
| 16 | 3209987 | Bolt | $10.00 | |
| 17 | 2230350 | Greaser | $10.00 | |
| 18 | 3227876 | Washer | $10.00 | |
| 19 | 3234355 | Stop Ring | $10.00 |
Drawing 5
Single-Phase Electrical Panel
| Ref | Part no. | Description | Price | Add to cart |
|---|---|---|---|---|
| 1 | 3228752 | Junction Box | $144.00 | |
| 1 | 3228754 | Junction Box | Not sold onlineAsk a parts specialist | |
| 1 | 3228753 | Junction Box | $160.00 | |
| 1 | 3228755 | Junction Box | Not sold onlineAsk a parts specialist | |
| 1 | 3234949 | Junction Box | $122.00 | |
| 2 | 3209337 | Switch | $70.00 | |
| 2 | 3210872 | Switch | $80.00 | |
| 2 | 3234950 | Switch | $122.00 | |
| 3 | 3209340 | Transparent Protection Cover | Not sold onlineAsk a parts specialist | |
| 4 | 3210116 | Bolt | $10.00 | |
| 5 | 3229078 | Capacitor 450V 35uF | $31.00 | |
| 5 | 3213013 | Capacitor 250V 120uF | $96.00 | |
| 5 | 3229080 | Capacitor 450V 60uF | $31.00 | |
| 5 | 3210707 | Capacitor 250V 110uF | $164.00 | |
| 5 | 3209504 | Capacitor 450V 50uF | $31.00 | |
| 5 | 3231995 | Capacitor 450V 60uF | Not sold onlineAsk a parts specialist | |
| 5 | 3229797 | Capacitor 250V 100uF | $85.00 | |
| 6 | 3226030 | Electric Cable | $41.00 | |
| 6 | 3228762 | Electric Cable | $122.00 | |
| 7 | 3209542 | USA Plug | $27.00 |
Drawing 6
Three-Phase Electrical Panel
| Ref | Part no. | Description | Price | Add to cart |
|---|---|---|---|---|
| 1 | 3228759 | Junction Box | $184.00 | |
| 1 | 3228760 | Junction Box | $184.00 | |
| 2 | 3228761 | Switch | $94.00 | |
| 3 | 3210116 | Bolt | $10.00 | |
| 4 | 3228763 | Electric Cable | $90.00 |
