IMER Small 50 parts book

Drawing 15 Pressure Gauge Assembly (1107512)

3225890 r11 · 2018-0913 numbered positions · 13 rows · 10 listed online

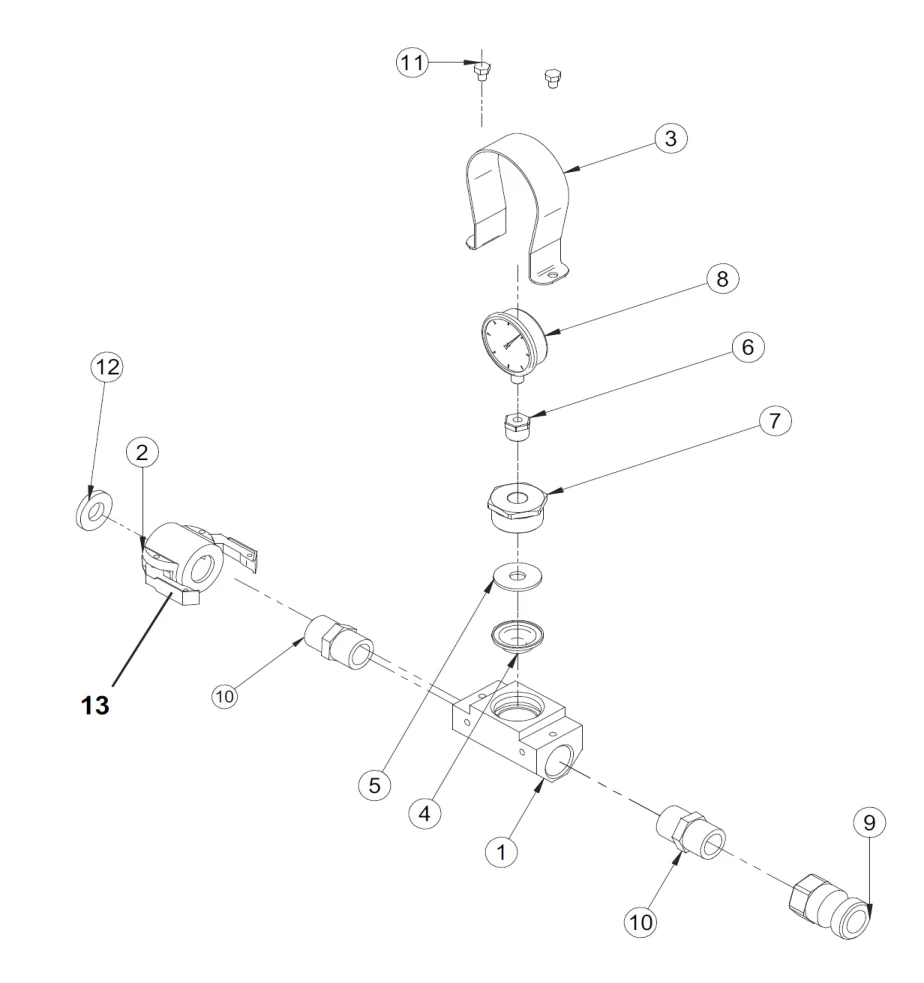

Small 50 Pressure Gauge Assembly (1107512), exploded view with reference numbers — Select a number on the drawing to see its part and add it to your cart. Hover or tap a row to see where the part sits; Enlarge to zoom in.

Select all 10 orderable partsTick several, then add them in one tap

Small 50 — Pressure Gauge Assembly (1107512), parts list with prices
Select	Ref	Part no.	Name	Price	Order
	1	3224762	Pressure Gauge Block3224762	$163.00In stock	Quantity of Pressure Gauge Block
	2	3224709	Cam Coupling D.25 F 1" G F3224709	Not sold online	Not sold online — ask a parts specialist
	3	3223389	Gauge Protection3223389	$39.00In stock	Quantity of Gauge Protection
	4	3223392	Membrane3223392	$29.00In stock	Quantity of Membrane
	5	3225902	Spacer 3 mm3225902	$23.00In stock	Quantity of Spacer 3 mm
	6	3223609	Reducer M 1/2" F 1/4" Brass3223609	$10.00In stock	Quantity of Reducer M 1/2" F 1/4" Brass
	7	3224173	Reducer M 1"-1/2" F 1/2" Brass3224173	$65.00In stock	Quantity of Reducer M 1"-1/2" F 1/2" Brass
	8	3227385	Pressure Gauge 0-40 Bar D63 1/4"3227385	$93.00In stock	Quantity of Pressure Gauge 0-40 Bar D63 1/4"
	9	3223721	Cam Coupling DN25 M 1" G M3223721	Not sold online	Not sold online — ask a parts specialist
	10	3224353	Nipple 1"3224353	$14.00In stock	Quantity of Nipple 1"
	11	2222015	Hex Screw M8x102222015	Not sold online	Not sold online — ask a parts specialist
	12	3224830	Cam Coupling Seal3224830	$10.00In stock	Quantity of Cam Coupling Seal
	13	3224498	Lever DN 25-35-503224498	$16.00In stock	Quantity of Lever DN 25-35-50
