IMER Step-Up 120 parts book

Drawing 9 Gearmotor

3226875 r16 · 2018-098 numbered positions · 15 rows · 11 listed online

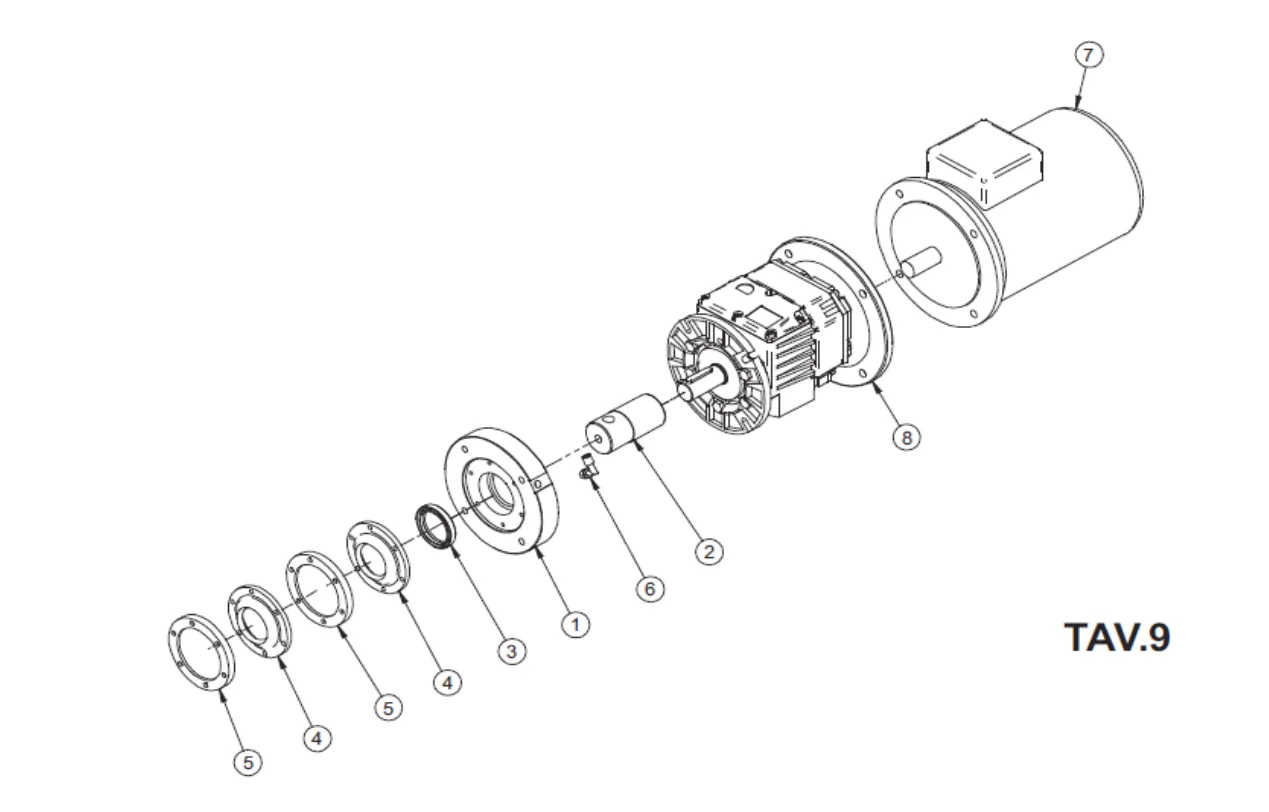

Step-Up 120 Gearmotor, exploded view with reference numbers
Select a number on the drawing to see its part and add it to your cart. Hover or tap a row to see where the part sits; Enlarge to zoom in.
Step-Up 120 — Gearmotor, parts list with prices
SelectRefPart no.NamePriceOrder
1Hopper Motor Flange3226060$440.00In stock
2Motor Shaft Extension3224338$532.00In stock
3Sealing Ring 55x72x103224489$10.00In stock
4Seal3224337$66.00In stock
5Seals Flange3224311$78.00In stock
690° Air Swivel Quick Coupling 1/4" M3224345Not sold onlineNot sold online — ask a parts specialist
7Electric Motor 230V/400V 50Hz3226713MEC 100 2.2kW 4P IP55$1,203.00In stock
7Electric Motor 220V 60Hz Three-Phase3231652T112 4.8/3.6kW 2/4P; Step 1106054-1106055-1106086$2,521.00In stock
7Electric Motor 400V 50Hz32267124.8/3.6kW 2-4 poles$2,192.00In stock
7Electric Motor 230-400V 50/60Hz32341667.5kW 2P 400V 50Hz; Step 120-A 1106054 - 1106094$2,029.00In stock
7Electric Motor 380V 60Hz32319735.5/4kW 2-4P; Step 1106087Not sold onlineNot sold online — ask a parts specialist
8Reduction Gear (Single-Phase Motor 50Hz)32267111106056-1106075-1106077-1106088-1106090-1106092-1106095-1106097-1106098-1106099$2,193.00In stock
8Reduction Gear (Three-Phase Motor 60Hz)32340861106055-1106078-1106079-1106086-1106087Not sold onlineNot sold online — ask a parts specialist
8Reduction Gear (Three-Phase Motor 50Hz and 220V/60Hz TPH)32267101106054-1106057-1106074-1106076-1106089-1106091-1106093-1106096Not sold onlineNot sold online — ask a parts specialist
8Reduction Gear (Three-Phase Motor 50Hz)32278451106094 (Step 120 A)$2,492.00In stock

22 drawings
