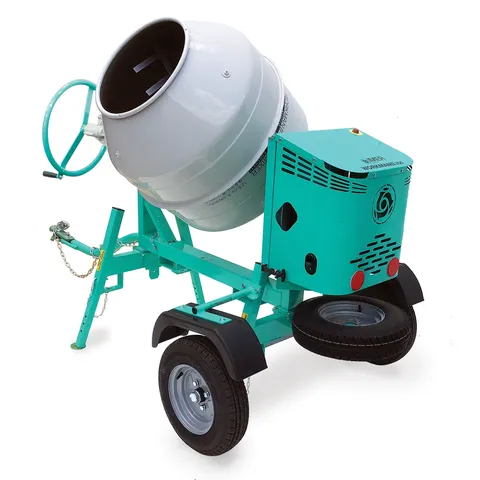

IMER Workman II 250, 9 cu ft, Without MotorIMER Workman II 250, 9 cu ft, Honda GX 160 GasIMER Workman II 250, 9 cu ft, 240V ElectricIMER Workman II 250, 9 cu ft, 120V ElectricGenuine IMER
Drum capacity
9cu ft
Batch output
6cu ft
Weight
525lbs

01Overview

IMER Workman II 250 at a glance

Towable steel-drum barrel mixer for mortar and concrete, mixing up to 10 x 80 lb bags of concrete per batch.

Used for

  • Mortar mixing
  • Concrete mixing
  • Certified IMER Dealer
  • Ships from the USA
  • Direct drive gearbox sealed for life, no external drive gears
  • Torsion bar suspension for easy towing
  • Box steel frame
  • Posi-lock auto locks/unlocks when activated
  • Forklift pockets, tow hitch ball adapter and spare tire included
  • Impact-resistant fenders

02Shop parts

Workman II 250 parts

The Workman II 250 parts book is not online yet. Send us the part number from your parts book or a photo of the serial plate and we find the part: +1 (307) 301-7723.

03Specifications

Technical data

From the IMER product sheet

Capacity

Drum capacity
9 cu ft
Batch output
6 cu ft

Power

Gas motor
Honda GX 160, 5.5 hp
Electric motor
120V / 240V 1.5 hp

Dimensions

Drum diameter
29-1/2 in
Discharge outlet height
27-3/4 in
Width (palletized)
50 (50) in
Length (palletized)
72 (80) in
Height (palletized)
55 (68) in

Weight

Weight
525 lbs

Performance

Noise level
<79 dB

Model numbers

Gas / 120V / 240V / less power
1105850 / 1105842 / 1105843 / 1105851

04Manuals

Parts book & manuals

Need the operator or parts manual? Ask us and we send the right revision for your serial number.

Answers

Questions about the Workman II 250

All answers

05Quote

Request a formal quote

Tell us the quantity, the delivery ZIP and whether the site has a loading dock or forklift. We reply with price, freight and lead time.
Request a quoteCall +1 (307) 301-7723
