IMER Mix 750 parts book

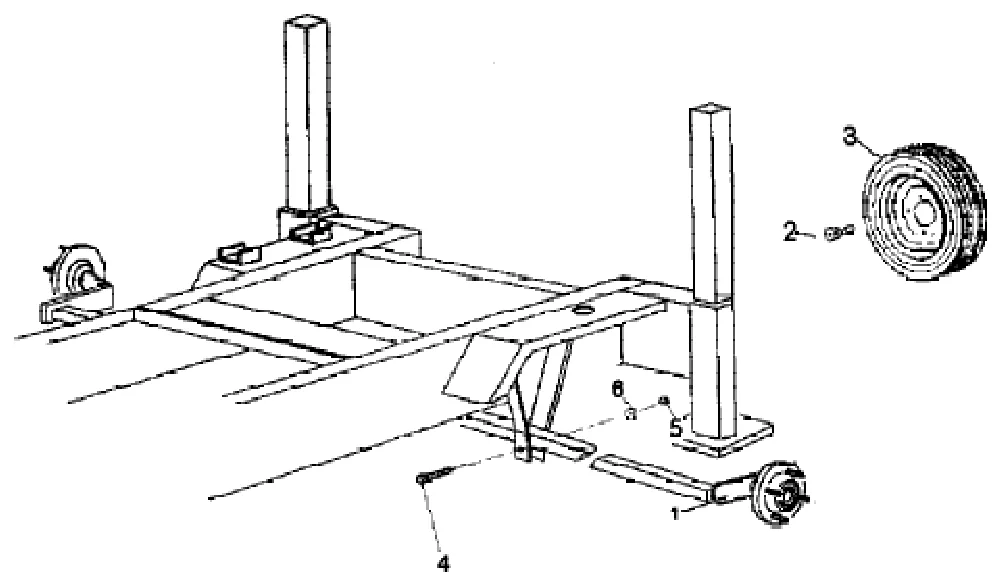

Drawing 3 Wheel And Suspension Assembly

3211212 r03 · 2018-096 numbered positions · 6 rows · 6 listed online

Select all 6 orderable partsTick several, then add them in one tap

Mix 750 — Wheel and suspension assembly, parts list with prices
Ref	Part no.	Name	Price	Order
1	3211393	Axle3211393	$932.00In stock	Quantity of Axle
2	3210607	Bolt3210607	$10.00In stock	Quantity of Bolt
3	3296035	Wheel Complete3296035	$341.00In stock	Quantity of Wheel Complete
4	2222142	Bolt22221425737 M12X100 Z	$10.00In stock	Quantity of Bolt
5	3207392	Nut3207392METALBLOC M12	$10.00In stock	Quantity of Nut
6	2224380	Washer22243806593 D.12X25 Z	$10.00In stock	Quantity of Washer
