IMER Mix 360 parts book

Drawing 3 Towing Assembly

3211378 r02 · 2018-0912 numbered positions · 12 rows · 10 listed online

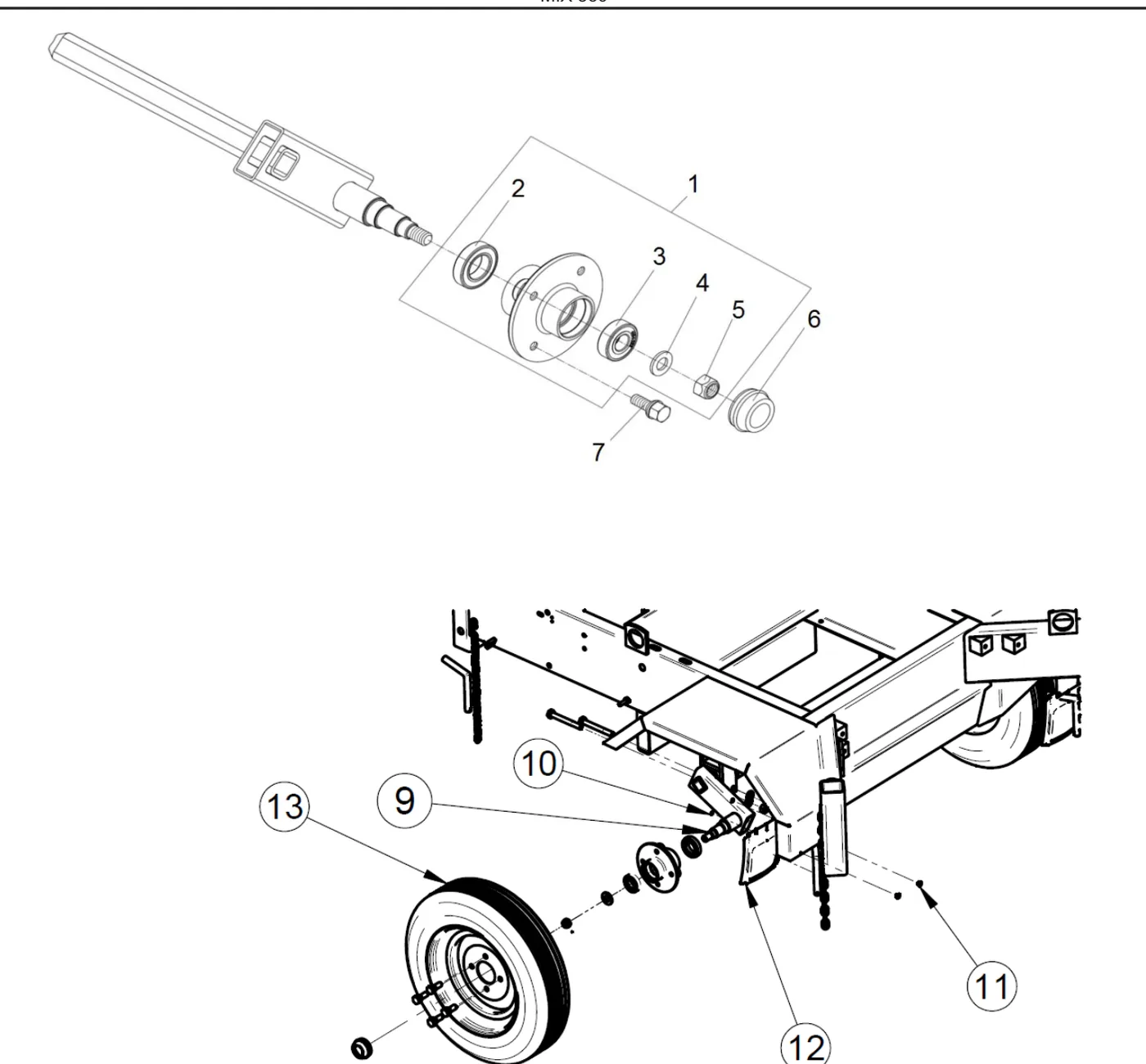

Mix 360 Towing Assembly, exploded view with reference numbers — Select a number on the drawing to see its part and add it to your cart. Hover or tap a row to see where the part sits; Enlarge to zoom in.

Select all 11 orderable partsTick several, then add them in one tap

Mix 360 — Towing Assembly, parts list with prices
Select	Ref	Part no.	Name	Price	Order
	1	3236429	Hub3236429	$250.00In stock	Quantity of Hub
	2	3210629	Bearing3210629	$54.00In stock	Quantity of Bearing
	3	2204560	Bearing2204560	$10.00In stock	Quantity of Bearing
	4	2224640	Washer 16x33x3 Z2224640	$10.00In stock	Quantity of Washer 16x33x3 Z
	5	3236427	Self-Locking Nut3236427	$14.00In stock	Quantity of Self-Locking Nut
	6	3236428	Cover3236428	$28.00In stock	Quantity of Cover
	7	3234146	Bolt3234146	$27.00In stock	Quantity of Bolt
	9	3236410	Axle3236410	$618.00In stock	Quantity of Axle
	10	2224532	Washer 4x8 Z2224532	Not sold online	Not sold online — ask a parts specialist
	11	3236412	Rivet3236412Same number printed for Splash Guard (ref 12)	$44.00In stock	Quantity of Rivet
	12	3236412	Splash Guard3236412	$44.00In stock	Quantity of Splash Guard
	13	2211407	Wheel2211407	$253.00In stock	Quantity of Wheel
