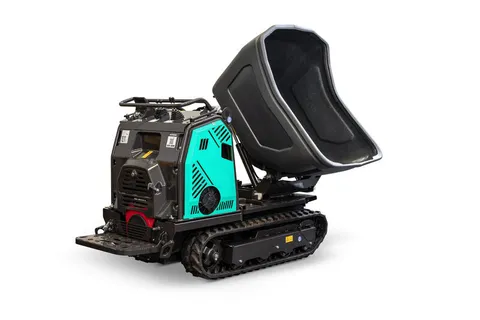

IMER Tracker 1624 at a glance

Gas-powered tracked mini-dumper (Carry 110) with a 16 cu ft poly tub and 2,400 lb operating load, powered by a Honda iGX 800 engine.

Used for

Driveways
Patios
Concrete contracting
Rough terrain

Certified IMER Dealer
Ships from the USA

Honda iGX 800 electronically controlled gas engine with 3-level speed control, auto idle and electronic start
CAN Bus digital touch screen dashboard showing hours, battery voltage, fuel consumption, engine load and diagnostics
Poly tub with low discharge height and design to minimize spillage
Heavy duty oil cooler for all-day use
Double rubber shock-mounted operator platform with hydraulic joystick speed control
Swivel bucket model available (Model # 5110002)

02Shop parts

Tracker 1624 parts

The Tracker 1624 parts book is not online yet. Send us the part number from your parts book or a photo of the serial plate and we find the part: +1 (307) 301-7723.

03Specifications

Technical data

From the IMER product sheet

Weight

Machine weight: 1,521 lbs

Capacity

Operating load: 2,400 lbs
Payload capacity (struck/heaped): 16 cu ft / 19 cu ft

Performance

Speed (forward/reverse): 6 mph / 2.5 mph
Max allowed slope (empty): 20° - 36%
Max allowed slope (loaded): 11° - 20% (variable based on configuration)
Noise level: <79 dB

Dimensions

Ground clearance: 5.5 in
Length: 75.5 in
Height: 52 in
Width: 35 3/8 in

Power

Engine: Honda iGX 800, 25 HP, fuel injected
Start: Electric

04Manuals

Parts book & manuals

Need the operator or parts manual? Ask us and we send the right revision for your serial number.

05Quote

Request a formal quote

Tell us the quantity, the delivery ZIP and whether the site has a loading dock or forklift. We reply with price, freight and lead time.

Request a quote Call +1 (307) 301-7723
