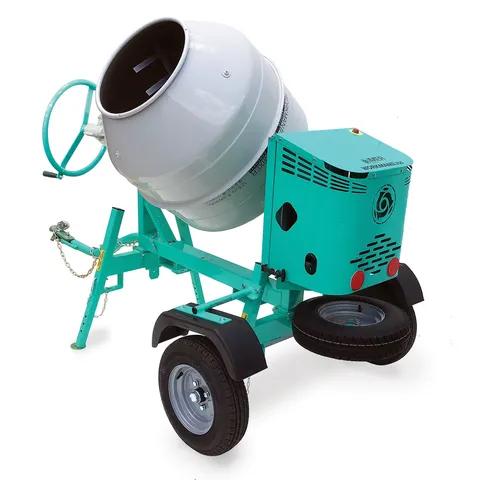

IMER Workman II 350, 12 cu ft, Without MotorIMER Workman II 350, 12 cu ftIMER Workman II 350, 12 cu ft, 240V ElectricIMER Workman II 350, 12 cu ft, 120V ElectricGenuine IMER
Drum capacity
12cu ft
Batch output
9.5cu ft
Weight
650lbs

01Overview

IMER Workman II 350 at a glance

Towable steel-drum barrel mixer for mortar and concrete, mixing up to 15 x 80 lb bags of concrete per batch.

Used for

  • Mortar mixing
  • Concrete mixing
  • Certified IMER Dealer
  • Ships from the USA
  • Direct drive gearbox sealed for life, no external drive gears
  • Torsion bar suspension for easy towing
  • Box steel frame
  • Posi-lock auto locks/unlocks when activated
  • Forklift pockets, tow hitch ball adapter and spare tire included
  • Impact-resistant fenders

02Shop parts

Workman II 350 parts

The Workman II 350 parts book is not online yet. Send us the part number from your parts book or a photo of the serial plate and we find the part: +1 (307) 301-7723.

03Specifications

Technical data

From the IMER product sheet

Capacity

Drum capacity
12 cu ft
Batch output
9.5 cu ft

Power

Gas motor
Honda GX 160, 5.5 hp
Electric motor
120V / 240V 1.5 hp

Dimensions

Drum diameter
34-3/4 in
Discharge outlet height
26-1/2 in
Width (palletized)
50 (50) in
Length (palletized)
76-1/2 (86) in
Height (palletized)
56 (72) in

Weight

Weight
650 lbs

Performance

Noise level
<79 dB

Model numbers

Gas / 120V / 240V / less power
1105855 / 1105862 / 1105863 / 1105856

04Manuals

Parts book & manuals

Need the operator or parts manual? Ask us and we send the right revision for your serial number.

Answers

Questions about the Workman II 350

All answers

05Quote

Request a formal quote

Tell us the quantity, the delivery ZIP and whether the site has a loading dock or forklift. We reply with price, freight and lead time.
Request a quoteCall +1 (307) 301-7723
