IMER Workman II 350 Gas Towable Barrel Mixer, 12 cu ft – IMER part 1105855Free shipping

01About

About this machine

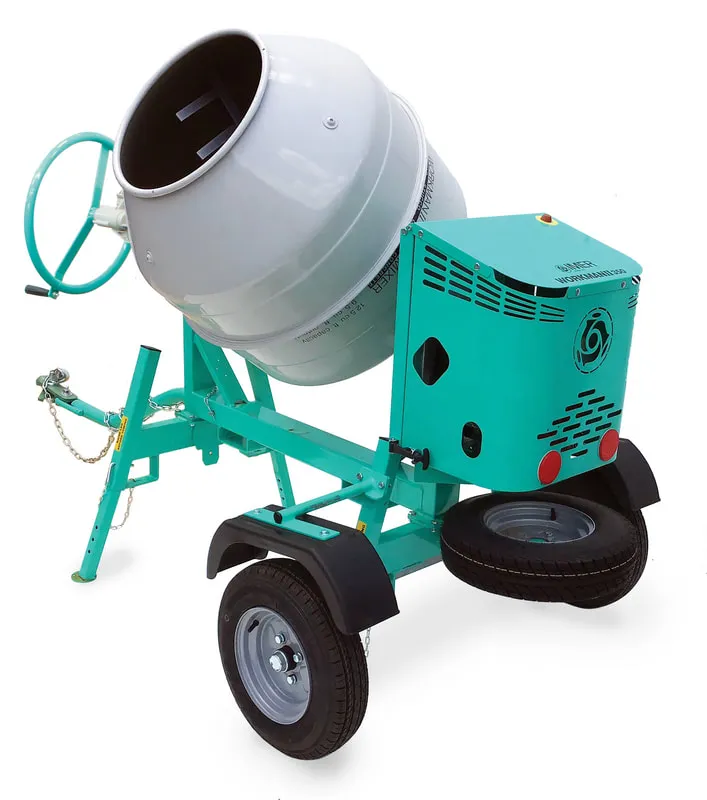

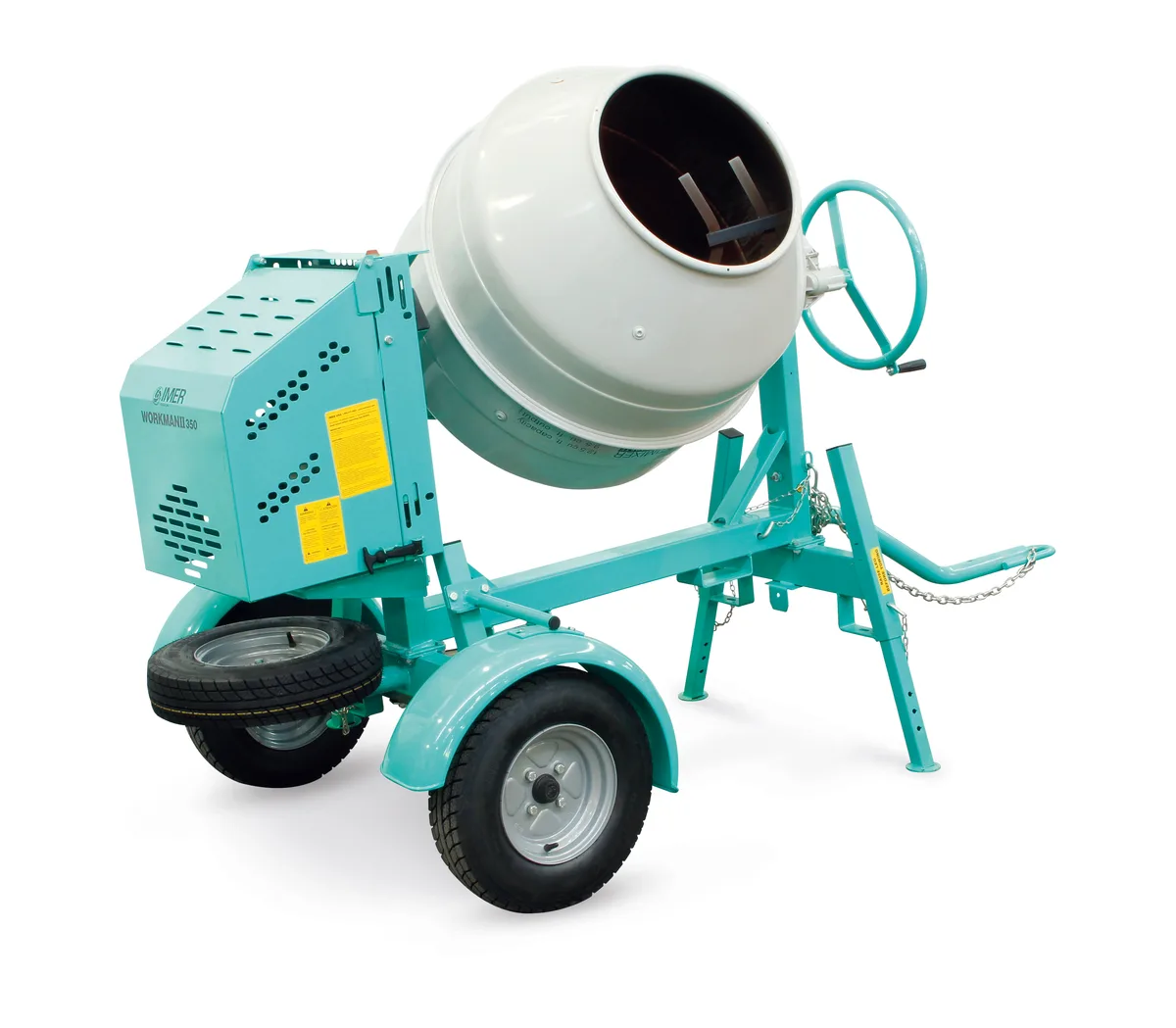

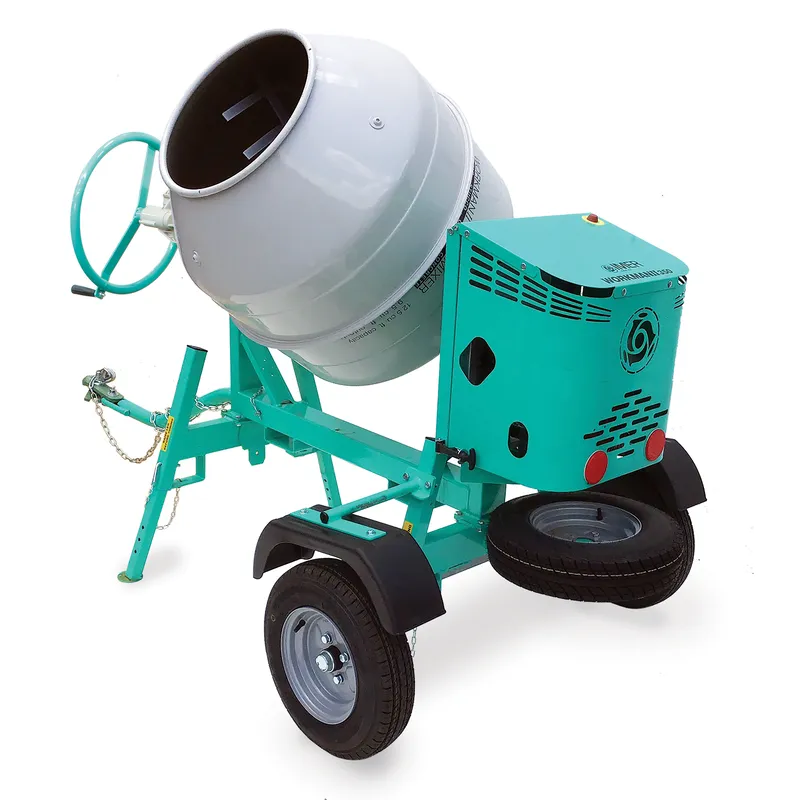

The IMER Workman II 350, model 1105855, is a towable steel-drum barrel mixer powered by a 5.5 hp Honda GX 160 gas engine. It mixes mortar, stucco, grout and concrete, up to fifteen 80 lb bags of concrete per batch.

The drum holds 12 cu ft with a batch output of 9.5 cu ft. Drum diameter is 34-3/4 in and the discharge outlet sits at 26-1/2 in. The direct drive gearbox is sealed for life and has no external drive gears. The Posi-lock system locks and unlocks automatically when activated.

For towing between job sites the mixer has pneumatic wheels, torsion bar suspension, a box steel frame and impact-resistant fenders. Forklift pockets, a tow hitch ball adapter and a spare tire are included. The machine weighs 650 lbs and measures 50 in wide, 76-1/2 in long and 56 in high. Noise level is under 79 dB.

The Workman II 350 is also offered with a 120V or 240V 1.5 hp electric motor, or without a motor.

02Versions

4 versions of the IMER Workman II 350

Each has its own page, price and part number
  • 1105855

    12 cu ft

    This version

    Free shipping

    $4,349

    In stock

IMER Workman II 350: all versions, specs and parts

03Specifications

IMER Workman II 350 technical data

From the IMER product sheet

Capacity

Drum capacity
12 cu ft
Batch output
9.5 cu ft

Power

Gas motor
Honda GX 160, 5.5 hp
Electric motor
120V / 240V 1.5 hp

Dimensions

Drum diameter
34-3/4 in
Discharge outlet height
26-1/2 in
Width (palletized)
50 (50) in
Length (palletized)
76-1/2 (86) in
Height (palletized)
56 (72) in

Weight

Weight
650 lbs

Performance

Noise level
<79 dB

Model numbers

Gas / 120V / 240V / less power
1105855 / 1105862 / 1105863 / 1105856

04Shipping

Shipping and lead time

Ships from the USA
Lead time
Usually ships in 2–3 weeks. IMER machines come from Italy and some are assembled to order or back-ordered, so we confirm the ship date after you order.
Delivery
LTL freight, 7–10 business days in transit. Free to commercial addresses in the contiguous US; residential and/or liftgate delivery adds one flat $75. Ships to the USA and Canada (not to Quebec). Shipping conditions
Returns
30-day returns. Return policy
