IMER Step-Up 120 parts book

Drawing 2 Street Version With Mixer

3226875 r16 · 2018-0939 numbered positions · 39 rows · 25 listed online

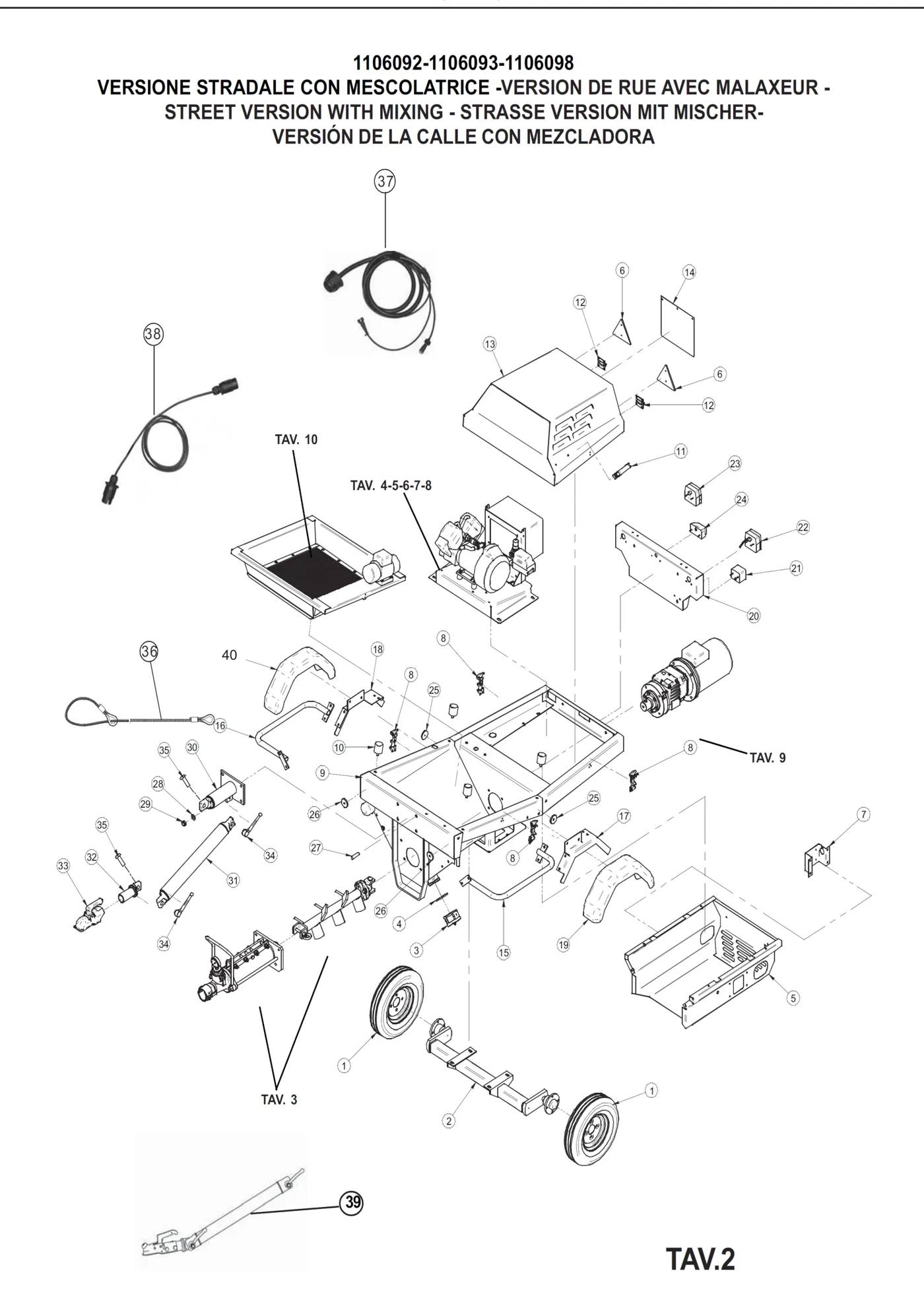

Step-Up 120 Street Version With Mixer, exploded view with reference numbers — Select a number on the drawing to see its part and add it to your cart. Hover or tap a row to see where the part sits; Enlarge to zoom in.

Select all 26 orderable partsTick several, then add them in one tap

Step-Up 120 — Street Version With Mixer, parts list with prices
Select	Ref	Part no.	Name	Price	Order
	1	3226275	Wheel3226275PN.400/8 rim 2.50-8	$191.00In stock	Quantity of Wheel
	2	3227733	Complete Axle3227733700 kg	Not sold online	Not sold online — ask a parts specialist
	3	3225751	Kamlock Plug F.3225751DN65	$98.00In stock	Quantity of Kamlock Plug F.
	4	3225891	Seal Cam Coupling DN653225891	$14.00In stock	Quantity of Seal Cam Coupling DN65
	5	3226272	Lower Casing3226272	Not sold online	Not sold online — ask a parts specialist
	6	3226720	Triangular Red Reflector3226720	$10.00In stock	Quantity of Triangular Red Reflector
	7	3226813	Vibrating Screen Electrical Panel Support3226813	$69.00In stock	Quantity of Vibrating Screen Electrical Panel Support
	8	3225776	Closure3225776	Not sold online	Not sold online — ask a parts specialist
	9	3225964	Frame3225964	Not sold online	Not sold online — ask a parts specialist
	10	3225826	Vibration Damper3225826GN 17 0319	$35.00In stock	Quantity of Vibration Damper
	11	3204888	Handle3204888	$11.00In stock	Quantity of Handle
	12	3224625	Hinge For Vans, Galvanized3224625	$93.00In stock	Quantity of Hinge For Vans, Galvanized
	13	3226310	Door3226310	Not sold online	Not sold online — ask a parts specialist
	14	3226811	Electrical Panel Protection3226811	$40.00In stock	Quantity of Electrical Panel Protection
	15	3233312	Side Impact Bar LH3233312From serial F009441725	$213.00In stock	Quantity of Side Impact Bar LH
	16	3233313	Side Impact Bar RH3233313From serial F009441725	$213.00In stock	Quantity of Side Impact Bar RH
	17	3233355	Mudguard Support LH3233355From serial F009441725	Not sold online	Not sold online — ask a parts specialist
	18	3233356	Mudguard Support RH3233356From serial F009441725	Not sold online	Not sold online — ask a parts specialist
	19	3236391	Mudguard LH3236391	$66.00In stock	Quantity of Mudguard LH
	20	3233374	Rear Light Bar3233374From serial F009441725	Not sold online	Not sold online — ask a parts specialist
	21	3226719	Antifog Light With Cable And Connector3226719Aspock K37.6603.037	$61.00In stock	Quantity of Antifog Light With Cable And Connector
	22	3233397	Light LH3233397From serial F009441725	$14.00In stock	Quantity of Light LH
	23	3233397	Light RH3233397From serial F009441725; same code printed as ref 22	$14.00In stock	Quantity of Light RH
	25	3224855	Yellow Reflector3224855D.60	$10.00In stock	Quantity of Yellow Reflector
	26	3224854	White Reflector3224854D.60	Not sold online	Not sold online — ask a parts specialist
	27	3225828	Stud Bolt M16x403225828	$21.00In stock	Quantity of Stud Bolt M16x40
	28	2224640	Plain Washer M162224640UNI6593 33x3	$10.00In stock	Quantity of Plain Washer M16
	29	3223930	Self-Locking Nut M163223930DIN985 class 8	Not sold online	Not sold online — ask a parts specialist
	30	3233094	Drawbar Primary Connection3233094From serial F009441725	$576.00In stock	Quantity of Drawbar Primary Connection
	31	3225923	Drawbar Middle Arm3225923	Not sold online	Not sold online — ask a parts specialist
	32	3225922	Towing Head Connection3225922	$581.00In stock	Quantity of Towing Head Connection
	33	3209959	Towing Head3209959	$173.00In stock	Quantity of Towing Head
	34	3225924	Drawbar Adjustment Lever3225924	Not sold online	Not sold online — ask a parts specialist
	35	3227807	Locking Pin3227807	$234.00In stock	Quantity of Locking Pin
	36	3225284	Safety Cord3225284	Not sold online	Not sold online — ask a parts specialist
	37	3233398	Lights Wiring3233398From serial F009441725	$134.00In stock	Quantity of Lights Wiring
	38	3226172	Electric Extension3226172	$115.00In stock	Quantity of Electric Extension
	39	3233083	Drawbar + Towing Head Assembly3233083From serial F009441725	$1,415.00In stock	Quantity of Drawbar + Towing Head Assembly
	40	3236390	Mudguard RH3236390	$66.00In stock	Quantity of Mudguard RH
