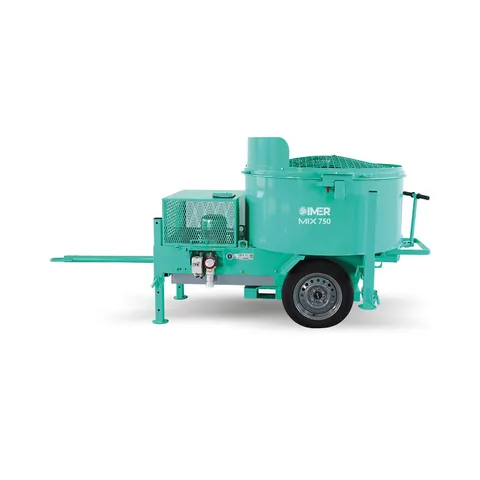

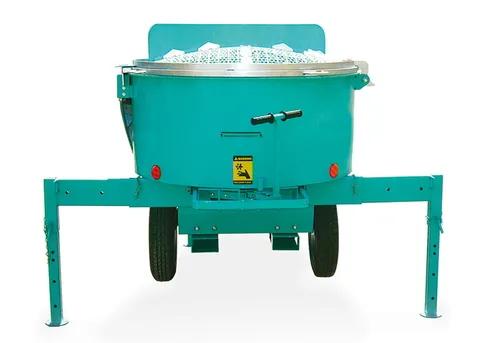

IMER Mix 750, No motorIMER Mix 750, 480V, 7.5 HP, 3 PhaseIMER Mix 750, 208V, 7.5 HP, 3 PhaseIMER Mix 750, 240V, 5 HP, Single-PhaseIMER Mix 750, Gas, 13 HP Honda GXIMER Mix 750, 7.5 HP 600V 3-PhaseGenuine IMER
Drum capacity
22cu ft
Batch output
18cu ft
Weight
1,588lbs

01Overview

IMER Mix 750 at a glance

The Mix 750 Mortarman is a towable vertical shaft paddle mixer that produces 18 cu ft of mortar per batch every three to four minutes.

Used for

  • Precast mixing operations
  • Bridge and highway jobs
  • Refractory mud
  • Stiff, dry materials
  • Certified IMER Dealer
  • Ships from the USA
  • Honda gasoline, single-phase or 3-phase electric motor options
  • Auto shutdown hinged safety grate with integrated bag breaker
  • Forklift pockets for easy placement
  • Easy dump handle to discharge load
  • Extra wide stability legs slide outward and adjust up or down for discharge height
  • Noise level <79 dB

02Shop parts

Shop Mix 750 parts by assembly

194 part numbers · 7 drawings

Popular for the Mix 750

Ranked by orders, how often the part wears out and availability.

  • Paddle Plate for IMER Mix 750 – genuine IMER part 3211222
    3211222

    Paddle plate

    $34.00

    In stock

  • Gearbox for IMER Mix 750 (IMER parts book picture)
    3211258

    Gearbox

    $6,278.00

    In stock

  • 3211221

    Paddle rubber

    $32.00

    In stock

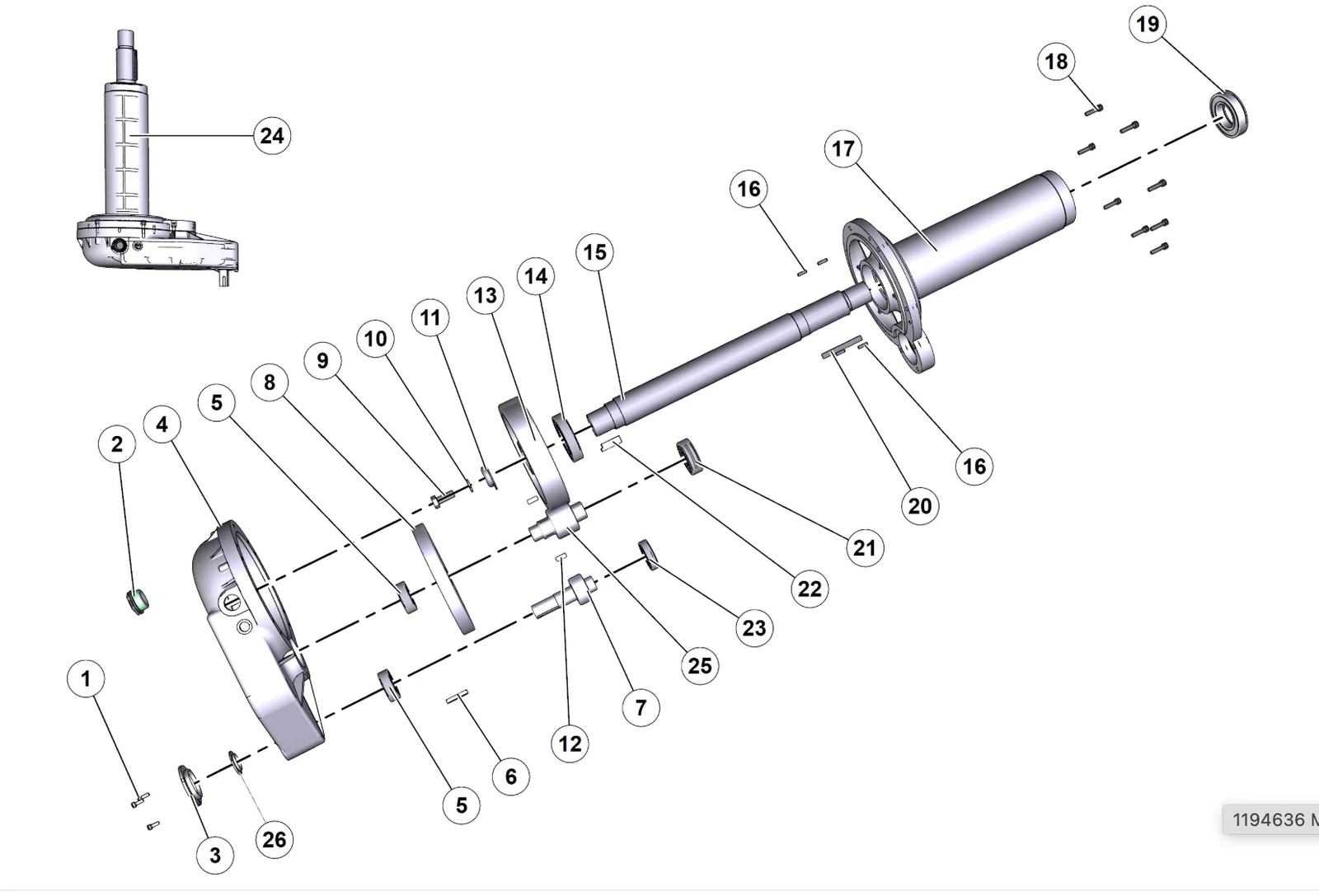

Or pick the assembly. Open a drawing, tap a numbered balloon and add the part to your cart.

03Specifications

Technical data

From the IMER product sheet

Capacity

Drum capacity
22 cu ft
Batch output
18 cu ft
Drum diameter
52 in
Maximum aggregate size
3/8 in

Dimensions

Discharge outlet height max/min
29 in / 23 in
Pneumatic wheels
22 in
Width (palletized)
63 in (64 in)
Length (palletized)
90 in (86 in)
Height (palletized)
62 in (64 in)

Weight

Weight
1,588 lbs

Performance

Noise level
<79 dB

04Manuals

Parts book & manuals

Guides

Guides for the Mix 750

All guides

Answers

Questions about the Mix 750

All answers

05Quote

Request a formal quote

Tell us the quantity, the delivery ZIP and whether the site has a loading dock or forklift. We reply with price, freight and lead time.
