IMER Masonry 350 Smart CutGenuine IMER
Blade diameter
14in
Motor rating
2hp
Weight (boxed), includes stand
175lbs

01Overview

IMER Masonry 350 Smart Cut at a glance

The Smart Cut 350 is a 14 in brick and block saw for cutting bricks, blocks, paving stones and tile, with cuts up to 30 in long and 4.75 in deep.

Used for

  • Bricks
  • Blocks
  • Paving stones
  • Tile
  • Certified IMER Dealer
  • Ships from the USA
  • 2 HP, 120V high-torque motor
  • 14 in general purpose blade and 180° protractor included
  • Integrated spring-loaded folding stand with wheel kit
  • Cutting tray rolls on ceramic nylon rollers with sealed bearings; rollers top and bottom keep tray from lifting
  • Single arm design allows larger cuts
  • Sound-absorbing lined blade guard removable with two thumb screws; optional 45° miter accessory (Item # 1187640)

02Shop parts

Shop Masonry 350 Smart Cut parts by assembly

116 part numbers · 5 drawings

Popular for the Masonry 350 Smart Cut

Ranked by orders, how often the part wears out and availability.

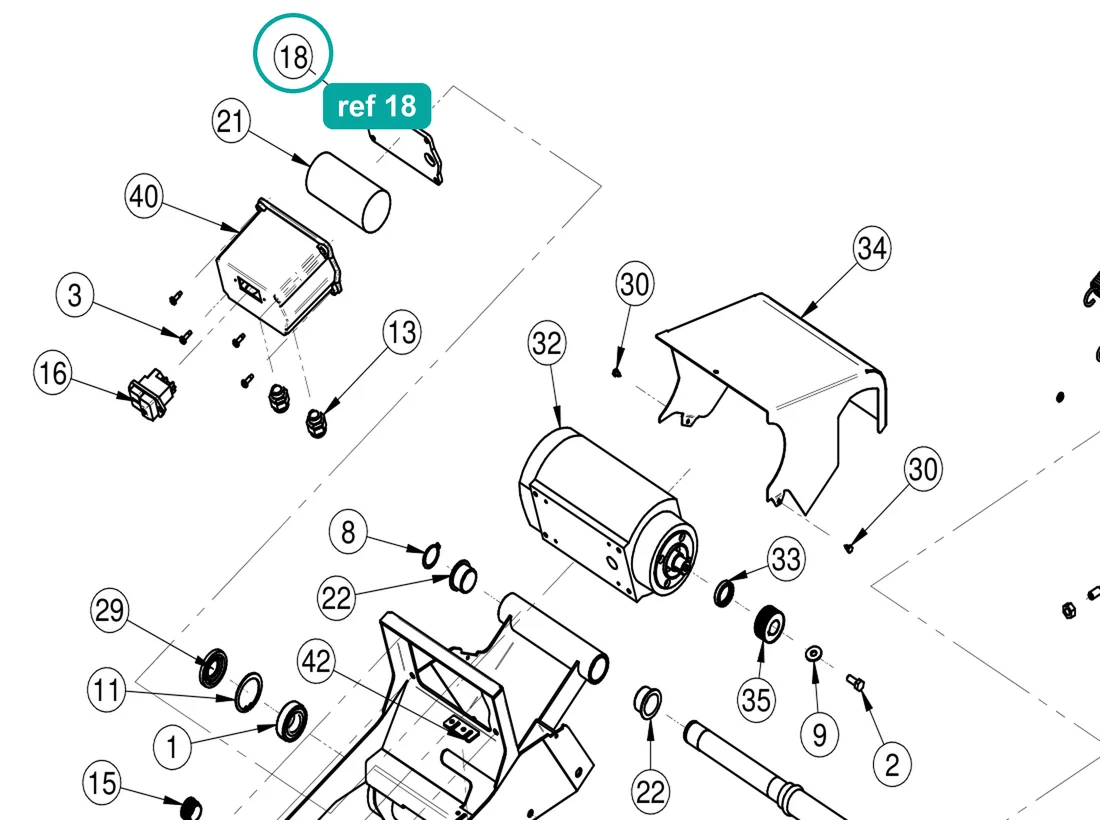

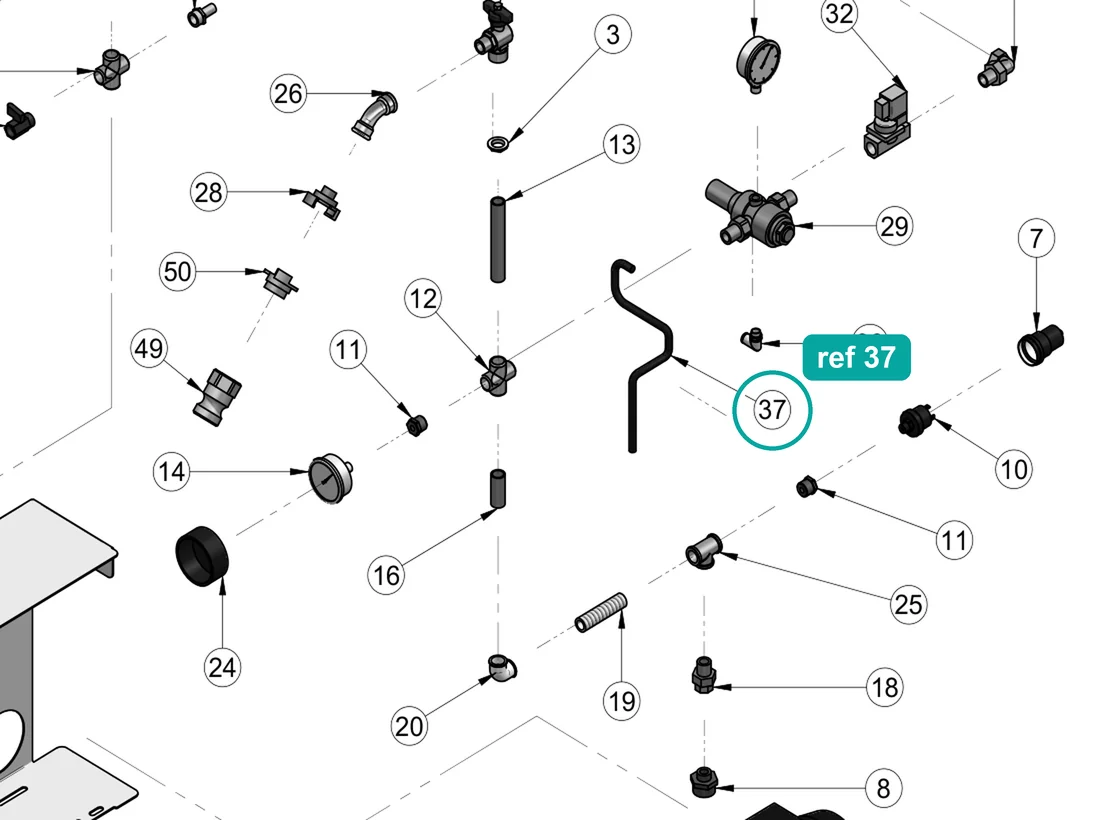

Or pick the assembly. Open a drawing, tap a numbered balloon and add the part to your cart.

03Specifications

Technical data

From the IMER product sheet

General

Model #
1188975

Capacity

Blade diameter
14 in
Blade shaft diameter
1 in
Max. cutting length (w/ plunge cut)
26 in (30 in)
Max. cutting depth
4.75 in
Water pan capacity
10 gal

Power

Motor rating
2 hp, 120V, 15 amps

Performance

Blade speed
2850 rpm
Water pump flow
3 gpm
Noise level
<79 dB

Weight

Weight (boxed), includes stand
175 lbs (215 lbs)

Dimensions

Operating length (boxed)
47 in (48 in)
Operating height (boxed)
51 in (55 in)
Operating width (boxed)
28.5 in (29 in)

04Manuals

Parts book & manuals

Troubleshooting

Masonry 350 Smart Cut not working right?

3 problems from the IMER manual, with the causes, what to do and the parts for each fix.

Open the Masonry 350 Smart Cut troubleshooting guide

Answers

Questions about the Masonry 350 Smart Cut

All answers

05Quote

Request a formal quote

Tell us the quantity, the delivery ZIP and whether the site has a loading dock or forklift. We reply with price, freight and lead time.
