IMER Koine 4
Genuine IMER
Hopper capacity
110l
Weight, pump gearmotor
49kg

01Overview

IMER Koine 4 at a glance

The IMER Koine 4 is a pump sold by IMER Parts USA, a certified IMER dealer. Its IMER parts book lists 292 part numbers across 15 exploded drawings. Machines usually ship in 2–3 weeks (from IMER in Italy; the date is confirmed after ordering) by LTL freight, and orders over $1,500 ship free to commercial addresses in the contiguous United States. Ask a parts specialist for availability, options and freight to your site.

  • Certified IMER Dealer
  • Ships from the USA

02Shop parts

Shop Koine 4 parts by assembly

292 part numbers · 15 drawings

Popular for the Koine 4

Ranked by orders, how often the part wears out and availability.

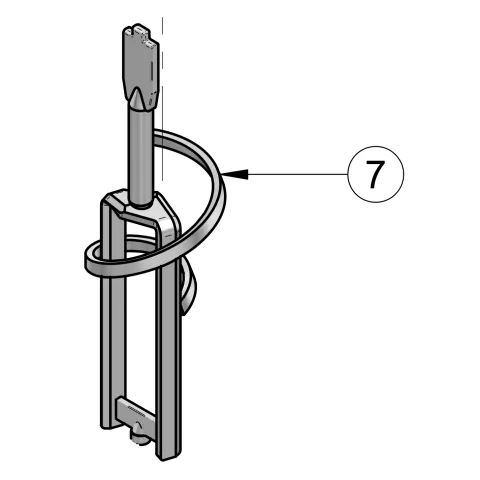

Or pick the assembly. Open a drawing, tap a numbered balloon and add the part to your cart.

03Specifications

Technical data

From the IMER product sheet

Other

Machine codes
1106005 (400V/50Hz TPH), 1106320 (400V/50Hz TPH-HF), 1106003 (220V/60Hz TPH), 1106004 (220V/60Hz TPH AUTOLIV.), 1106112 (400V/60Hz TPH)
Water connection
3/4"
Noise emission level, LpA at 1 m
<80 dB(A)
Noise emission level, LWA
94 dB(A)

Electrical

Main power supply
400 V / 50 Hz; 220 V / 60 Hz; 400 V / 60 Hz (variants)
Controls power supply
24 V
Electrical connection, 3-phase socket (400 V / 50 Hz)
400 V, fuses 3x32 A, cable 4x4 mm (up to 40 m)
Electrical connection, 3-phase socket (220 V / 60 Hz)
220 V, fuses 3x32 A, cable 4x4 mm (up to 40 m)
Electrical connection, 3-phase socket (400 V / 60 Hz)
400 V, fuses 3x32 A, cable 4x4 mm (up to 40 m)
Generator set (minimum)
25 kVA
Maximum power (400 V / 50 Hz)
7.45 kW (7.55 kW HF version)
Maximum power (220 V / 60 Hz)
7.45 kW (7.55 kW autoliv. version)
Maximum power (400 V / 60 Hz)
7.45 kW

Motor

Mixer gearmotor (400 V / 50 Hz)
5.5 kW, 11 A, 396 rpm
Mixer gearmotor (220 V / 60 Hz)
5.5 kW, 10.8 A, 476 rpm
Mixer gearmotor (400 V / 60 Hz)
5.5 kW, 10.8 A, 476 rpm
Cell wheel gearmotor (400 V / 50 Hz)
0.75 kW, 2.05 A, 30 rpm
Cell wheel gearmotor (220 V / 60 Hz)
0.75 kW, 2.05 A, 36 rpm
Cell wheel gearmotor (400 V / 60 Hz)
0.75 kW, 2.05 A, 36 rpm
Water pump (400 V / 50 Hz)
0.45 kW (0.55 kW HF version), 1.6 A
Water pump (220 V / 60 Hz)
0.45 kW (0.55 kW autoliv. version), 1.6 A
Water pump (400 V / 60 Hz)
0.45 kW, 1.6 A
Compressor IM 250 (all variants)
0.75 kW, 1.9 A, 250 Nl/min

Pump

Water pressure switch setting (min/max)
1.9/2.1 bar
Pressure stabiliser setting
1.9 bar
Mixer gearmotor pressure switch setting (min/max)
0.9/1.2 bar
Compressor pressure switch setting (min/max)
2/3 bar
Compressor safety valve setting
4 bar

Performance

Material flow rate with pump D 6-3 (approx.)
22 l/min
Maximum pressure
40 bar
Max pumping distance, 25 mm hose
25 m
Max pumping distance, 35 mm hose
50 m

Dimensions

Dimensions (X x Y x Z)
1560 x 730 x 1190 mm
Loading height
900 mm

Capacity

Hopper capacity
110 l

Weight

Weight, pump gearmotor
49 kg
Weight, mixing chamber
28.5 kg
Weight, machine body
162.5 kg
Weight, compressor
23 kg
Weight, total
263 kg
