IMER Koine 35Genuine IMER
Hopper capacity
110l
Weight, pump gearmotor
41kg

01Overview

IMER Koine 35 at a glance

The IMER Koine 35 is a pump sold by IMER Parts USA, a certified IMER dealer. Its IMER parts book lists 66 part numbers across 1 exploded drawing. Machines usually ship in 2–3 weeks (from IMER in Italy; the date is confirmed after ordering) by LTL freight, and orders over $1,500 ship free to commercial addresses in the contiguous United States. Ask a parts specialist for availability, options and freight to your site.

  • Certified IMER Dealer
  • Ships from the USA

02Shop parts

Shop Koine 35 parts by assembly

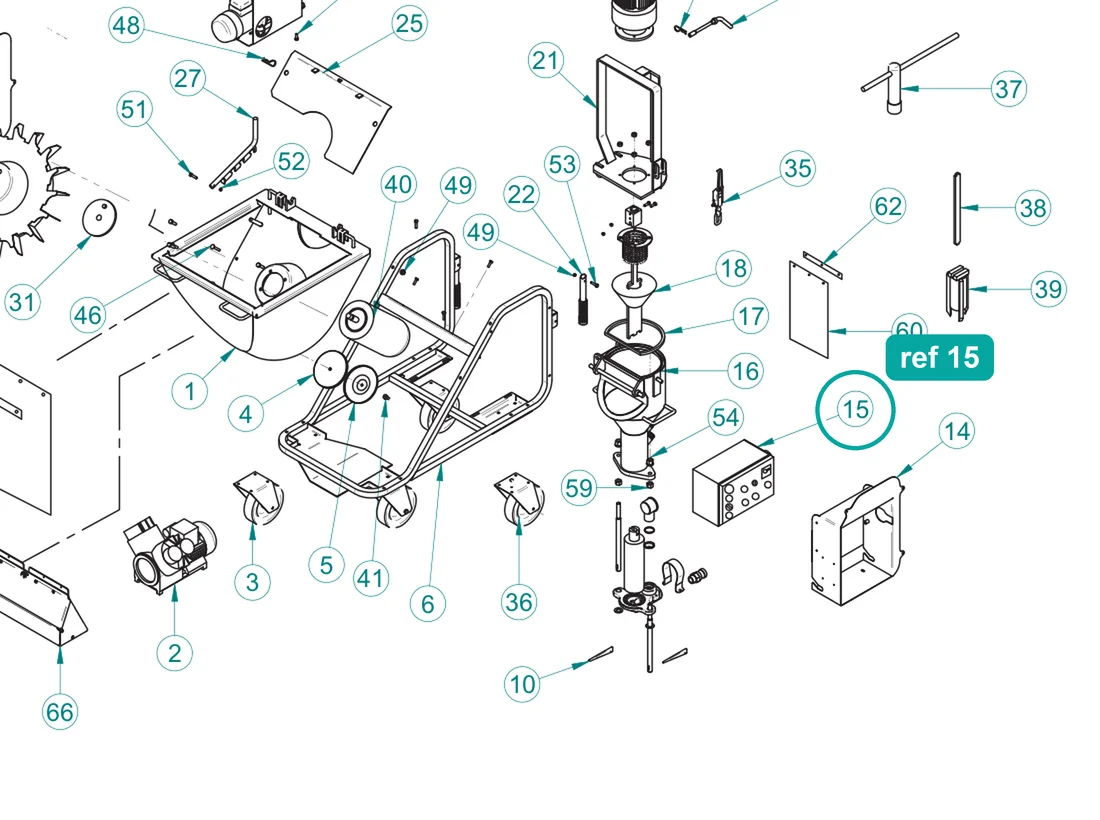

66 part numbers · 1 drawings

Popular for the Koine 35

Ranked by orders, how often the part wears out and availability.

Or pick the assembly. Open a drawing, tap a numbered balloon and add the part to your cart.

03Specifications

Technical data

From the IMER product sheet

Other

Machine code
1106048
Water connection
3/4"
Noise emission level, LpA at 1 m
<76 dB(A)
Noise emission level, LWA
90 dB(A)

Electrical

Main power supply
220 V / 60 Hz
Controls power supply
24 V
Electrical connection, single-phase connector
220 V, fuses 32 A, cable 3x2.5 mmq (up to 40 m)
Generator set (minimum)
12 kVA
Maximum power
3.77 kW

Motor

Mixer gearmotor
2.2 kW, 9.9 A, 320 rpm
Cell wheel gearmotor
0.37 kW, 2 A, max 16 rpm
Water pump
0.45 kW, 3.3 A
Compressor IM 250
0.75 kW, 5.6 A, 250 Nl/min

Pump

Water pressure switch setting (min/max)
1.9/2.1 bar
Pressure stabiliser setting
1.9 bar
Mixer gearmotor pressure switch setting (min/max)
0.9/1.2 bar
Compressor pressure switch setting (min/max)
1.8-2.8 bar
Compressor safety valve setting
4 bar

Performance

Material flow rate with pump Ecostar (approx.)
8-11-15 l/min
Maximum pressure
20 bar
Max pumping distance, 25 mm hose
15 m
Max pumping distance, 35 mm hose
30 m

Dimensions

Dimensions (X x Y x Z)
1560 x 730 x 1190 mm
Loading height
900 mm

Capacity

Hopper capacity
110 l

Weight

Weight, pump gearmotor
41 kg
Weight, mixing chamber
28.5 kg
Weight, machine body
162.5 kg
Weight, compressor
23 kg
Weight, total
255 kg

04Manuals

Parts book & manuals

Troubleshooting

Koine 35 not working right?

21 problems from the IMER manual, with the causes, what to do and the parts for each fix.

Open the Koine 35 troubleshooting guide

05Quote

Request a formal quote

Tell us the quantity, the delivery ZIP and whether the site has a loading dock or forklift. We reply with price, freight and lead time.
