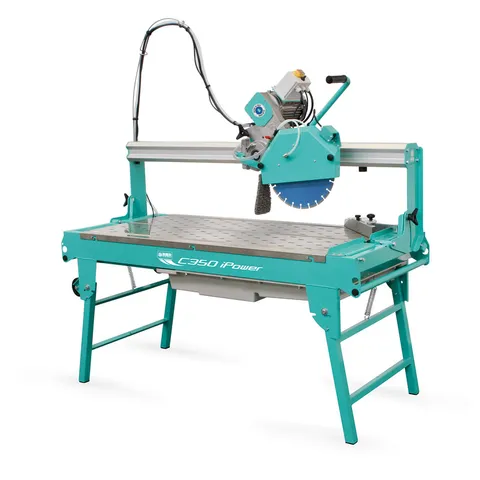

IMER Combicut 350 iPowerIMER Combicut 350 iPower, Stone and Masonry Saw, 14 in BladeGenuine IMER
Blade diameter
14in
Motor rating
4hp
Weight (boxed, includes stand)
265lbs

01Overview

IMER Combicut 350 iPower at a glance

Tile, stone and masonry saw with a 4 hp 220V high-torque motor and overhead travel beam for precise, lengthy cuts.

Used for

  • Tile and stone installation
  • Masonry
  • Precast fabrication
  • Landscaping
  • General contracting
  • Certified IMER Dealer
  • Ships from the USA
  • Stainless steel cutting surface with 48 in cutting length
  • 4 hp 220V single-phase high-torque motor driving the blade via a serpentine belt
  • Travel beam tilts for accurate 45° cuts
  • Integrated spring-loaded stand with wheel kit that folds for transport
  • Includes high flow water pump, 14 in general purpose blade and 180° protractor
  • Slide-out water pan for easy cleanup

02Shop parts

Shop Combicut 350 iPower parts by assembly

154 part numbers · 8 drawings

Popular for the Combicut 350 iPower

Ranked by orders, how often the part wears out and availability.

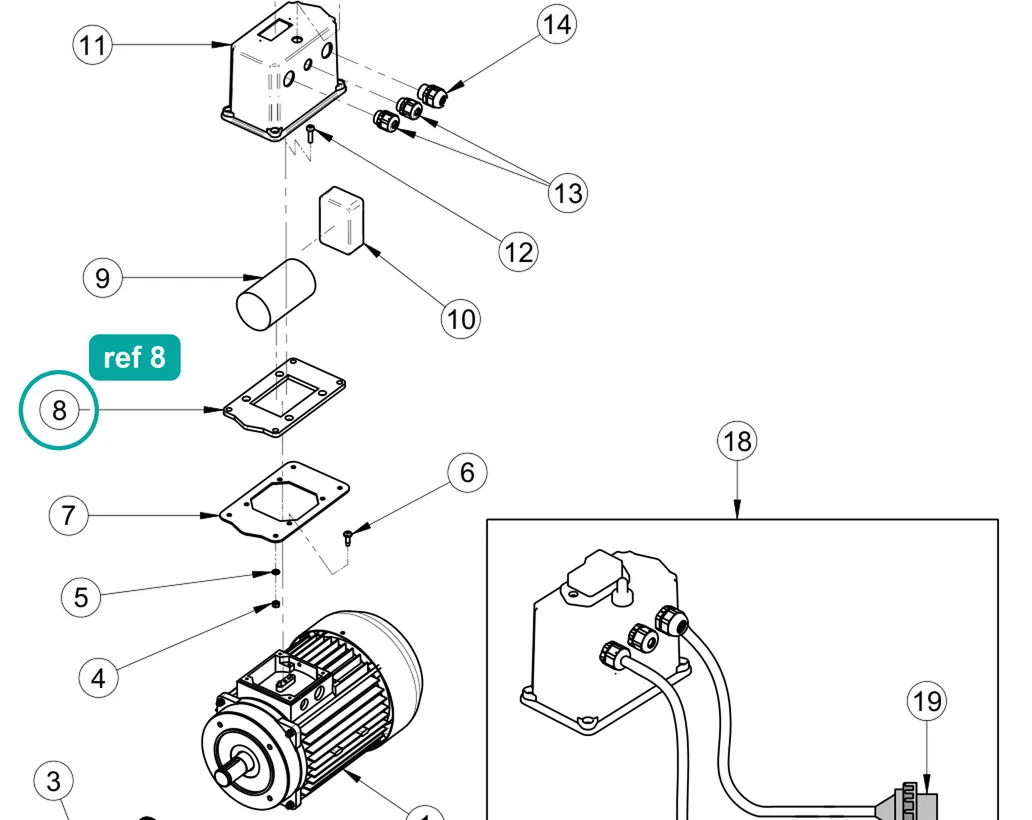

  • Gasket (ref 8) highlighted on the IMER Combicut 350 iPower parts diagram, Electric Panel – part 3231442
    3231442

    Gasket

    $22.00

    In stock

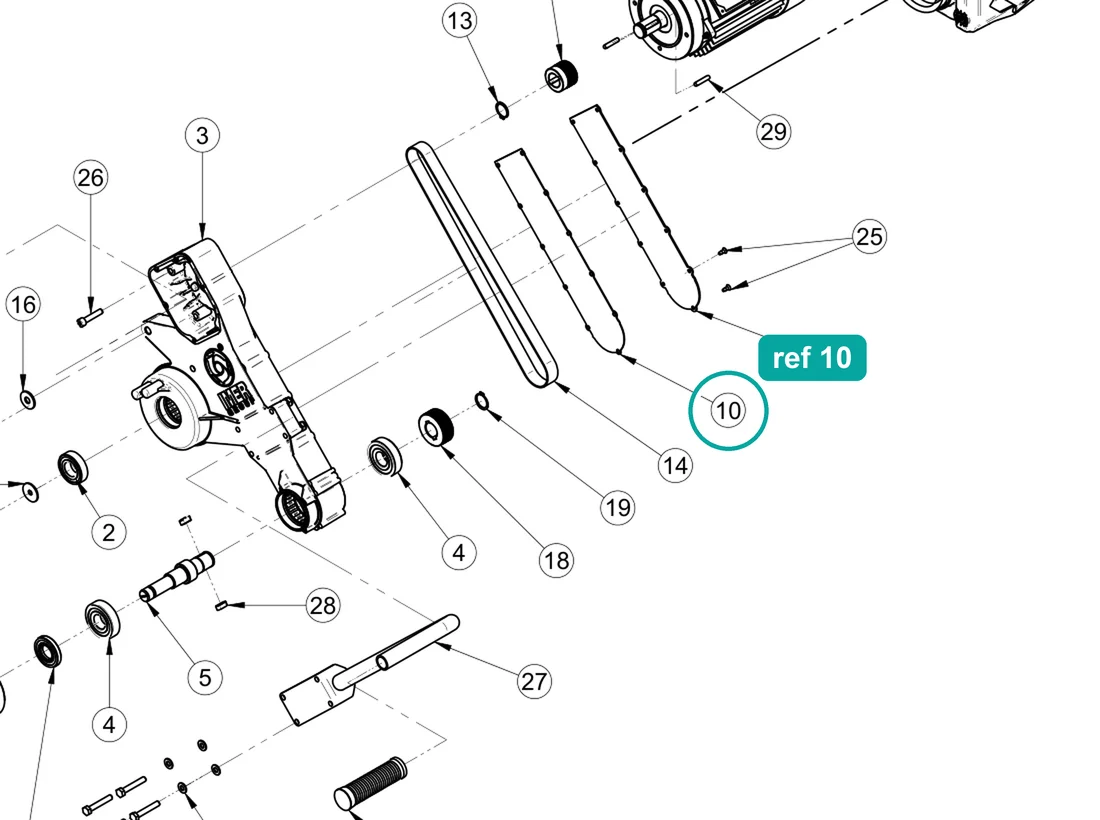

  • Gasket (ref 10) highlighted on the IMER Combicut 350 iPower parts diagram, Head Assembly – part 3231441
    3231441

    Gasket

    $18.00

    In stock

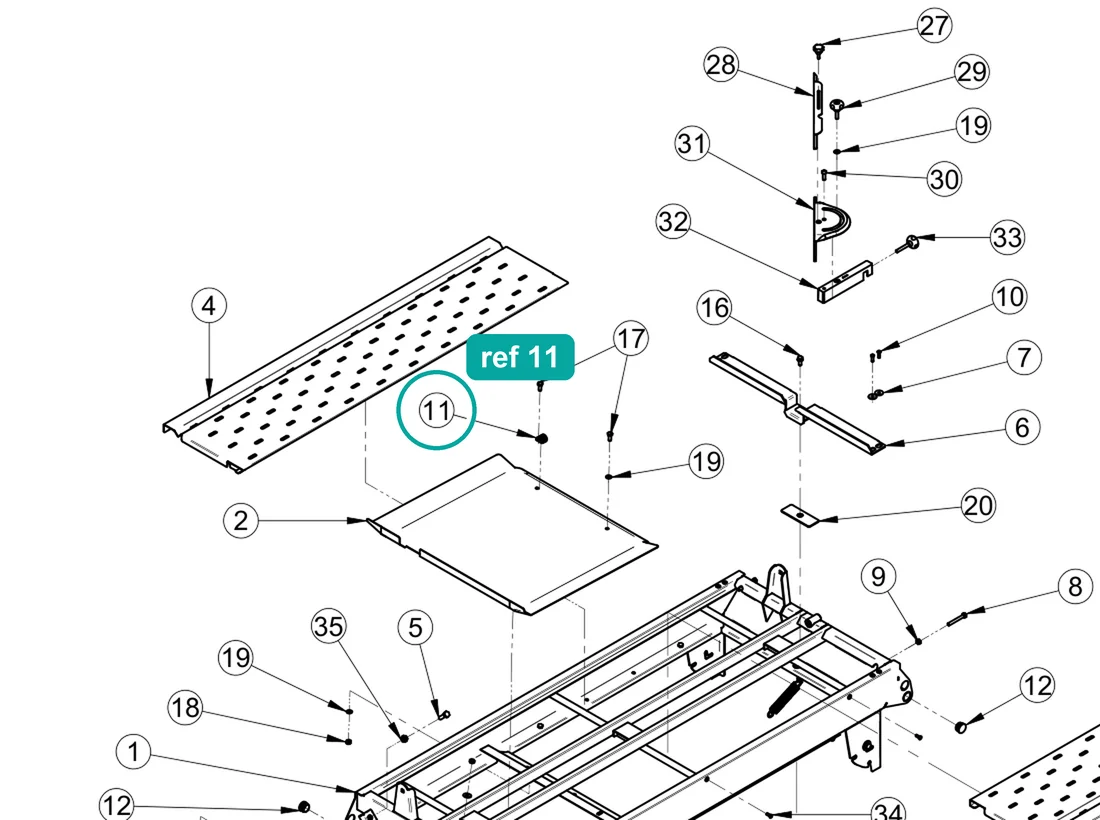

  • Clamp (ref 11) highlighted on the IMER Combicut 350 iPower parts diagram, Machine Structure – part 3205491
    3205491

    Clamp

    $16.00

    In stock

Or pick the assembly. Open a drawing, tap a numbered balloon and add the part to your cart.

03Specifications

Technical data

From the IMER product sheet

General

Model #
1188931

Capacity

Blade diameter
14 in
Blade shaft diameter
1 in
Water pan capacity
9 gal

Performance

Max. cutting length (w/ plunge cut)
41.5 in (47.25 in)
Max. cutting depth
4.75 in / 2.25 in
Blade speed
2800 rpm
Noise level
<79 dB

Power

Motor rating
4 hp 220V, 15 amp

Weight

Weight (boxed, includes stand)
265 lbs (300 lbs)

Dimensions

Operating length (boxed)
69 in (70 in)
Operating height (boxed)
55.5 in (60.5 in)
Operating width (boxed)
30 in (30.5 in)

04Manuals

Parts book & manuals

Troubleshooting

Combicut 350 iPower not working right?

3 problems from the IMER manual, with the causes, what to do and the parts for each fix.

Open the Combicut 350 iPower troubleshooting guide

Answers

Questions about the Combicut 350 iPower
