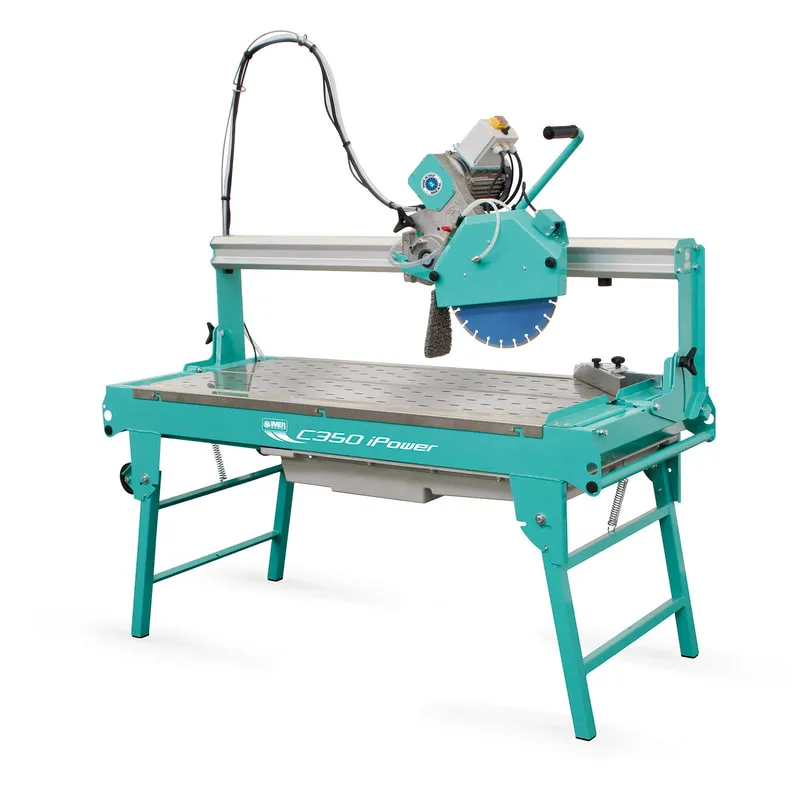

IMER Combicut 350 iPower Tile, Stone and Masonry Saw, 14 in Blade – IMER part 1188931

01About

About this machine

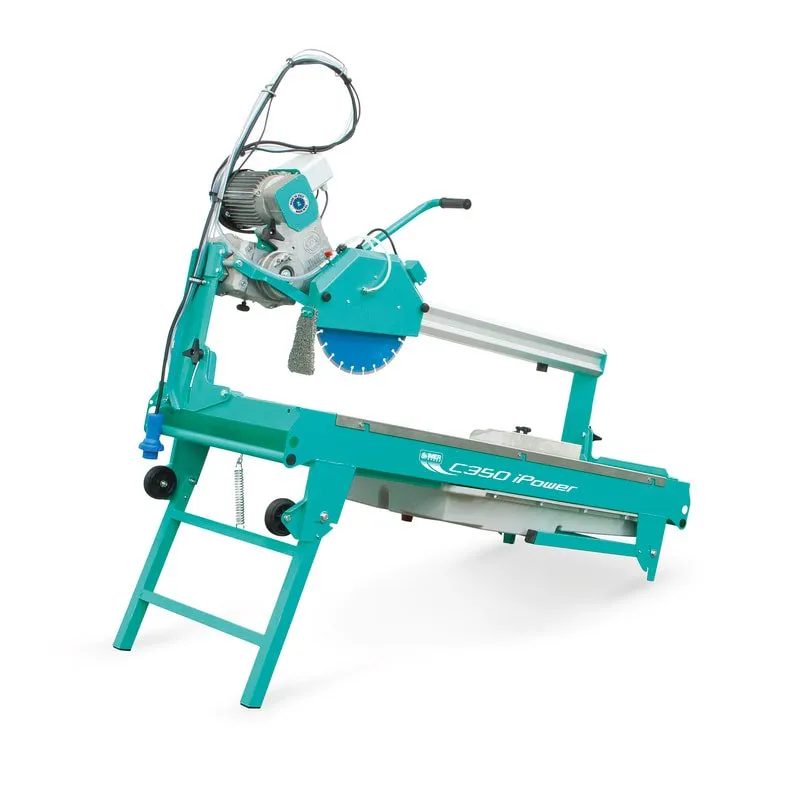

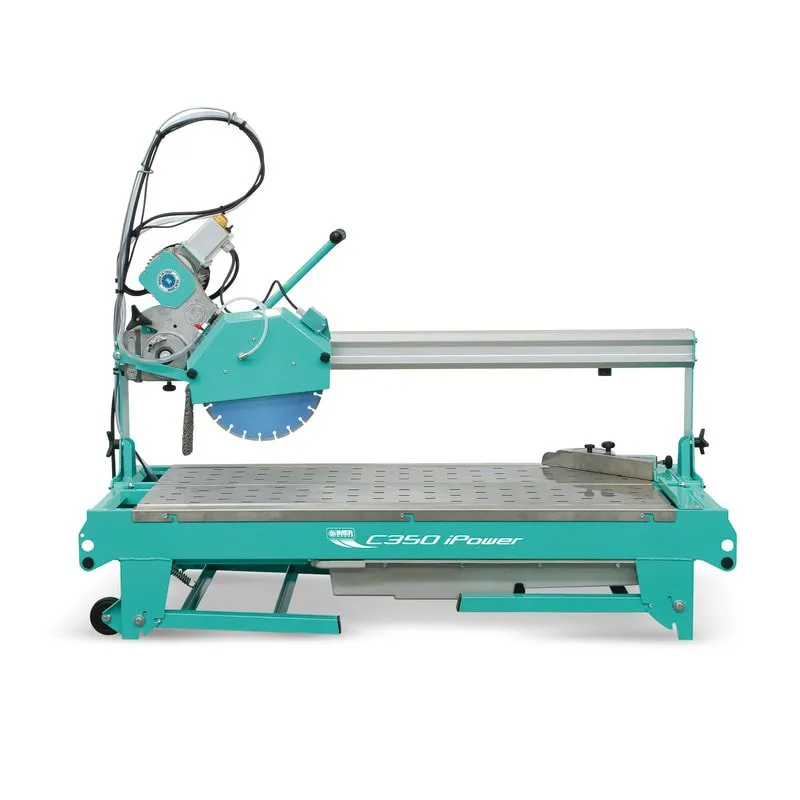

The IMER Combicut 350 iPower, model 1188931, is a tile, stone and masonry saw with a 14 in blade and an overhead travel beam for long, accurate cuts. A 4 hp, 220V/60Hz single-phase high-torque motor (15 amp) drives the blade at 2800 rpm through a serpentine belt.

Maximum cutting length is 41.5 in, or 47.25 in with a plunge cut, and maximum cutting depth is 4.75 in. The cutting surface is stainless steel, and the travel beam tilts for 45° cuts. The saw weighs 265 lbs with stand (300 lbs boxed) and has a 9 gal water pan.

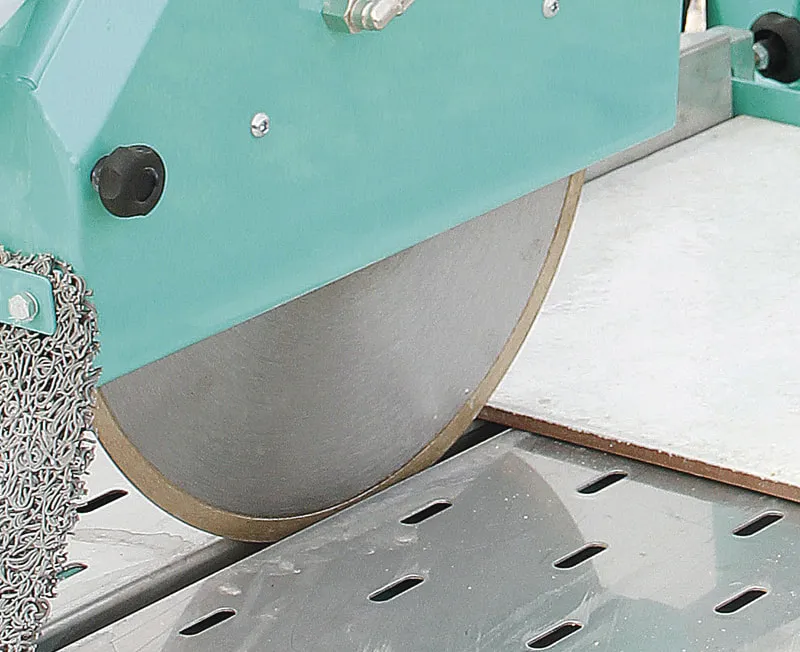

Standard equipment includes a 14 in general purpose blade, an integrated spring-loaded stand with wheel kit that folds for transport, a 180° protractor, a high flow water pump and a removable high impact poly water pan with baffle that slides out for cleanup. Listed 14 in blades: 1193924 (continuous rim, porcelain and hard materials), 1193934 (segmented masonry), 1193944 (concrete turbo with gullets) and 1193954 (silent core for stone).

Used by tile and stone installers, masons, precast fabricators, landscapers and general contractors.

02Versions

2 versions of the IMER Combicut 350 iPower

Each has its own page, price and part number

IMER Combicut 350 iPower: all versions, specs and parts

03Specifications

IMER Combicut 350 iPower technical data

From the IMER product sheet

General

Model #
1188931

Capacity

Blade diameter
14 in
Blade shaft diameter
1 in
Water pan capacity
9 gal

Performance

Max. cutting length (w/ plunge cut)
41.5 in (47.25 in)
Max. cutting depth
4.75 in / 2.25 in
Blade speed
2800 rpm
Noise level
<79 dB

Power

Motor rating
4 hp 220V, 15 amp

Weight

Weight (boxed, includes stand)
265 lbs (300 lbs)

Dimensions

Operating length (boxed)
69 in (70 in)
Operating height (boxed)
55.5 in (60.5 in)
Operating width (boxed)
30 in (30.5 in)

04Parts & manuals

Parts that fit the IMER Combicut 350 iPower

154 part numbers · 8 drawings

Parts you can order for the Combicut 350 iPower

05Shipping

Shipping and lead time

Ships from the USA
Lead time
Usually ships in 2–3 weeks. IMER machines come from Italy and some are assembled to order or back-ordered, so we confirm the ship date after you order.
Delivery
LTL freight, 7–10 business days in transit. Free to commercial addresses in the contiguous US on orders over $1,500; residential delivery adds $150 and a liftgate $150. Ships to the USA and Canada (not to Quebec). Shipping conditions
Returns
30-day returns. Return policy
