IMER Step-Up 120 parts book

Drawing 1 Machine Structure

3226875 r16 · 2018-0914 numbered positions · 14 rows · 11 listed online

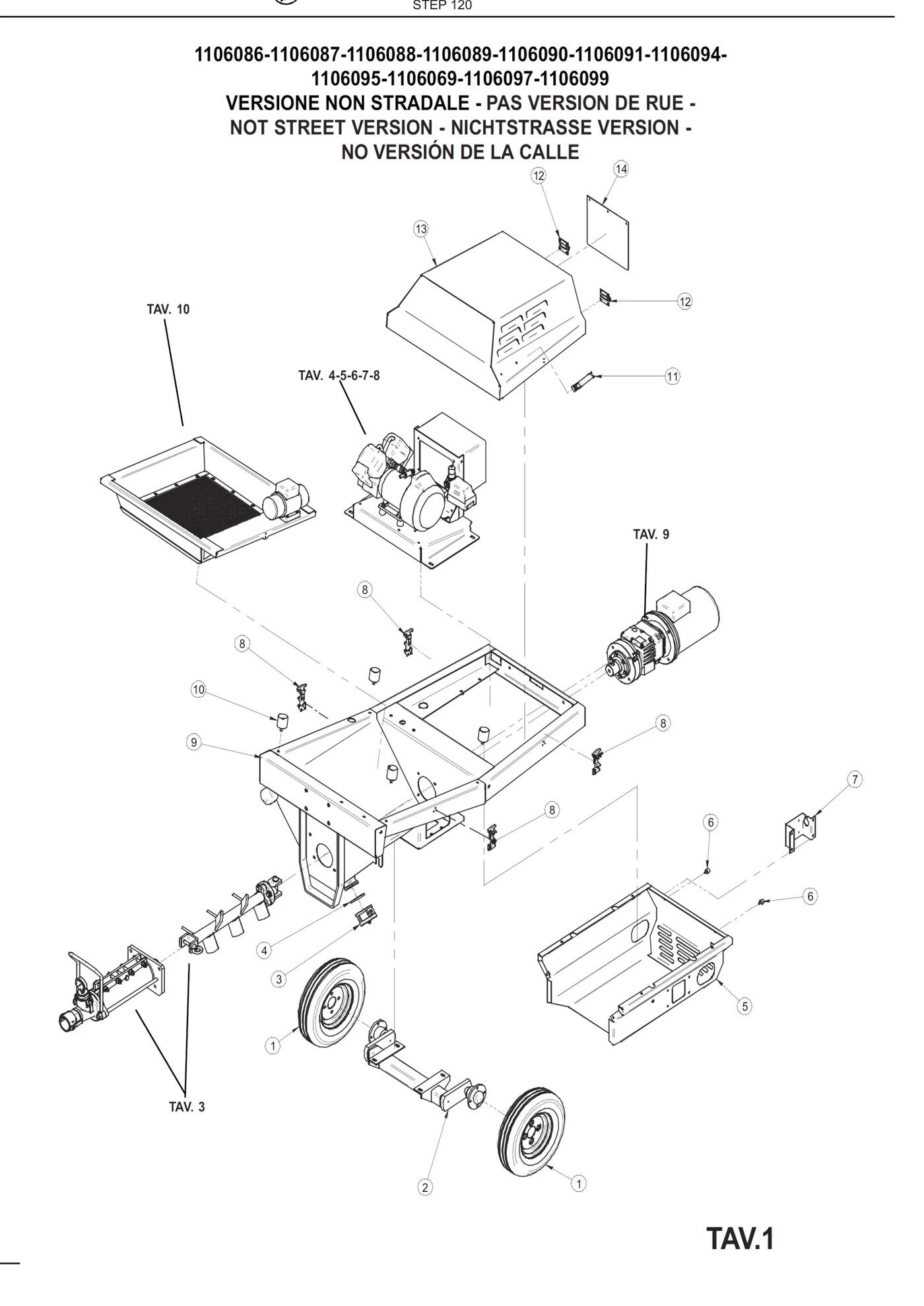

Step-Up 120 Machine Structure, exploded view with reference numbers — Select a number on the drawing to see its part and add it to your cart. Hover or tap a row to see where the part sits; Enlarge to zoom in.

Select all 11 orderable partsTick several, then add them in one tap

Step-Up 120 — Machine Structure, parts list with prices
Select	Ref	Part no.	Name	Price	Order
	1	3231197	Wheel3231197PN.400x90 2.50-8	$213.00In stock	Quantity of Wheel
	2	3236443	Complete Axle3236443700 kg	Not sold online	Not sold online — ask a parts specialist
	3	3225751	Kamlock Plug F.3225751DN65	$98.00In stock	Quantity of Kamlock Plug F.
	4	3225891	Seal Cam Coupling DN653225891	$14.00In stock	Quantity of Seal Cam Coupling DN65
	5	3227949	Lower Casing3227949	$486.00In stock	Quantity of Lower Casing
	6	3224801	Vibration Damper3224801GN 17 0315 70 Shore	$10.00In stock	Quantity of Vibration Damper
	7	3226813	Vibrating Screen Electrical Panel Support3226813	$69.00In stock	Quantity of Vibrating Screen Electrical Panel Support
	8	3225776	Closure3225776	Not sold online	Not sold online — ask a parts specialist
	9	3225964	Frame3225964	Not sold online	Not sold online — ask a parts specialist
	10	3225826	Vibration Damper3225826GN 17 0319	$35.00In stock	Quantity of Vibration Damper
	11	3204888	Handle3204888	$11.00In stock	Quantity of Handle
	12	3224625	Hinge For Vans, Galvanized3224625	$93.00In stock	Quantity of Hinge For Vans, Galvanized
	13	3227948	Door3227948	$624.00In stock	Quantity of Door
	14	3226811	Electrical Panel Protection3226811	$40.00In stock	Quantity of Electrical Panel Protection
