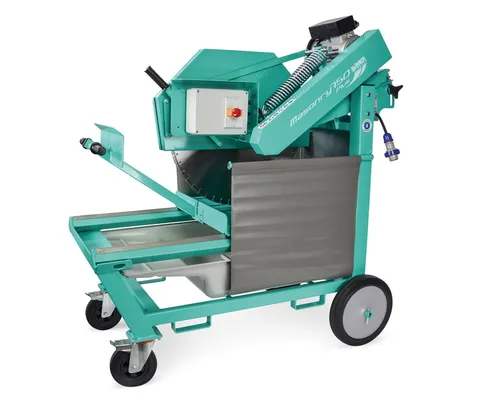

IMER Masonry 750 at a glance

The Masonry 750 is a 30 in blade electric block, stone and precast saw that cuts 8 in and 10 in blocks in a single pass.

Used for

Blocks
Pavers
Stone
Pre-cast concrete products

Certified IMER Dealer
Ships from the USA

Cutting head pivots on sealed bearings for controlled plunge cuts via tilt handle
Box steel frame with hand-fabricated heavy-duty steel cutting tray
7.5 hp motor option with electronic soft start
Wheel kit with locking wheels; forklift pockets welded into frame
Single-phase or 3-phase 240V electric motor options
Optional 20 in kit converts saw to a 20 in blade

02Shop parts

Masonry 750 parts

The Masonry 750 parts book is not online yet. Send us the part number from your parts book or a photo of the serial plate and we find the part: +1 (307) 301-7723.

03Specifications

Technical data

From the IMER product sheet

General

Model # (Single-Phase): 1188863
Model # (3 Phase): 1188864

Capacity

Blade diameter: 30 in
Blade shaft diameter: 1 in
Water pan capacity: 9 gal

Performance

Max. cutting depth (incl. plunge): 18 in (27 in)
Blade speed: 1700 rpm
Self-priming centrifugal pump: 3 gpm
Noise level: <78 dB

Power

Motor rating: 5.5 hp 240V 1ø or 7.5 hp 240V 3ø

Weight

Weight (crated): 440 lbs (495 lbs)

Dimensions

Length (boxed): 61 in
Height (boxed): 63 in
Width (boxed): 33.5 in

04Manuals

Parts book & manuals

Need the operator or parts manual? Ask us and we send the right revision for your serial number.

05Quote

Request a formal quote

Tell us the quantity, the delivery ZIP and whether the site has a loading dock or forklift. We reply with price, freight and lead time.

Request a quote Call +1 (307) 301-7723
