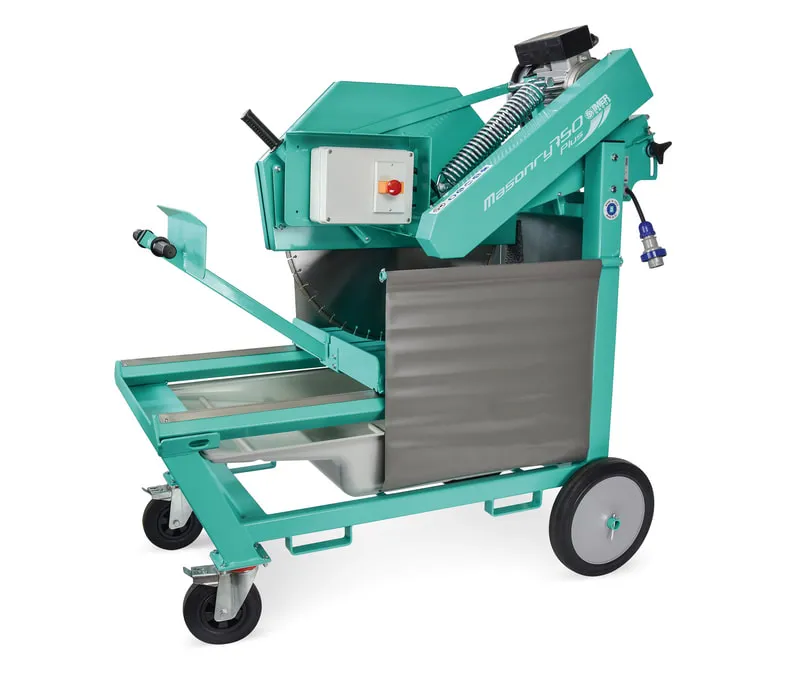

IMER Masonry 750 Plus Block and Stone Saw, 30 in Blade, 3-Phase – IMER part 1188864Free shipping

01About

About this machine

The IMER Masonry 750 Plus, model 1188864, is an electric block, stone and precast saw with a 30 in blade that cuts 8 in and 10 in blocks in a single pass. This version has a 7.5 hp 3-phase motor with electronic soft start (IMER's product sheet lists it at 240V, the 2026 IMER price list at 208V), and the blade turns at 1700 rpm.

The cutting head pivots on sealed bearings and is lowered with a tilt handle for smooth, controlled plunge cuts, with no foot pedal. The box steel frame and the cutting tray are hand fabricated from heavy-duty steel. A wheel kit with locking wheels lets one person roll the saw around, and lift slots welded into the frame let a forklift handle it. It has a 9 gal water pan and a self-priming centrifugal pump rated at 3 gpm. The saw weighs 440 lbs (495 lbs crated) and is rated below 78 dB. An optional 20 in kit converts it to a 20 in blade, and IMER offers a 45° miter accessory for the Masonry 750, item 1188870.

Use it for blocks, pavers, stone and precast concrete products. Listed 30 in blades: 1193913 (premium diamond, masonry/block) and 1193941 (premium diamond, stone). The single-phase version is model 1188863 with a 5.5 hp motor.

02Versions

2 versions of the IMER Masonry 750

Each has its own page, price and part number
  • 1188864

    30 in Blade, 3-Phase

    This version

    Free shipping

    $6,699

    Ships by Nov 21, 2026

IMER Masonry 750: all versions, specs and parts

03Specifications

IMER Masonry 750 technical data

From the IMER product sheet

General

Model # (Single-Phase)
1188863
Model # (3 Phase)
1188864

Capacity

Blade diameter
30 in
Blade shaft diameter
1 in
Water pan capacity
9 gal

Performance

Max. cutting depth (incl. plunge)
18 in (27 in)
Blade speed
1700 rpm
Self-priming centrifugal pump
3 gpm
Noise level
<78 dB

Power

Motor rating
5.5 hp 240V 1ø or 7.5 hp 240V 3ø

Weight

Weight (crated)
440 lbs (495 lbs)

Dimensions

Length (boxed)
61 in
Height (boxed)
63 in
Width (boxed)
33.5 in

04Shipping

Shipping and lead time

Shipped by IMER USA
Lead time
Usually ships in 2–3 weeks. The machine is ordered from IMER for you; some are assembled to order or back-ordered, so we confirm the ship date after you order. Expected ship date for an order placed today: Nov 21, 2026. IMER USA ships it directly to you.
Delivery
LTL freight, 7–10 business days in transit. Free to commercial addresses in the contiguous US; residential and/or liftgate delivery adds one flat $75. Ships to the USA and Canada (not to Quebec). Shipping conditions
Returns
30-day returns. Non-defective returns: 15% restocking fee (parts), 30% (machines), return freight paid by the buyer. See Returns
