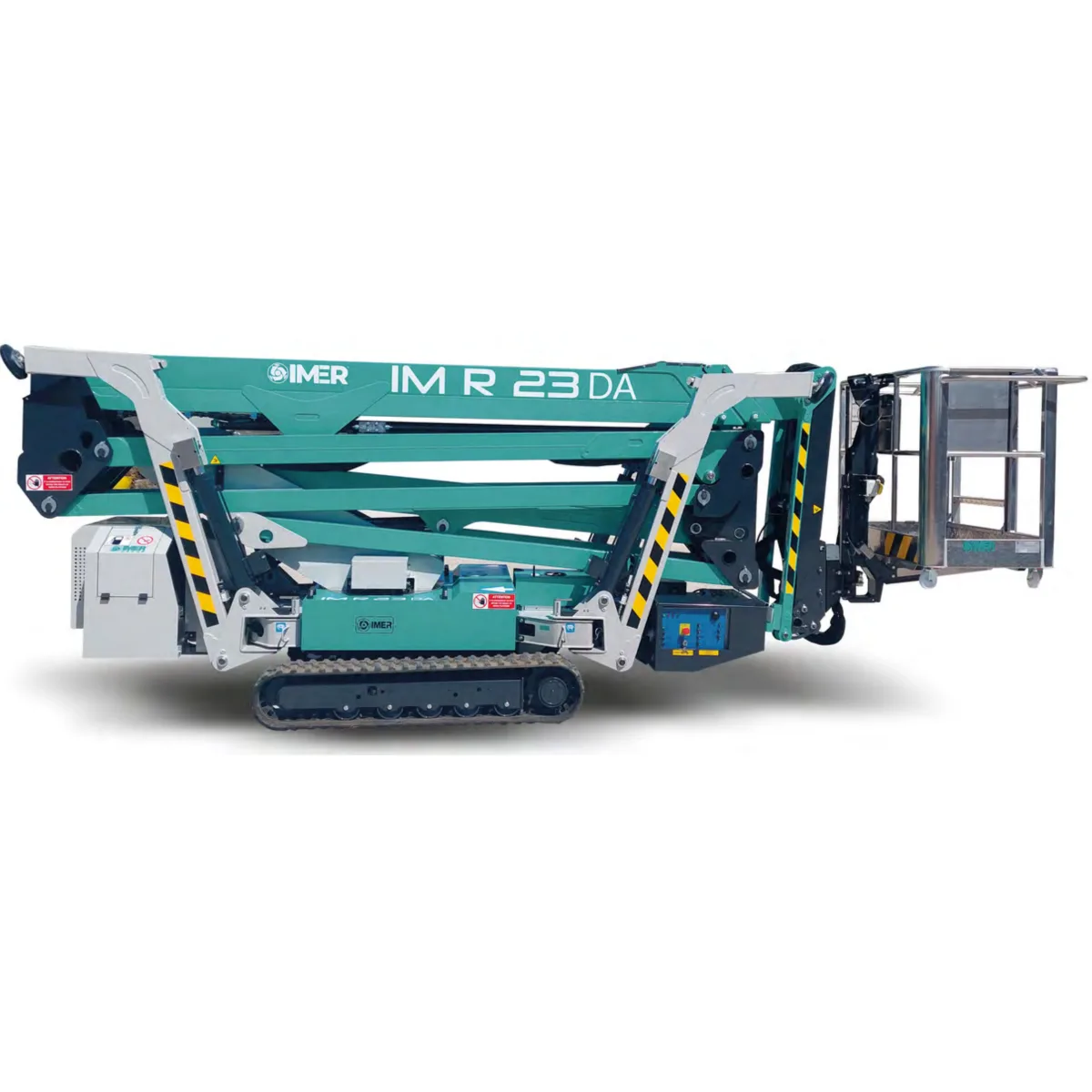

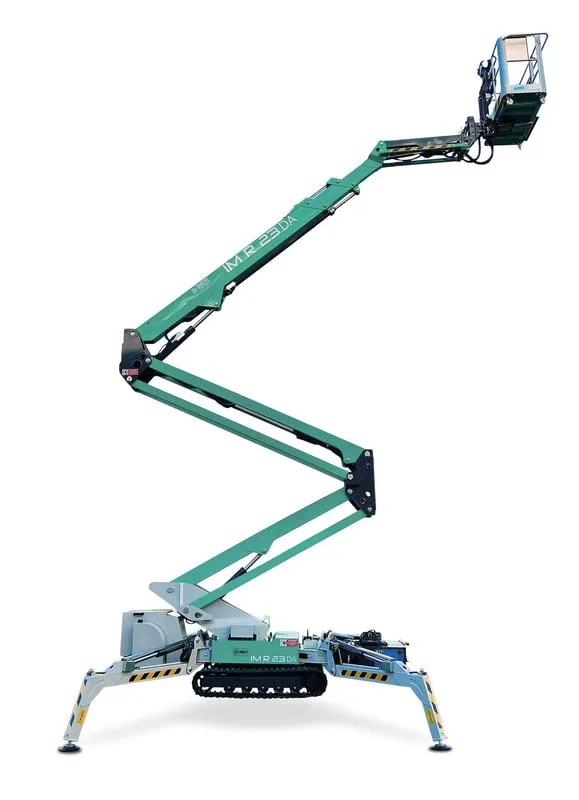

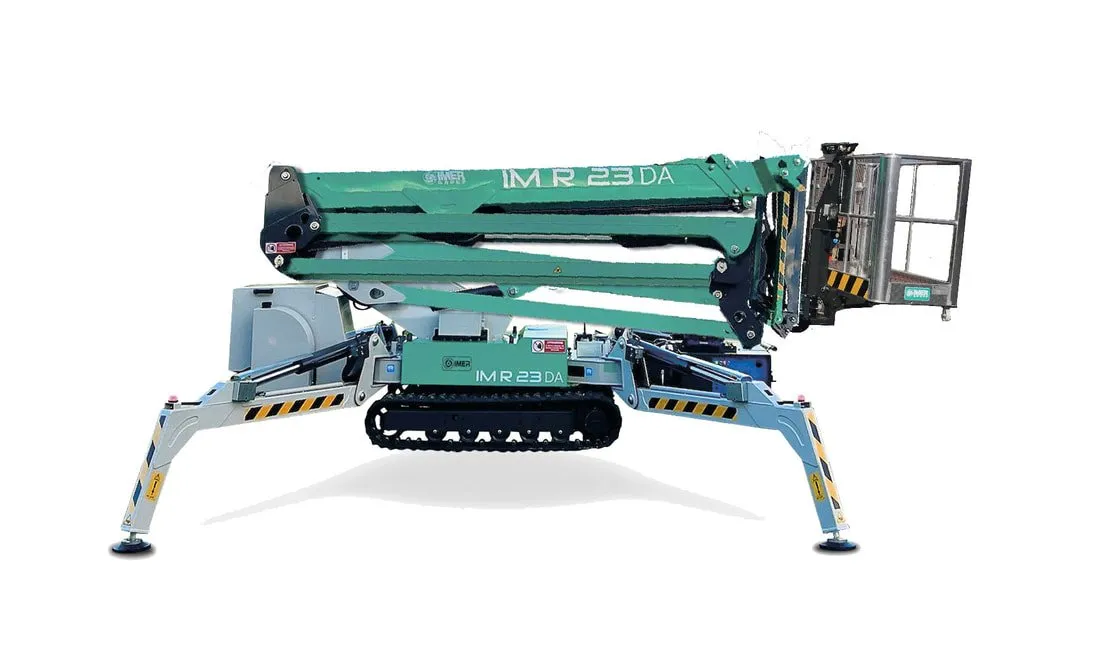

The IMER IM R 23 (model 1128632) is a double-articulated tracked atrium lift with a 75 ft (23 m) working height and a 69 ft platform height, built for outdoor and indoor work. Side outreach is 35 ft with 507 lb in the basket and 39 ft with 308 lb, and platform capacity is 510 lb (two persons). Double articulation gives up-and-over reach; rotation is 355° (non-continuous) and hydraulic basket rotation is 124°.

A Honda iGX800 25 hp engine is standard, with a 16 amp electric motor for indoor use. A diesel version with a 3TNV70 23 hp engine is listed as model 1128633. Track width is hydraulically adjustable, stowed height is 6 ft 6 in, and the machine weighs 6,525 lb (6,613 lb for the diesel). Driving speed is up to 1.7 mph and gradeability is 32%.

Standard equipment includes automatic outrigger leveling, a hydraulic jib, a load and tip detection sensor and overload sensor, a removable wireless control box with a tether for wired connectivity, a removable basket with 1-pin detach, 8 in outrigger pads, and an air/water outlet and 120V AC power in the basket. Options include non-marking tracks, a basket work light, 14 in oversized outrigger pads, a 12 V emergency pump and the IMERVIEW GPS remote monitor system.
