IMER Mix 360 parts book

Drawing 2 Outlet Assembly

3211378 r02 · 2018-0916 numbered positions · 16 rows · 15 listed online

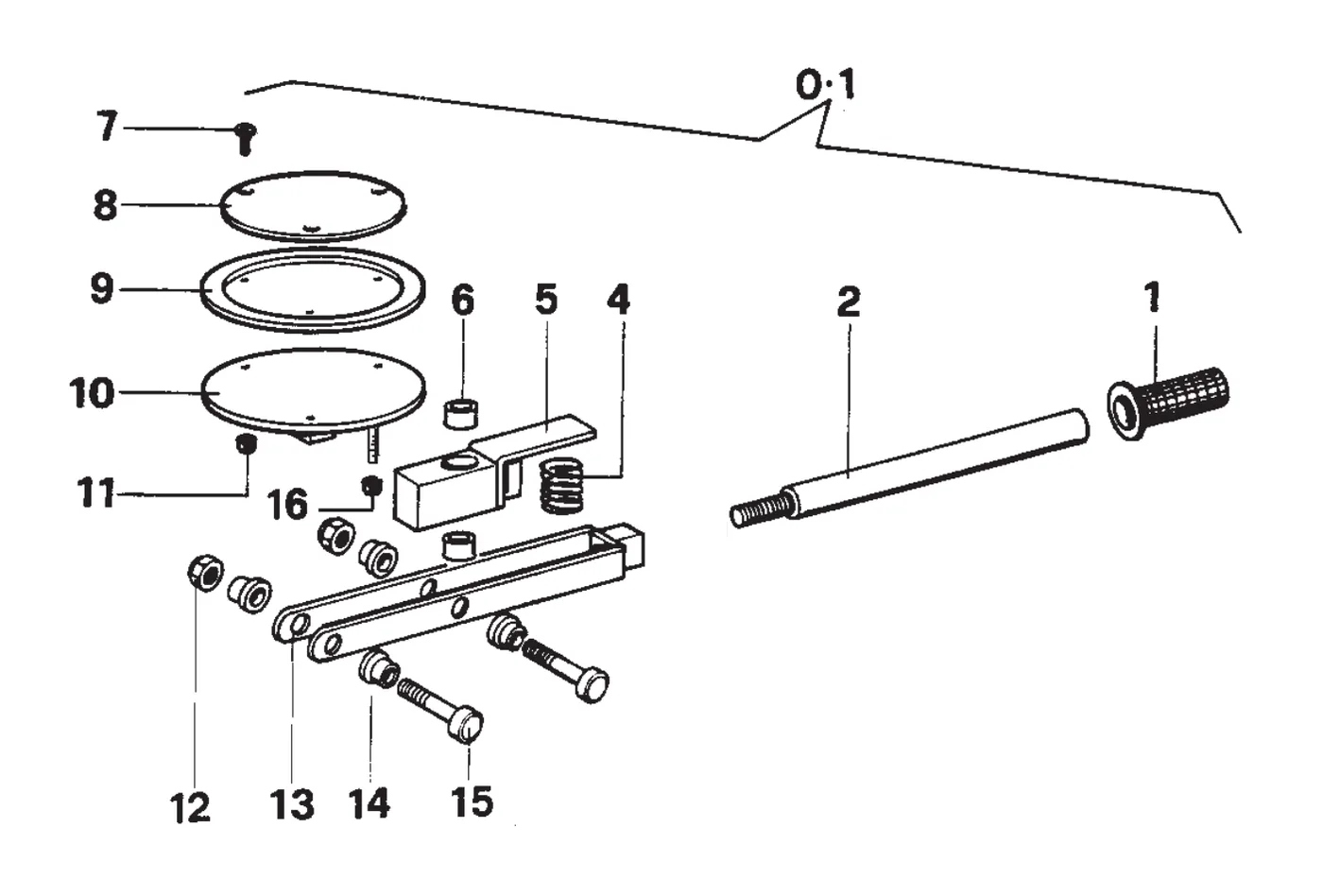

Mix 360 Outlet Assembly, exploded view with reference numbers — Select a number on the drawing to see its part and add it to your cart. Hover or tap a row to see where the part sits; Enlarge to zoom in.

Select all 15 orderable partsTick several, then add them in one tap

Mix 360 — Outlet Assembly, parts list with prices
Select	Ref	Part no.	Name	Price	Order
	0.1	3211022	Outlet Assembly3211022Same number printed as Round Nozzle in Table 1 ref 13	Not sold online	Not sold online — ask a parts specialist
	1	2288885	Handle2288885	$13.00In stock	Quantity of Handle
	2	2259894	Outlet Lever2259894	$21.00In stock	Quantity of Outlet Lever
	4	2231301	Spring2231301	$10.00In stock	Quantity of Spring
	5	2237795	Joint2237795	$229.00In stock	Quantity of Joint
	6	2209822	Bush2209822	$10.00In stock	Quantity of Bush
	7	2222600	Bolt 963 M6x262222600	$10.00In stock	Quantity of Bolt 963 M6x26
	8	2225033	Disc2225033	$57.00In stock	Quantity of Disc
	9	2292581	Gasket2292581	$88.00In stock	Quantity of Gasket
	10	2253863	Disc2253863	$237.00In stock	Quantity of Disc
	11	2223924	Nut2223924	$10.00In stock	Quantity of Nut
	12	2223920	Self-Locking Nut M62223920	$10.00In stock	Quantity of Self-Locking Nut M6
	13	2254015	Fork 7474 M102254015	$158.00In stock	Quantity of Fork 7474 M10
	14	2209821	Bush2209821	$12.00In stock	Quantity of Bush
	15	2223006	Bolt2223006	$63.00In stock	Quantity of Bolt
	16	2223921	Self-Locking Nut 7474 M122223921	$10.00In stock	Quantity of Self-Locking Nut 7474 M12
