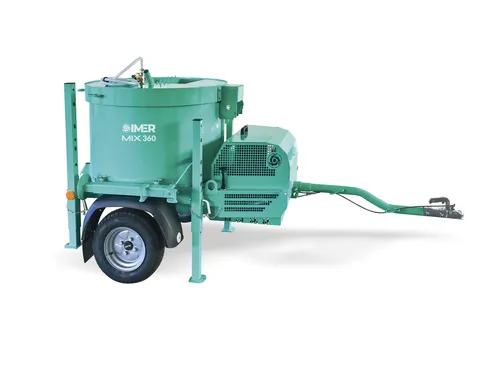

IMER Mix 360 Plus at a glance

Towable vertical shaft paddle mixer whose paddles rotate through the mix, batch-plant style, so it can handle very low slump materials such as dry pack mortar, refractory cement and UHPC.

Used for

Dry pack mortar
Refractory cement
UHPC
Mortar and low slump mixes with aggregate up to 3/8 in

Certified IMER Dealer
Ships from the USA

Paddles are driven by heavy-duty gearboxes developed in IMER's batch plant division
Industrial-duty electric motor that can run continuously and mixes stiff, dry materials
Auto shut-down safety grate (IMER dust grate)
4 adjustable legs, plus a dump mechanism that lets you control discharge
Torsion bar suspension, highway tires and a tow bar for transport
Hook-up for a water connection

02Shop parts

Mix 360 Plus parts

The Mix 360 Plus parts book is not online yet. Send us the part number from your parts book or a photo of the serial plate and we find the part: +1 (307) 301-7723.

03Specifications

Technical data

From the IMER product sheet

Capacity

Drum capacity: 12 cu ft
Batch output: 9 cu ft (materials can influence output)

Performance

Maximum aggregate size: 3/8 in
Noise level: <79 dB

Dimensions

Discharge outlet height (max/min): 30/18 in
Pneumatic wheels: 18 in
Width (packaged): 44 in (50 in)
Length (packaged): 59 in (80 in)
Height (packaged): 58 in (56 in)

Weight

Weight (electric / gas): 787 / 794 lbs

Power

Electric motor: 240V, 5 hp, single phase
Gas engine: Honda GXV390 11 hp

04Manuals

Parts book & manuals

Need the operator or parts manual? Ask us and we send the right revision for your serial number.

Guides

Guides for the Mix 360 Plus

All guides

Buying guide · Buying guides
Choosing an IMER Mortar Mixer: Mix-All 60 to Mix 750
Compare the IMER Mix-All 60, Mix 120 Plus, Mix 360 Plus and Mix 750 side by side: drum size, batch output, power options, wheels and weight.
5 min read
