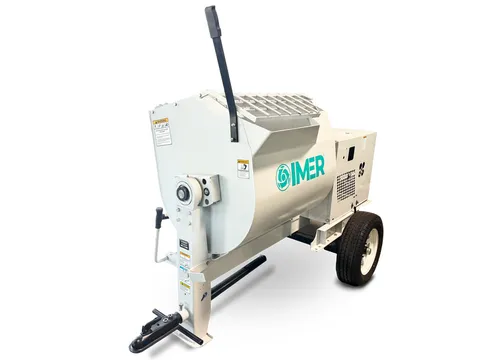

IMER HSM 8, 8 cu ftIMER HSM 8, 8 cu ftGenuine IMER
Batch output
8cu ft
Weight
650lbs

01Overview

IMER HSM 8 at a glance

Towable 8 cu ft mortar mixer with an enclosed gearbox drive, powered by a Honda GX 240 gas engine or a 120/240V electric motor.

Used for

  • Mortar
  • Stucco
  • Grout
  • Certified IMER Dealer
  • Ships from the USA
  • Enclosed gearbox runs quieter with less heat and gear wear
  • Extra large safety grate standard
  • 2 in ball hitch standard; pintle loop on request
  • Locking handle prevents unexpected dumping
  • Externally mounted pillow blocks
  • Optional spiral mixing blades (up to 30% faster mixing) and optional torsion bar axle

02Shop parts

HSM 8 parts

The HSM 8 parts book is not online yet. Send us the part number from your parts book or a photo of the serial plate and we find the part: +1 (307) 301-7723.

03Specifications

Technical data

From the IMER product sheet

Capacity

Bag capacity
2.5 - 3 bags
Batch output
8 cu ft

Power

Gas motor
Honda GX 240, 8 hp
Electric motor
120V / 240V, 1.5 hp

Dimensions

Tire size
5.3 x 12 in
Charging height
59-3/4 in
Width
45 in
Length (with tow bar)
73 in (92-3/4 in)
Height
57-1/2 in

Weight

Weight
650 lbs

Performance

Noise level
<79 dB

04Manuals

Parts book & manuals

Need the operator or parts manual? Ask us and we send the right revision for your serial number.

Answers

Questions about the HSM 8

All answers

05Quote

Request a formal quote

Tell us the quantity, the delivery ZIP and whether the site has a loading dock or forklift. We reply with price, freight and lead time.
