IMER HSM 8 Electric Towable Mortar Mixer, 8 cu ft – IMER part 1130082

01About

About this machine

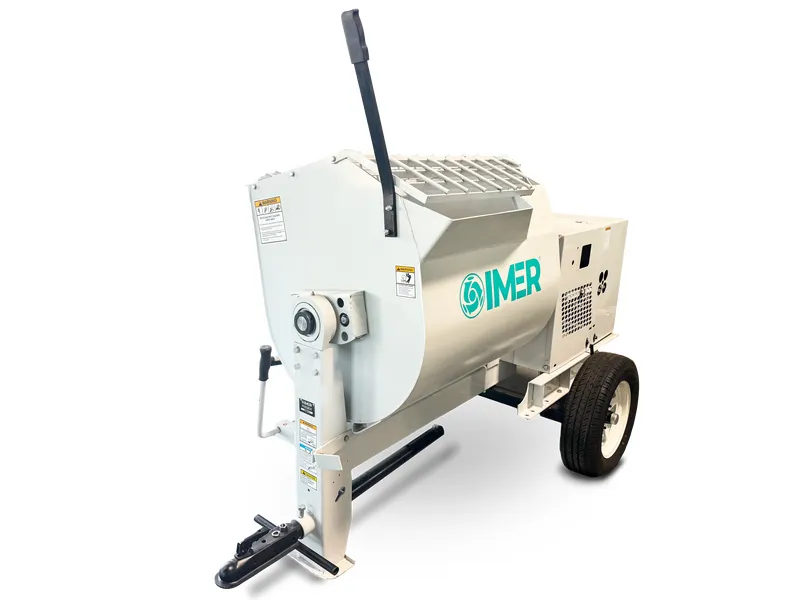

The IMER HSM 8 electric (model 1130082) is a towable horizontal shaft mortar mixer with an 8 cu ft steel drum and a 1.5 hp electric motor listed as 120V/240V. It mixes mortars, stuccos and grouts, with a bag capacity of 2.5 to 3 bags and an 8 cu ft batch output.

The paddles are driven through an enclosed gearbox that runs quieter with less heat and gear wear; the noise level is under 79 dB. Pillow blocks are mounted externally, an extra large safety grate is standard, and a locking handle prevents unexpected dumping. The unit also has forklift pockets.

The HSM 8 weighs 650 lbs, rides on 5.3 x 12 in tires and has a 59-3/4 in charging height. It is 45 in wide, 57-1/2 in high and 73 in long, or 92-3/4 in with the tow bar. A 2 in ball hitch tow bar is standard; a pintle hitch is available and must be selected at the time of purchase. Options include spiral mixing blades (up to 30% faster mixing), a torsion bar axle and the HSM 8 Poly Tub Upgrade (1131081), which must be factory installed.

02Versions

2 versions of the IMER HSM 8

Each has its own page, price and part number
  • 1130082

    8 cu ft

    This version

    $4,799

    In stock

IMER HSM 8: all versions, specs and parts

03Specifications

IMER HSM 8 technical data

From the IMER product sheet

Capacity

Bag capacity
2.5 - 3 bags
Batch output
8 cu ft

Power

Gas motor
Honda GX 240, 8 hp
Electric motor
120V / 240V, 1.5 hp

Dimensions

Tire size
5.3 x 12 in
Charging height
59-3/4 in
Width
45 in
Length (with tow bar)
73 in (92-3/4 in)
Height
57-1/2 in

Weight

Weight
650 lbs

Performance

Noise level
<79 dB

04Shipping

Shipping and lead time

Ships from the USA
Lead time
Usually ships in 2–3 weeks. IMER machines come from Italy and some are assembled to order or back-ordered, so we confirm the ship date after you order.
Delivery
LTL freight, 7–10 business days in transit. Free to commercial addresses in the contiguous US on orders over $1,500; residential delivery adds $150 and a liftgate $150. Ships to the USA and Canada (not to Quebec). Shipping conditions
Returns
30-day returns. Return policy
