IMER Booster 15 parts book

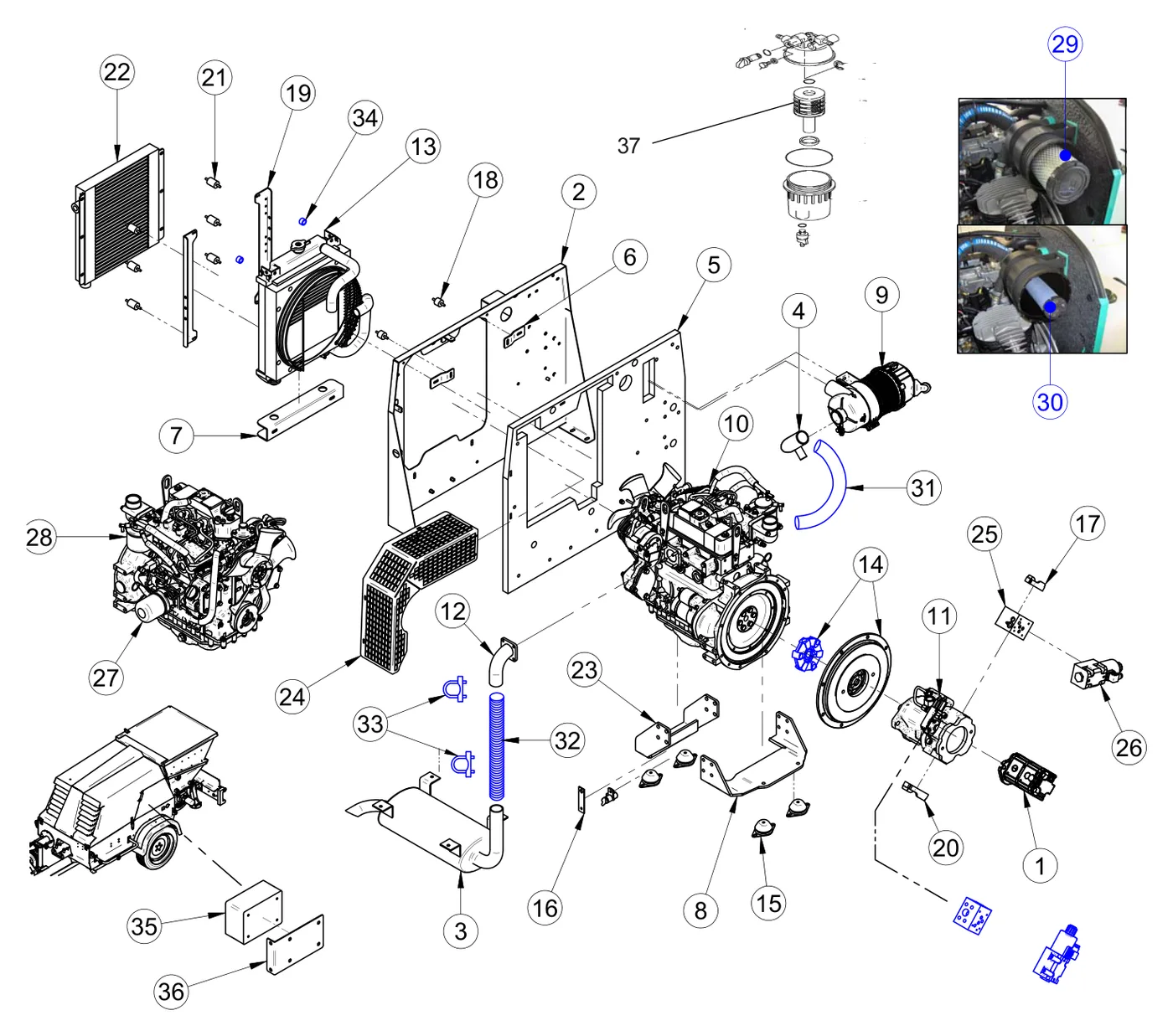

Drawing 4 Engine And Hydraulic Pump Assembly
3234441 r08 · 2019-0137 numbered positions · 45 rows · 23 listed online
Tick several, then add them in one tap
| Select | Ref | Part no. | Name | Price | Order |
|---|---|---|---|---|---|
| 1 | 3229033 | Gear Pump3229033 | $2,265.00In stock | ||
| 2 | 3234276 | Radiator Bulkhead3234276Booster 15 Yanmar | Not sold online | Not sold online — ask a parts specialist | |
| 3 | 3227625 | Silencer3227625 | Not sold online | Not sold online — ask a parts specialist | |
| 4 | 3225317 | Air Filter Manifold3225317 | $139.00In stock | ||
| 5 | 3234261 | Sound-Absorbent Panel3234261 | Not sold online | Not sold online — ask a parts specialist | |
| 6 | 3234270 | Radiator Upper Support3234270 | Not sold online | Not sold online — ask a parts specialist | |
| 7 | 3234271 | Radiator Lower Support3234271 | Not sold online | Not sold online — ask a parts specialist | |
| 8 | 3234274 | Front Engine Support Bracket3234274Versions 1106120-1106121 | Not sold online | Not sold online — ask a parts specialist | |
| 8 | 3236645 | Front Engine Support Bracket3236645Version 1106126 | Not sold online | Not sold online — ask a parts specialist | |
| 9 | 3234130 | Air Filter3234130 | Not sold online | Not sold online — ask a parts specialist | |
| 10 | 3234965 | Diesel Engine3234965Version 1106126 | Not sold online | Not sold online — ask a parts specialist | |
| 10 | 3234117 | Diesel Engine3234117Versions 1106120-1106121 | Not sold online | Not sold online — ask a parts specialist | |
| 11 | 3234048 | Piston Pump3234048 | $12,910.00In stock | ||
| 11 | 3237122 | Piston Pump3237122From S/N j009677345 | $5,291.00In stock | ||
| 12 | 3234126 | Silencer Manifold3234126 | Not sold online | Not sold online — ask a parts specialist | |
| 13 | 3234246 | Engine Radiator3234246 | Not sold online | Not sold online — ask a parts specialist | |
| 14 | 3234110 | Coupling3234110Version 1106126 | $2,964.00In stock | ||
| 14 | 3234109 | Coupling3234109Versions 1106120-1106121 | $1,000.00In stock | ||
| 15 | 3224447 | Bell Vibration Damper Supports3224447 | $91.00In stock | ||
| 16 | 3226152 | Plate3226152 | Not sold online | Not sold online — ask a parts specialist | |
| 17 | 3228990 | Flange SAE SFS3 1"3228990 | $39.00In stock | ||
| 18 | 3229734 | Vibration Damper 25x20mm M6x183229734 | Not sold online | Not sold online — ask a parts specialist | |
| 19 | 3234269 | Radiator Bracket3234269 | Not sold online | Not sold online — ask a parts specialist | |
| 20 | 3228991 | Split Flange SAE SFS3 1-1/2"3228991 | $59.00In stock | ||
| 21 | 3229733 | Vibration Damper 25x35mm M6x183229733 | $17.00In stock | ||
| 22 | 3234505 | Heat Exchanger3234505 | Not sold online | Not sold online — ask a parts specialist | |
| 23 | 3234275 | Rear Engine Support Bracket3234275Versions 1106120-1106121 | Not sold online | Not sold online — ask a parts specialist | |
| 23 | 3226643 | Rear Engine Support Bracket3226643Version 1106126 | $644.00In stock | ||
| 24 | 3234125 | Fan Protection Grille3234125 | Not sold online | Not sold online — ask a parts specialist | |
| 25 | 3229105 | Base Block3229105 | Not sold online | Not sold online — ask a parts specialist | |
| 25 | 3237138 | Base Block3237138Version 1106121E | Not sold online | Not sold online — ask a parts specialist | |
| 26 | 3229094 | Proportional Valve3229094 | $2,377.00In stock | ||
| 27 | 3234279 | Oil Filter Cartridge3234279Version 1106126 | $84.00In stock | ||
| 27 | 3234374 | Oil Filter Cartridge3234374Versions 1106120-1106121 | $69.00In stock | ||
| 28 | 3234278 | Diesel Fuel Filter Cartridge3234278Version 1106126 | $84.00In stock | ||
| 28 | 3234373 | Diesel Fuel Filter Cartridge3234373Versions 1106120-1106121 | $90.00In stock | ||
| 29 | 3225925 | Primary Air Filter Cartridge3225925 | $302.00In stock | ||
| 30 | 3225926 | Safety Air Filter Cartridge3225926 | $178.00In stock | ||
| 31 | 3225679 | Suction Pipe 0.35 m3225679 | $150.00In stock | ||
| 32 | 3227629 | Silencer Pipe3227629 | $111.00In stock | ||
| 33 | 3225279 | Clamp3225279 | $27.00In stock | ||
| 34 | 3201423 | Spacer3201423 | $10.00In stock | ||
| 35 | 3234298 | Control Unit3234298 | Not sold online | Not sold online — ask a parts specialist | |
| 36 | 3234262 | Bracket3234262 | Not sold online | Not sold online — ask a parts specialist | |
| 37 | 3234944 | Separator Filter Cartridge3234944 | $100.00In stock |
