IMER Small 50 parts book

Drawing 1/A Vibrating Screen (Old Castle)

3225890 r11 · 2018-0914 numbered positions · 14 rows · 10 listed online

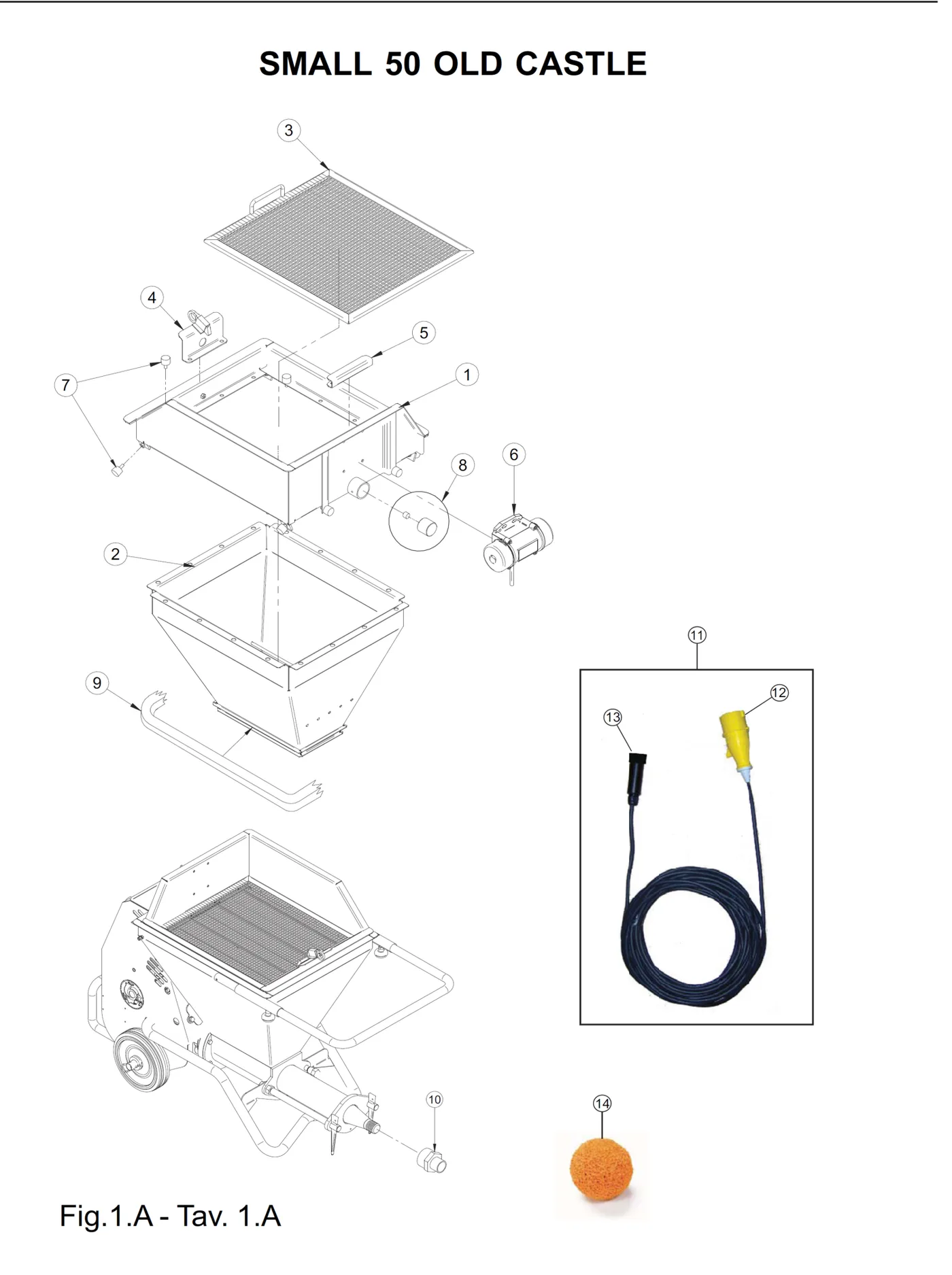

Small 50 Vibrating Screen (Old Castle), exploded view with reference numbers — Select a number on the drawing to see its part and add it to your cart. Hover or tap a row to see where the part sits; Enlarge to zoom in.

Select all 10 orderable partsTick several, then add them in one tap

Small 50 — Vibrating Screen (Old Castle), parts list with prices
Select	Ref	Part no.	Name	Price	Order
	1	3224526	Paint-Finished Vibroscreen3224526	Not sold online	Not sold online — ask a parts specialist
	2	3229160	Vibrating Hopper3229160	$578.00In stock	Quantity of Vibrating Hopper
	3	3224563	Screen Mesh Frame3224563	Not sold online	Not sold online — ask a parts specialist
	4	3229177	Support Bracket3229177	$57.00In stock	Quantity of Support Bracket
	5	3229176	Support Bracket3229176	$36.00In stock	Quantity of Support Bracket
	6	3225197	Micro Vibrator Motor 110V 50-60Hz3225197	$548.00In stock	Quantity of Micro Vibrator Motor 110V 50-60Hz
	7	3224801	Vibration Damper M6x14 60 Shore3224801	$10.00In stock	Quantity of Vibration Damper M6x14 60 Shore
	8	3226027	Magnet Bushing + Magnet3226027	$71.00In stock	Quantity of Magnet Bushing + Magnet
	9	3223995	Seal32239951 m	$10.00In stock	Quantity of Seal
	10	3229190	Fitting3229190Only Italian printed (RACCORDO); uncertain translation	$129.00In stock	Quantity of Fitting
	11	3229189	Electric Extension Cable3229189	$367.00In stock	Quantity of Electric Extension Cable
	12	3227170	Plug 3P+T 110V 16A IP443227170	$83.00In stock	Quantity of Plug 3P+T 110V 16A IP44
	13	3229385	Connector3229385	Not sold online	Not sold online — ask a parts specialist
	14	3224658	Washing Sponge D.253224658	Not sold online	Not sold online — ask a parts specialist
