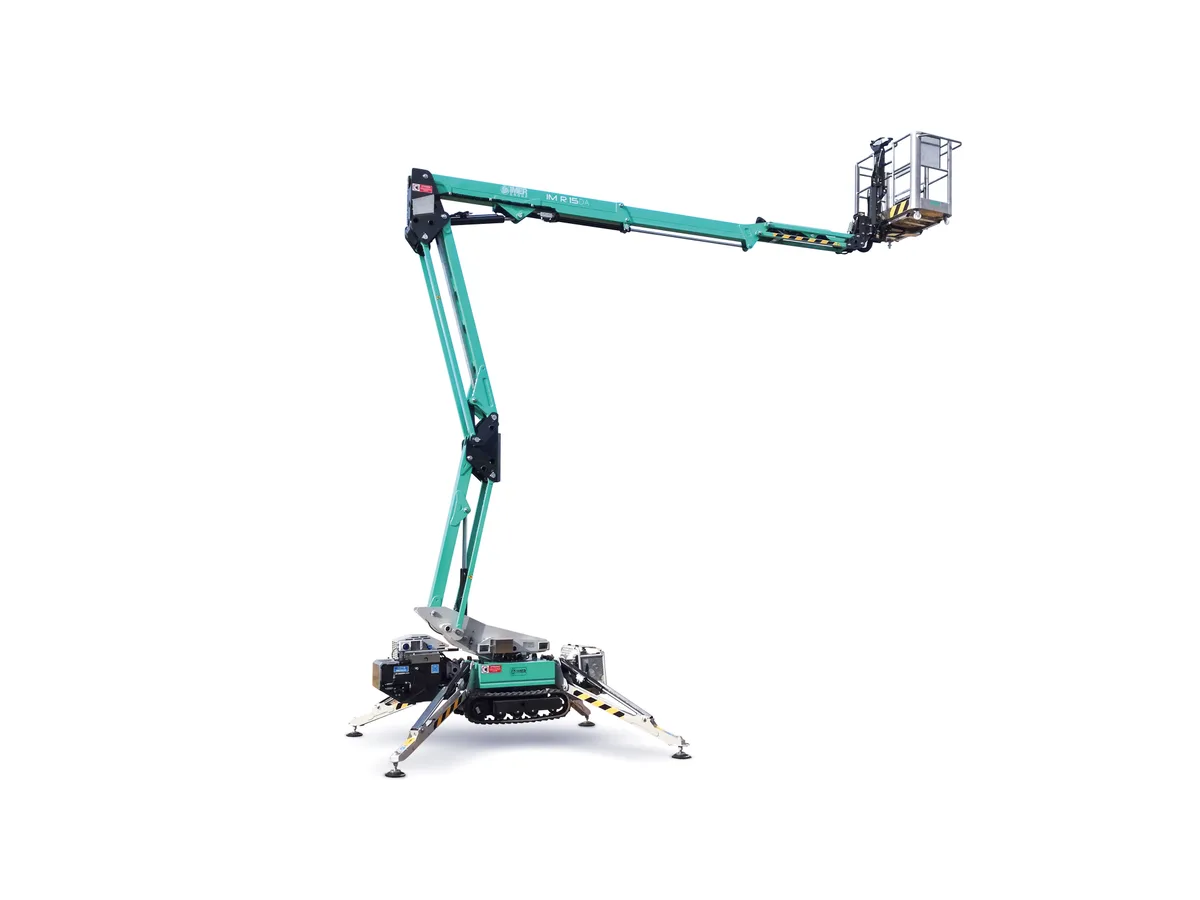

IMER IM R 15 DA Li Lithium Tracked Atrium Lift, 49 ft 6 in Working Height – genuine IMER machine 1128760Free shipping

01About

About this machine

The IMER IM R 15 DA Li (model 1128760) is the lithium-powered version of the double articulated IM R 15 DA atrium lift on rubber tracks, with a 49 ft 6 in working height and a 43 ft platform height, for outdoor and indoor use. The lithium electric motor is 48 V / 5.4 hp AC (4 kW); hydraulically adjustable tracks add stability and traction, and the compact 31 in width gives access in narrow, hard to reach places.

IMER lists a side outreach of 23 ft at 506 lbs, 355° non-continuous rotation, 124° basket rotation, a platform capacity of 510 lb, a lithium machine weight of 4,550 lbs and a driving speed of 1.12 mph. Standard equipment includes automatic outrigger leveling, an air/water outlet and 120V AC power in the platform basket, a removable wireless control box, three travel speeds, a hydraulic jib, load and tip detection sensors, a load cell and an overload sensor.

02Versions

2 versions of the IMER IM R 15

Each has its own page, price and part number
  • 1128760

    49 ft 6 in Working Height

    This version

    Free shipping

    $123,900

    Ships by Nov 24, 2026

IMER IM R 15: all versions, specs and parts

03Specifications

IMER IM R 15 technical data

From the IMER product sheet

Performance

Working height
49' 6"15.10 m
Platform height
43'13.10 m
Side outreach (weight in basket)
23' / 506 lbs7.00 m / 230 kg
Rotation (non-continuous)
355°
Basket rotation
124°
Stabilizer load
3,930 lbs
Driving speed
1.12 mph1.8 km/h
Gradeability
32%

Capacity

Platform capacity
510 lb230 kg

Dimensions

Basket dimensions
57" x 27 1/2" x 43"1.40 x 0.70 x 1.10 m
Transport length (without basket)
14' 5" / 12'4.40 m (3.65 m)
Transport width (without basket)
Min 2' 7" / Max 3' 5"Min 0.79 m / Max 1.06 m
Height in stowed position
Min 6' 6" / Max 6' 11"Min 1.99 m / Max 2.05 m
Overall outrigger footprint
9' 6" x 10'2.92 x 3.08 m

Power

Honda GX390 engine
13 hp9.7 kW
Diesel L100N (optional)
8.9 hp6.6 kW
Lithium electric motor (optional)
48 V / 5.4 hp AC48 V / 4 kW AC

Weight

Machine weight (Lithium)
4,475 lbs (4,550 lbs)2,030 kg (2,064 kg)
