IMER Combicut 200 VAGenuine IMER
Blade diameter
8in
Motor rating
1.75hp
Weight (boxed, includes stand)
48lbs

01Overview

IMER Combicut 200 VA at a glance

Lightweight overhead rail tile saw with an 8 in blade for tile, stone and porcelain cuts up to 24 in with plunge cut.

Used for

  • Tile cutting
  • Stone cutting
  • Porcelain cutting
  • Miter cuts
  • L cuts for door jambs
  • Certified IMER Dealer
  • Ships from the USA
  • Includes side table, protractor, folding stand and 8 in continuous rim porcelain blade
  • High flow water pump with water valve to control mist
  • High impact removable poly water pan with baffles
  • Plunge cuts via cast aluminum cutting head pivoting on a sealed bushing
  • 45 degree cuts by tilting the travel beam
  • Comes assembled; stand requires only 2 bolts

02Shop parts

Shop Combicut 200 VA parts by assembly

104 part numbers · 7 drawings

Popular for the Combicut 200 VA

Ranked by orders, how often the part wears out and availability.

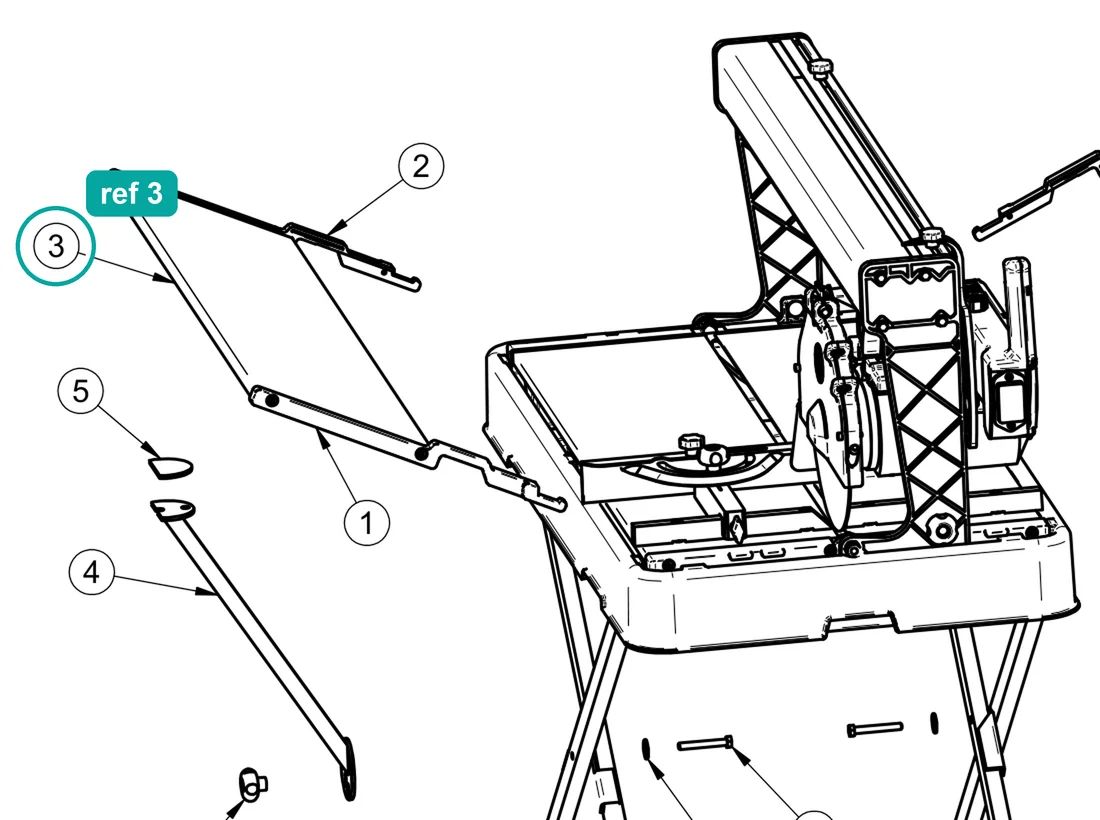

Or pick the assembly. Open a drawing, tap a numbered balloon and add the part to your cart.

03Specifications

Technical data

From the IMER product sheet

General

Model #
1188084

Performance

Blade diameter
8 in
Blade shaft diameter
5/8 in
Max. cutting length (w/ plunge cut)
21 in (24 in)
Max. cutting depth
2.75 in
Blade speed
2800 rpm

Power

Motor rating
1.75 hp 120 v, 15 amp

Weight

Weight (boxed, includes stand)
48 lbs (68 lbs)

Capacity

Water pan capacity
5 gal
Water pump flow
3 gpm

Dimensions

Length (boxed)
35 in (37 in)
Height (boxed)
19 in (22 in)
Width (boxed)
18 in (20 in)

04Manuals

Parts book & manuals

Troubleshooting

Combicut 200 VA not working right?

3 problems from the IMER manual, with the causes, what to do and the parts for each fix.

Open the Combicut 200 VA troubleshooting guide

Answers

Questions about the Combicut 200 VA

All answers

05Quote

Request a formal quote

Tell us the quantity, the delivery ZIP and whether the site has a loading dock or forklift. We reply with price, freight and lead time.
