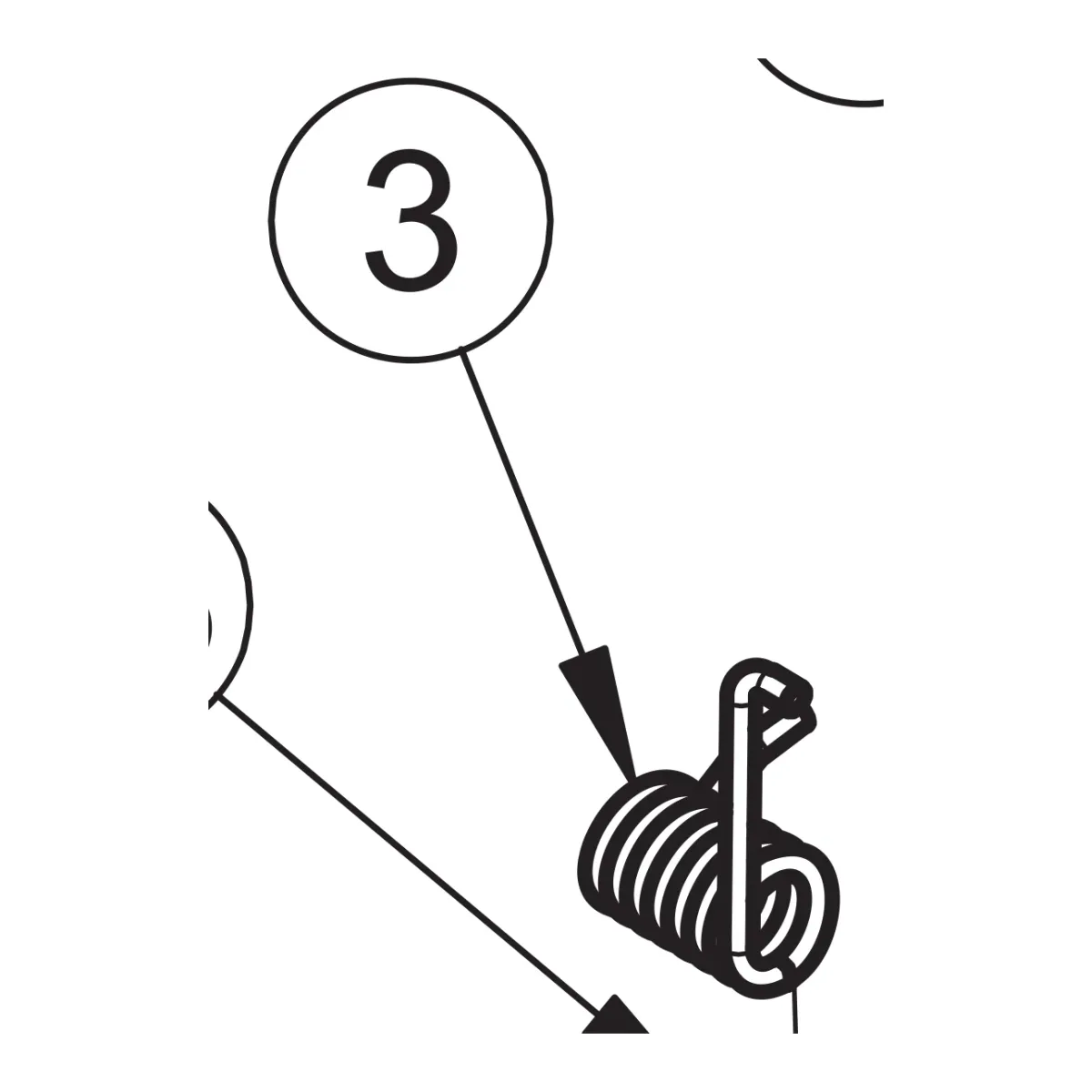

Motor assembly spring – genuine IMER part 3210087

01Where it fits

Where this part sits on your machine

Also on this drawing

All 27 parts on Drawing 4, Blade Protection Motor Assembly
  • 25
    Bushing GFM-1012-6

    3230251

    $10.00In stock

  • 27
    Electric motor fan cover

    3230644

    $31.00In stock

  • 17
    Self-locking nut M10

    2223920

    $10.00In stock

  • 21
    Bolt TCEI 5931 M6×25

    2222541

    $10.00In stock

  • 23
    Nut M6 5588

    2223280

    $10.00In stock

  • 2
    Engine support

    3230255

    $61.00In stock

02Fits

Fits these machines

4 machines · 3 IMER parts books

From IMER parts books 3226123 r07 (2018-09), Combicut 250 VA, 3227118 r14 (2018-09).

03Where it sits

Ref 3 on the Combicut 200 VA drawing

Open full diagram →
Combicut 200 VA — Blade Protection Motor Assembly, parts list
RefPart no.NamePrice
13228553MotorRequest price
23230255Motor SupportIn stock, $61.00
33210087SpringIn stock, $27.00
43226079Blade GuardIn stock, $29.00
53210043Spacer BracketIn stock, $22.00
63210238Inner FlangeIn stock, $117.00
71193849BladeRequest price
83210046Outer FlangeIn stock, $58.00
93226080Blade GuardIn stock, $26.00
102224535WasherIn stock, $10.00
112222587Bolt TSPEI 5933 M8x20In stock, $10.00
123204399Bolt TCEI 5931 M5x25In stock, $10.00
133207884CockIn stock, $11.00
143209060Bolt TE 8.8 5737 M6x35In stock, $10.00
152222001Bolt TE 8.8 5737 M4x20In stock, $10.00
162223352Nut 5588 D.5In stock, $10.00
172223920Nut 7474 M10In stock, $10.00
182223926Nut 7473 M4In stock, $10.00
193210050Spray ShieldIn stock, $28.00
203210053Nut 5588 M12 Z SXRequest price
212222541Bolt TCEI 5931 6x25In stock, $10.00
222224380Washer 6592 D.12x25In stock, $10.00
232223280Nut 5588 M6In stock, $10.00
242223924Nut 7473 M6In stock, $10.00
253230251Bushing GFM-1012-6In stock, $10.00
263230250PinRequest price
273230644Fan CoverIn stock, $31.00

04Specifications

Part details

Part number
3210087(3210-087)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Blade Protection Motor Assembly
Fits
4 machines

This spring is a genuine IMER part, part number 3210087. The IMER parts books for the Combi 200 VA, the Combi 250 VA and the Combi 250/1000 VA - 250/1500 VA list it as ref. 3, "SPRING", in Tav. 4, Blade Protection Motor Assembly. The parts books do not state its function.

Our store lists it for the Combi 200 8" tile saw and the Combi 250 series.

Check part number 3210087 against your saw's parts list before you order.

05Used with

Often replaced together

Wear parts next to it on the same drawing

06Documents

Parts books

Answers

Questions about the machines it fits

All answers

07Shipping & returns

Shipped from the USA

Shipping & delivery →Returns & warranty →

  • Ships from the USA

    Leaves us in 1–3 business days; ground delivery usually takes 5–7 business days.

  • Free shipping over $1,500

    On orders over $1,500 to commercial addresses in the contiguous US.

  • 30-day returns

    30-day returns on unused items with a return authorization.

08Questions

Good to know

Which IMER saws does part 3210087 fit?

The Combicut 200 VA, Combicut 250 VA, Combicut 250/1000 VA and Combicut 250/1500 VA, also known as the Combi 200 and Combi 250 series.
