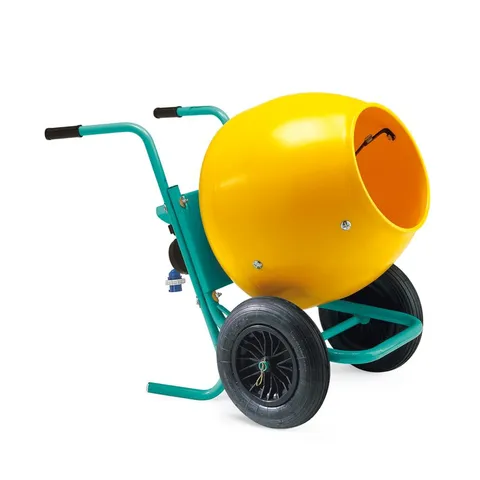

IMER Wheelman II Electric, 1/2 hp Electric, Steel DrumIMER Wheelman II Electric, 5 cu ft Poly Drum
Free shipping
Free shipping
Genuine IMER
Drum capacity
5cu ft
Batch output
2.5cu ft
Motor
1/2hp
Weight
101lbs

01Overview

IMER Wheelman II Electric at a glance

Compact, portable beltless gear-driven multi-mixer with a 1/2 hp 120V motor for mortar, stucco, grout or concrete.

Used for

  • Mortar
  • Stucco
  • Grout
  • Concrete
  • Authorized IMER Dealer
  • Parts ship from IMER USA
  • 30-day returns, restocking fee may apply
  • 1/2 HP, 120V motor with gearbox drive
  • Interchangeable steel or poly drum
  • Pneumatic wheels for easy transport
  • Easy to transport and assemble
  • Optional 355° swivel stand (Item # 1105490)

02Versions

2 versions of the IMER Wheelman II Electric

Each has its own page, price and part number
  • 1105422

    1/2 hp Electric, Steel Drum

    Wheelman II Wheelbarrow Mixer, 1/2 hp Electric, Steel Drum

    Free shipping

    $1,239

    Ships by Nov 25, 2026

  • 1105421

    5 cu ft Poly Drum

    Wheelman II Electric Wheelbarrow Mixer, 5 cu ft Poly Drum

    Free shipping

    $1,349

    Ships by Nov 25, 2026

03Shop parts

Wheelman II Electric parts

The Wheelman II Electric parts book is not online yet. Send us the part number from your parts book or a photo of the serial plate and we find the part: +1 (307) 301-7723.

04Specifications

Technical data

From the IMER product sheet

Capacity

Drum capacity
5 cu ft
Batch output
2.5 cu ft

Power

Motor
1/2 hp 120V / 6 amp

Dimensions

Drum diameter
24 in
Discharge outlet height
8 in / 21 in with stand
Wheel size
14 in pneumatic tires
Operating width (palletized)
26 in (26 in)
Operating length (palletized)
46 in (29 in)
Operating height (palletized)
36 in (27-1/2 in)

Weight

Weight
101 lbs

05Manuals

Parts book & manuals

Need the operator or parts manual? Ask us and we send the right revision for your serial number.

06Quote

Request a formal quote

Tell us the quantity, the delivery ZIP and whether the site has a loading dock or forklift. We reply with price, freight and lead time.
Request a quoteCall +1 (307) 301-7723
