IMER Wheelman II Wheelbarrow Mixer, 1/2 hp Electric, Steel Drum – IMER part 1105422

01About

About this machine

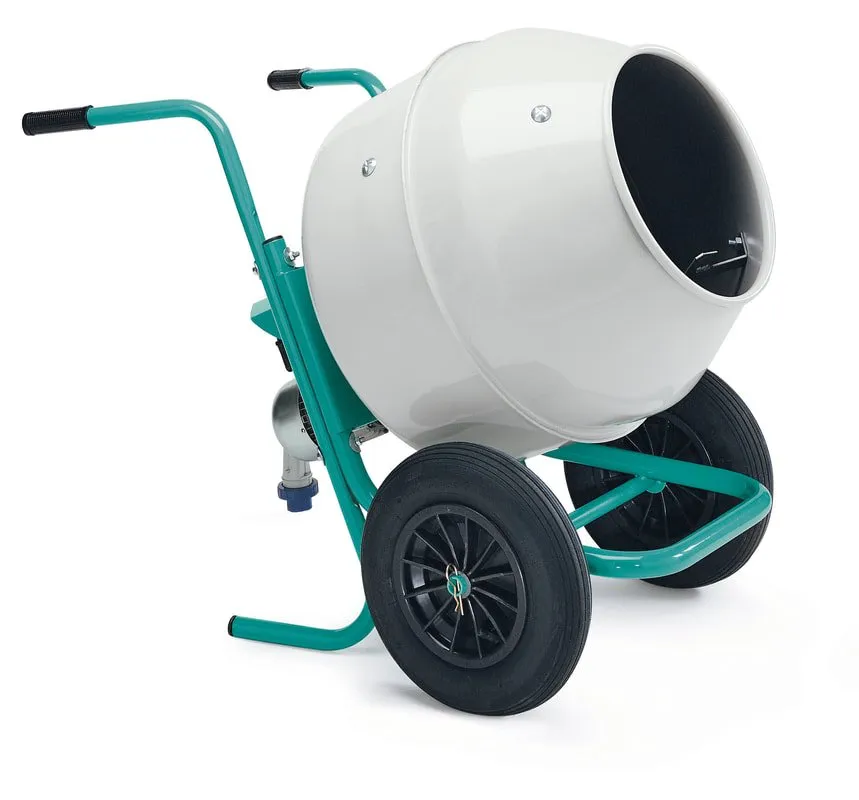

The IMER Wheelman II, model 1105422, is a wheelbarrow-style portable mixer with a steel drum for mortar, stucco, grout and concrete. IMER describes it as a beltless, gear-driven mixer with a 1/2 hp, 120V (6 amp) electric motor and gearbox drive. You can mix, move the load and dump it right at the work area. It has a removable drum that one person can load into a small vehicle.

The 5 cu ft drum is 24 in in diameter and produces a 2.5 cu ft batch. The mixer rolls on 14 in pneumatic tires, weighs 101 lbs and is easy to transport and assemble. Discharge outlet height is 8 in, or 21 in on the optional stand (item # 1105490). Operating dimensions are 26 in wide, 46 in long and 36 in high; palletized, it measures 26 x 29 x 27-1/2 in.

The steel drum version was introduced in 2021. Steel and poly drums are interchangeable; the poly drum version is model 1105421, and model 1105426 uses a Honda 3 hp engine.

02Versions

2 versions of the IMER Wheelman II Electric

Each has its own page, price and part number
  • 1105422

    1/2 hp Electric, Steel Drum

    This version

    $1,239

    In stock

IMER Wheelman II Electric: all versions, specs and parts

03Specifications

IMER Wheelman II Electric technical data

From the IMER product sheet

Capacity

Drum capacity
5 cu ft
Batch output
2.5 cu ft

Power

Motor
1/2 hp 120V / 6 amp

Dimensions

Drum diameter
24 in
Discharge outlet height
8 in / 21 in with stand
Wheel size
14 in pneumatic tires
Operating width (palletized)
26 in (26 in)
Operating length (palletized)
46 in (29 in)
Operating height (palletized)
36 in (27-1/2 in)

Weight

Weight
101 lbs

04Shipping

Shipping and lead time

Ships from the USA
Lead time
Usually ships in 2–3 weeks. IMER machines come from Italy and some are assembled to order or back-ordered, so we confirm the ship date after you order.
Delivery
LTL freight, 7–10 business days in transit. Free to commercial addresses in the contiguous US; residential and/or liftgate delivery adds one flat $75. Ships to the USA and Canada (not to Quebec). Shipping conditions
Returns
30-day returns. Return policy
