IMER Combicut 200 VA Wet Tile Saw, 24 in Max Cut with Plunge – IMER part 1188084

01About

About this machine

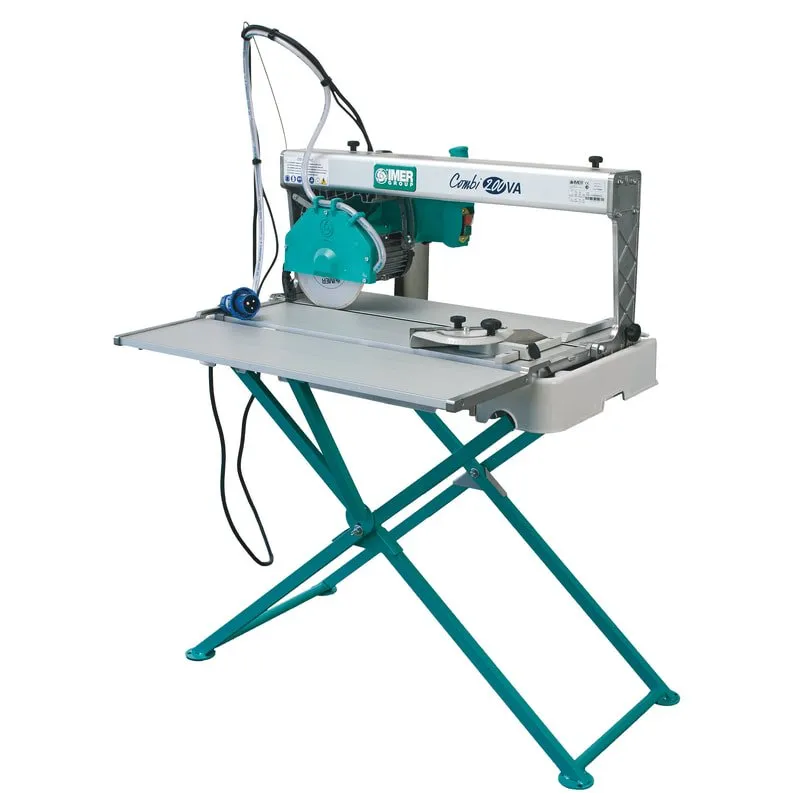

The IMER Combicut 200 VA is a lightweight overhead rail wet tile saw, model number 1188084, for cutting tile, stone and porcelain. It runs an 8 in blade on a 5/8 in shaft at 2800 rpm, driven by a 1.75 hp, 120 V, 15 amp single-phase motor. Maximum cutting length is 21 in, or 24 in with a plunge cut, and maximum cutting depth is 2.75 in.

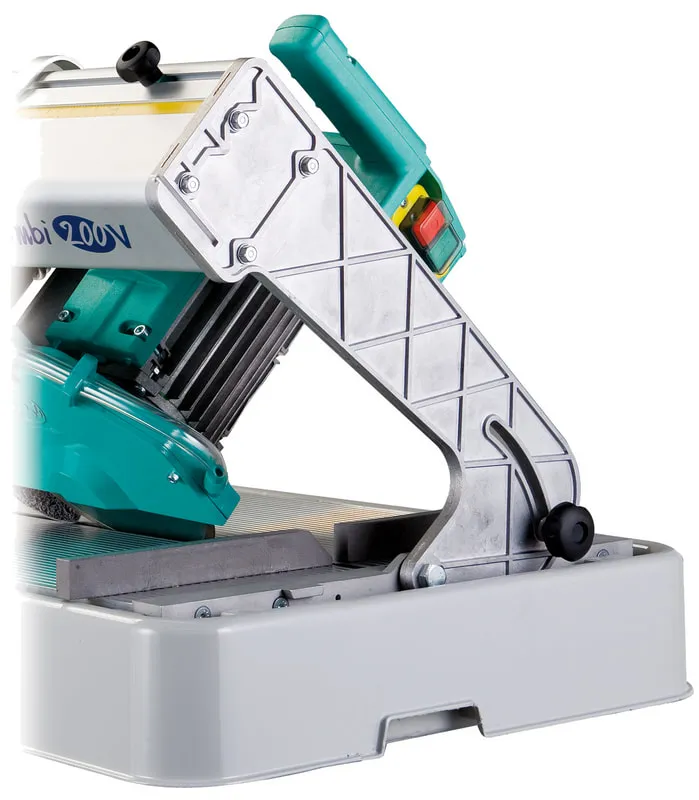

The cast aluminum cutting head pivots on a sealed bushing for plunge cuts, and tilting the travel beam gives 45 degree cuts. A high flow water pump (3 gpm) with a water valve controls the water mist, and the removable high impact poly water pan with baffles holds 5 gal.

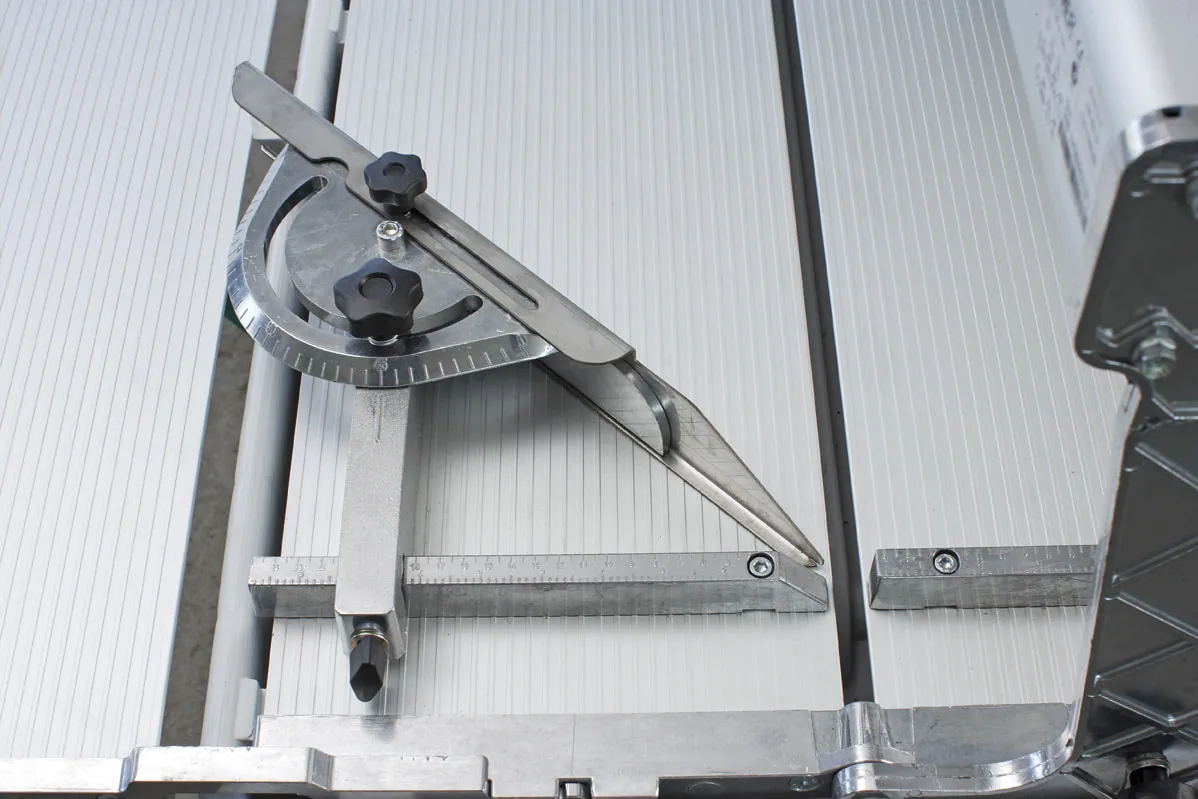

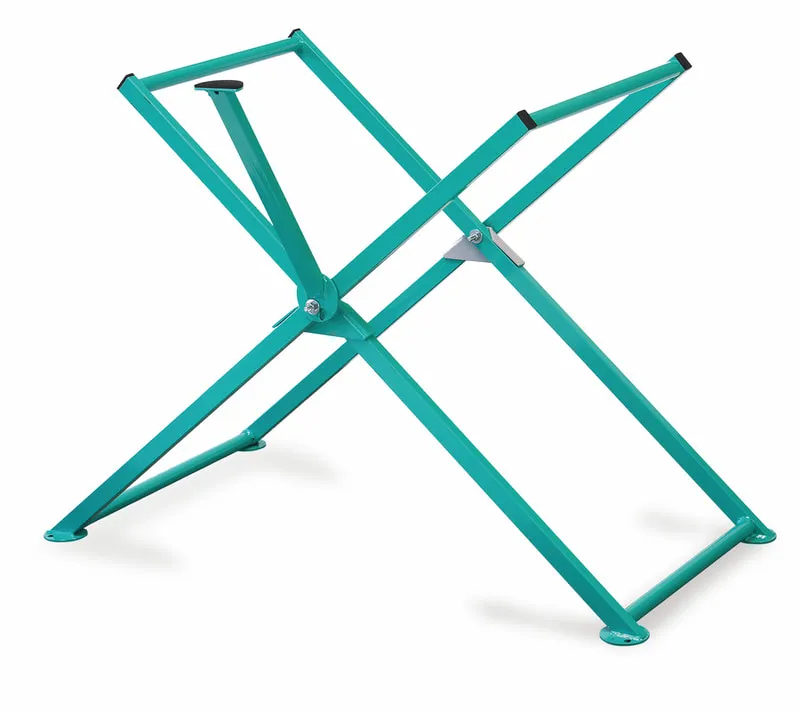

Standard equipment includes an 8 in continuous rim porcelain blade, side table, 180 degree protractor and folding stand. The saw comes assembled, and the stand needs only 2 bolts. It weighs 48 lbs (68 lbs boxed) and measures 35 x 18 x 19 in (L x W x H). It suits rental stores, professional installers, contractors and do-it-yourself users. Replacement blade: part 1193920, 8 in x .060 continuous rim for porcelain and hard materials.

02Specifications

IMER Combicut 200 VA technical data

From the IMER product sheet

General

Model #
1188084

Performance

Blade diameter
8 in
Blade shaft diameter
5/8 in
Max. cutting length (w/ plunge cut)
21 in (24 in)
Max. cutting depth
2.75 in
Blade speed
2800 rpm

Power

Motor rating
1.75 hp 120 v, 15 amp

Weight

Weight (boxed, includes stand)
48 lbs (68 lbs)

Capacity

Water pan capacity
5 gal
Water pump flow
3 gpm

Dimensions

Length (boxed)
35 in (37 in)
Height (boxed)
19 in (22 in)
Width (boxed)
18 in (20 in)

03Parts & manuals

Parts that fit the IMER Combicut 200 VA

104 part numbers · 7 drawings

Parts you can order for the Combicut 200 VA
