IMER Masonry 350 Smart Cut parts book · Drawing 7

Ref 6
Bolt TE 8.8 5737 M8×70 z (ref 6) on the IMER Masonry 350 Smart Cut Carriage drawing
Masonry 350 Smart Cut parts book · Drawing 7, Carriage · Ref 6 · Open full diagram

01Where it fits

Where this part sits on your machine

Also on this drawing

All 17 parts on Drawing 7, Carriage
  • 1
    Washer D.8×24

    2224204

    $10.00In stock

  • 16
    Wheel assembly

    3207397

    $16.00In stock

  • 8
    Screw TSPEI 5933 M6×20

    3214965

    $10.00In stock

  • 7
    Wooden table

    3230990

    $50.00In stock

  • 11
    Screw TTCQ M8×60

    3231183

    $34.00In stock

  • 17
    Bearing 608 2RS1

    3204945

    $10.00In stock

02Fits

Fits these machines

3 machines · 3 IMER parts books

From IMER parts books 3226123 r07 (2018-09), 3231378 r05 (2019-06), 3209290 r11 (2019-02).

03Where it sits

Ref 6 on the Masonry 350 Smart Cut drawing

Open full diagram →

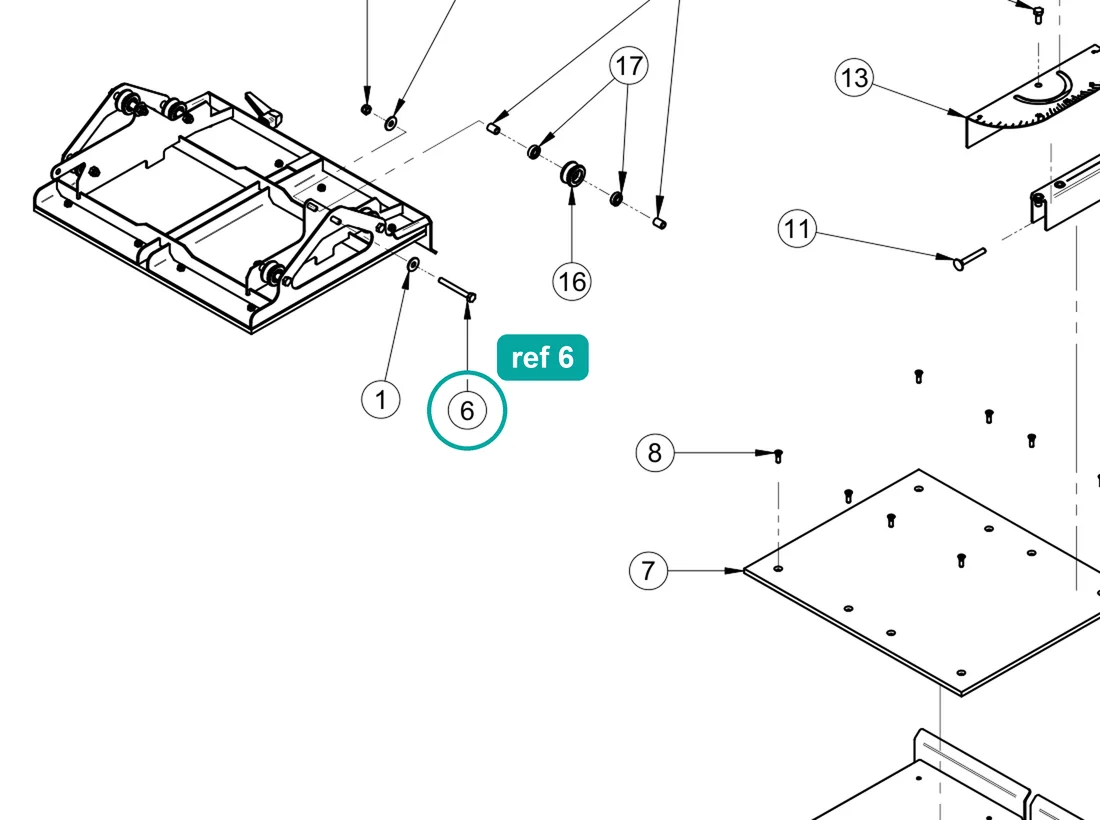

Masonry 350 Smart Cut Carriage, exploded view with reference numbers
IMER Masonry 350 Smart Cut · Drawing 7, Carriage. Select a number on the drawing to find its row.
Masonry 350 Smart Cut — Carriage, parts list
RefPart no.NamePrice
12224204Washer 6593 Ø8x24In stock, $10.00
22223570Nut M8In stock, $10.00
33210623Nut M8Not sold onlineAsk a parts specialist
43236863CarriageIn stock, $375.00
53231075SpacerIn stock, $11.00
62222091Screw TE 5737 M8x70In stock, $10.00
73230990Wooden TableIn stock, $50.00
83214965Screw TSPEI 5933 M6x20In stock, $10.00
103231211Goniometer MountIn stock, $66.00
113231183Screw TTCQ M8x60In stock, $34.00
123231007Spring Lever M8 FIn stock, $17.00
133230971GoniometerIn stock, $108.00
143234670Pin M8x20In stock, $25.00
153208414Spring Lever M8x20 MIn stock, $14.00
163207397WheelIn stock, $16.00
173204945Bearing 608 2RS1In stock, $10.00
183239800PinNot sold onlineAsk a parts specialist

04Specifications

Part details

Part number
2222091(2222-091)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Complete Frame
Fits
3 machines

This is genuine IMER part number 2222091. The official IMER parts books list it as "Bolt TE 8.8 5737 M8x70 Z" and show it for the IMER Combicut 200 VA, Masonry 350 Smart Cut and Workman II 250.

Parts-book listings: Workman II 250, table 1.3 (Workman II 250 Concrete Mixer (1105849-1105850)), ref 78; Combicut 200 VA, table 2 (Complete Frame), ref 7; Masonry 350 Smart Cut, table 7 (Carriage), ref 6.

Check that the part number on your old part or in your machine's parts list matches 2222091 before ordering, or contact us with your machine's model and serial number.
