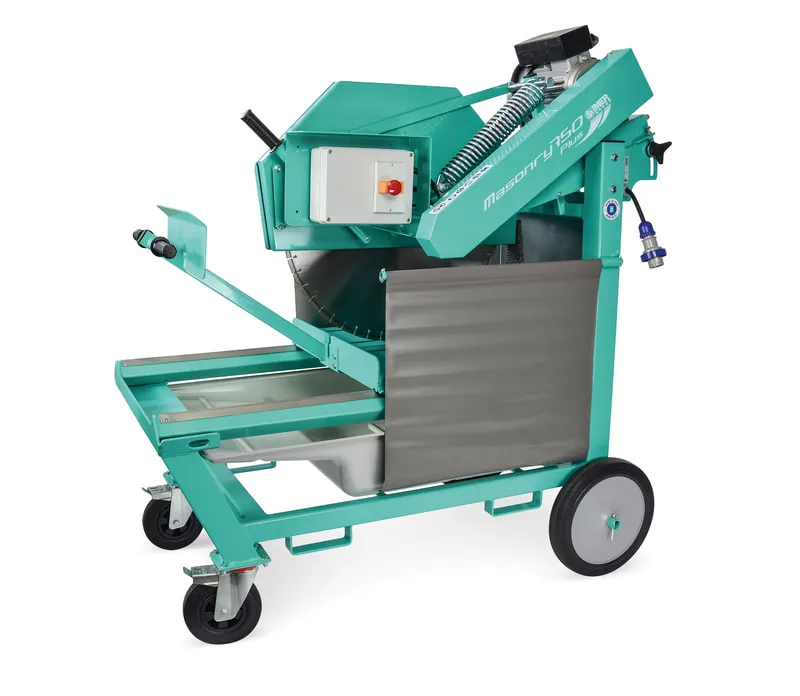

IMER Masonry 750 Plus Block and Stone Saw, 30 in Blade, Single-Phase – IMER part 1188863

01About

About this machine

The IMER Masonry 750 Plus, model 1188863, is an electric block, stone and precast saw with a 30 in blade that cuts 8 in and 10 in blocks in a single pass. This version has a 5.5 hp, 240V/60Hz single-phase motor, and the blade turns at 1700 rpm.

The cutting head pivots on sealed bearings and is lowered with a tilt handle for smooth, controlled plunge cuts, with no foot pedal. The box steel frame and the cutting tray are hand fabricated from heavy-duty steel. A wheel kit with locking wheels lets one person roll the saw around, and lift slots welded into the frame let a forklift handle it. It has a 9 gal water pan and a self-priming centrifugal pump rated at 3 gpm. The saw weighs 440 lbs (495 lbs crated) and is rated below 78 dB. An optional 20 in kit converts it to a 20 in blade, and IMER offers a 45° miter accessory for the Masonry 750, item 1188870.

Use it for blocks, pavers, stone and precast concrete products. Listed 30 in blades: 1193913 (premium diamond, masonry/block) and 1193941 (premium diamond, stone). The 3-phase version is model 1188864 with a 7.5 hp motor.

02Versions

2 versions of the IMER Masonry 750

Each has its own page, price and part number
  • 1188863

    30 in Blade, Single-Phase

    This version

    $6,699

    In stock

IMER Masonry 750: all versions, specs and parts

03Specifications

IMER Masonry 750 technical data

From the IMER product sheet

General

Model # (Single-Phase)
1188863
Model # (3 Phase)
1188864

Capacity

Blade diameter
30 in
Blade shaft diameter
1 in
Water pan capacity
9 gal

Performance

Max. cutting depth (incl. plunge)
18 in (27 in)
Blade speed
1700 rpm
Self-priming centrifugal pump
3 gpm
Noise level
<78 dB

Power

Motor rating
5.5 hp 240V 1ø or 7.5 hp 240V 3ø

Weight

Weight (crated)
440 lbs (495 lbs)

Dimensions

Length (boxed)
61 in
Height (boxed)
63 in
Width (boxed)
33.5 in

04Shipping

Shipping and lead time

Ships from the USA
Lead time
Usually ships in 2–3 weeks. IMER machines come from Italy and some are assembled to order or back-ordered, so we confirm the ship date after you order.
Delivery
LTL freight, 7–10 business days in transit. Free to commercial addresses in the contiguous US on orders over $1,500; residential delivery adds $150 and a liftgate $150. Ships to the USA and Canada (not to Quebec). Shipping conditions
Returns
30-day returns. Return policy
