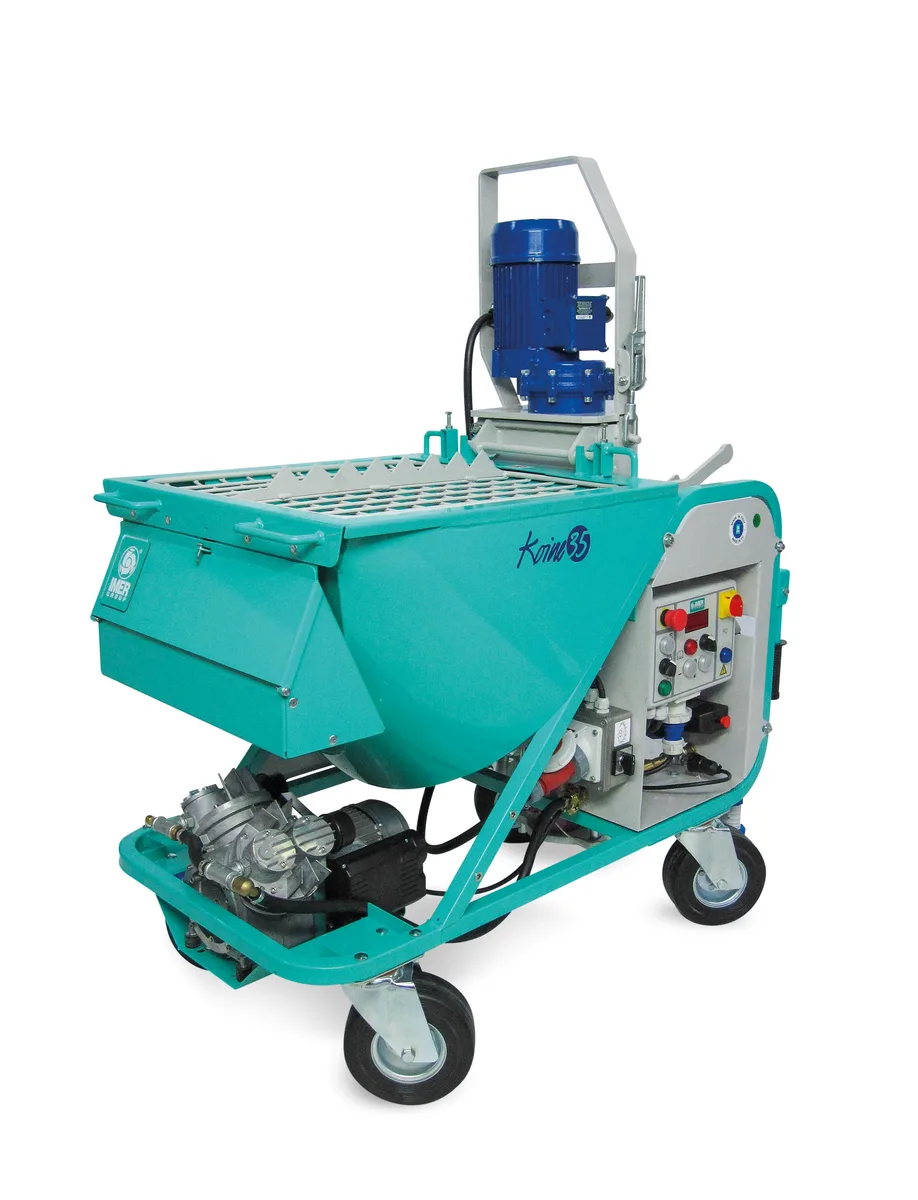

IMER Koine 35 Continuous Mixer Pump, 240V Single Phase, 5 HP – genuine IMER machine 1106315Free shipping

01About

About this machine

The IMER Koine 35 is a high-flow (HF) continuous pump for preblended cementitious materials, capable of continuous mixing, spraying and pumping of pre-blended cementitious and gypsum-based mortars, stucco, fireproofing, self-leveling underlayments and grouts. A single-phase 3 hp motor with turbo boost to 5 hp drives it, with a 1/2 hp feeding impeller motor and a 1 hp water pump.

The 4-speed material flow rate delivers up to 120 50-lb bags of self-leveling per hour (up to 60 cu ft/hr), with a maximum pumping distance of 300 ft. IMER lists a 36 in loading height, dimensions of 27 W x 62 L x 47 H in and a weight of 510 lbs; it includes an adjustable D8-1.5 rotor/stator, a turbo mixer kit with a material delivery pressure gauge, an inverter-controlled 4-speed control panel and a dust grate with a vacuum port.

02Specifications

IMER Koine 35 technical data

From the IMER product sheet

Other

Machine code
1106048
Water connection
3/4"
Noise emission level, LpA at 1 m
<76 dB(A)
Noise emission level, LWA
90 dB(A)

Electrical

Main power supply
220 V / 60 Hz
Controls power supply
24 V
Electrical connection, single-phase connector
220 V, fuses 32 A, cable 3x2.5 mmq (up to 40 m)
Generator set (minimum)
12 kVA
Maximum power
3.77 kW

Motor

Mixer gearmotor
2.2 kW, 9.9 A, 320 rpm
Cell wheel gearmotor
0.37 kW, 2 A, max 16 rpm
Water pump
0.45 kW, 3.3 A
Compressor IM 250
0.75 kW, 5.6 A, 250 Nl/min

Pump

Water pressure switch setting (min/max)
1.9/2.1 bar
Pressure stabiliser setting
1.9 bar
Mixer gearmotor pressure switch setting (min/max)
0.9/1.2 bar
Compressor pressure switch setting (min/max)
1.8-2.8 bar
Compressor safety valve setting
4 bar

Performance

Material flow rate with pump Ecostar (approx.)
8-11-15 l/min
Maximum pressure
20 bar
Max pumping distance, 25 mm hose
15 m
Max pumping distance, 35 mm hose
30 m

Dimensions

Dimensions (X x Y x Z)
1560 x 730 x 1190 mm
Loading height
900 mm

Capacity

Hopper capacity
110 l

Weight

Weight, pump gearmotor
41 kg
Weight, mixing chamber
28.5 kg
Weight, machine body
162.5 kg
Weight, compressor
23 kg
Weight, total
255 kg

03Parts & manuals

Parts that fit the IMER Koine 35

66 part numbers · 1 drawings

Parts you can order for the Koine 35

04Shipping

Shipping and lead time

Ships from the USA
Lead time
Usually ships in 2–3 weeks. IMER machines come from Italy and some are assembled to order or back-ordered, so we confirm the ship date after you order.
Delivery
LTL freight, 7–10 business days in transit. Free to commercial addresses in the contiguous US; residential and/or liftgate delivery adds one flat $75. Ships to the USA and Canada (not to Quebec). Shipping conditions
Returns
30-day returns. Return policy
