Cable clamp PG 13.5 – genuine IMER part 3201216

01Where it fits

Where this part sits on your machine

Also on this drawing

All 43 parts on Drawing 5, Arm Assembly
  • 32
    Electric motor

    3231359

    $1,036.00In stock

  • 21
    Capacitor

    3225049

    $170.00In stock

  • 40
    Electrical enclosure

    3231367

    $25.00In stock

  • 18
    Gasket

    3230972

    $22.00In stock

  • 3
    Bolt M5×15

    2222465

    $10.00In stock

  • 16
    Red/green push button on/off switch 115V

    3210233

    $91.00In stock

02Fits

Fits these machines

4 machines · 4 IMER parts books

From IMER parts books 3231378 r05 (2019-06), 3211212 r03 (2018-09), 3230425 r07 (2019-02), 3226875 r16 (2018-09).

03Where it sits

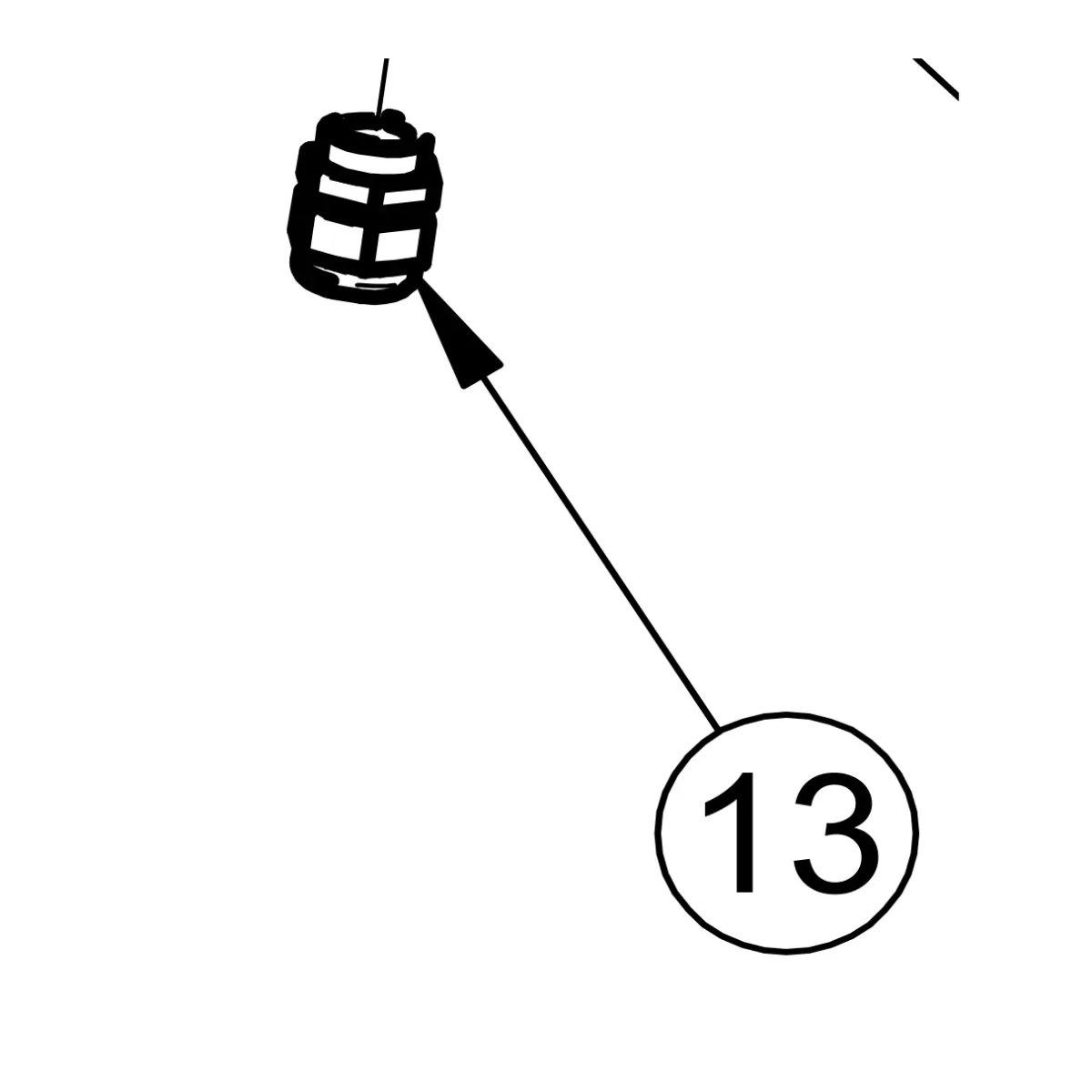

Ref 13 on the Masonry 350 Smart Cut drawing

Open full diagram →
Masonry 350 Smart Cut — Arm Assembly, parts list
RefPart no.NamePrice
12204540Bearing 6205 2RSIn stock, $13.00
22222060Screw TE M8x20 5739In stock, $10.00
32222465Screw Trilobular TC PH M5x15In stock, $10.00
42222515Screw TCEI M8x16 5931In stock, $10.00
52222541Screw TCEI M6x25 5931In stock, $10.00
62222607Screw TSPEI M6x20 5933In stock, $10.00
72223650Nut M10 5588In stock, $10.00
82224140Washer D.8x18 6593In stock, $10.00
92224204Washer D.8x24 6593In stock, $10.00
102227240Stop Ring E30 7435In stock, $10.00
112227700Stop Ring I52 7437In stock, $10.00
122229259Key 6x6x14In stock, $10.00
133201216Cable Clamp PG 13.5In stock, $10.00
143206163Threaded Insert M6Not sold onlineAsk a parts specialist
153208452Plug GPN 320In stock, $10.00
163210233SwitchIn stock, $91.00
173227465Key 6x6x16In stock, $10.00
183230972GasketIn stock, $22.00
193231742Head SpringIn stock, $51.00
203231077PivotIn stock, $238.00
213225049CapacitorIn stock, $170.00
223231010Bushing GFM-3034-20In stock, $15.00
233231011Handwheel M12x40In stock, $16.00
243231030Grub Screw D.10x25 5925In stock, $10.00
253231031Grub Screw D.10x25 5927In stock, $10.00
263231076SpacerIn stock, $24.00
273231210Safety Washer D.12x24In stock, $10.00
283231350Blade ShaftIn stock, $135.00
293231351Oil Retainer 52x25x8Not sold onlineAsk a parts specialist
303231352Self-Tapping Screw TE D.4.8x9.5 6950In stock, $10.00
313237359ArmNot sold onlineAsk a parts specialist
323231359Electric MotorIn stock, $1,036.00
333233082Oil Retainer 25x35x7In stock, $27.00
343237356GuardIn stock, $60.00
353231361PulleyNot sold onlineAsk a parts specialist
363231362PulleyIn stock, $55.00
373237357GuardNot sold onlineAsk a parts specialist
383237358GuardIn stock, $137.00
393231365BeltIn stock, $104.00
403231367Electrical EnclosureIn stock, $25.00
413231368SpacerIn stock, $37.00
423237190Lower PlateNot sold onlineAsk a parts specialist
433237188Upper PlateNot sold onlineAsk a parts specialist

04Specifications

Part details

Part number
3201216(3201-216)
Brand
IMER (genuine OEM)
Condition
New
Size
PG 13.5 (parts-book note)
Assembly
Arm Assembly
Fits
4 machines

This cable clamp PG 13.5 is a genuine IMER part, part number 3201216. The IMER Step-Up 120 parts book lists it as ref. 13 in Table 14.3 of the mixer offered as an optional accessory for the Step-Up 120.

The same part number is listed as cable clamp PG 13.5 on the Mortarman 120 Plus tank (Table 2, ref. 17) and in the Masonry 350 Smart Cut arm assembly (Table 5, ref. 13).

Check the part number against the parts book for your machine before ordering, or contact us with your machine's model and serial number.

05Used with

Often replaced together

Wear parts next to it on the same drawing

06Documents

Parts books

Guides

Guides for this part

Answers

Questions about the machines it fits

All answers

07Shipping & returns

Shipped from the USA

Shipping & delivery →Returns & warranty →

  • Ships from the USA

    Leaves us in 1–3 business days; ground delivery usually takes 5–7 business days.

  • Free shipping over $1,500

    On orders over $1,500 to commercial addresses in the contiguous US.

  • 30-day returns

    30-day returns on unused items with a return authorization.

Fit check

Not sure it fits?

Send us the model and serial number from the machine’s serial plate, or a photo of it. A parts specialist checks the fit against the IMER parts books before the part ships.
