01About
About this machine

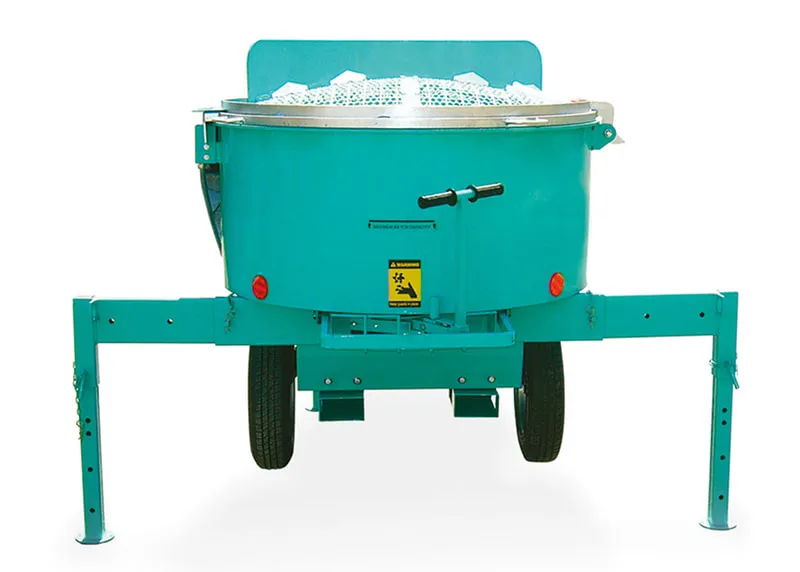

The IMER Mix 750 Mortarman, model 1194648, is a towable vertical shaft paddle mixer powered by a 13 HP Honda GX gasoline engine with electric start.

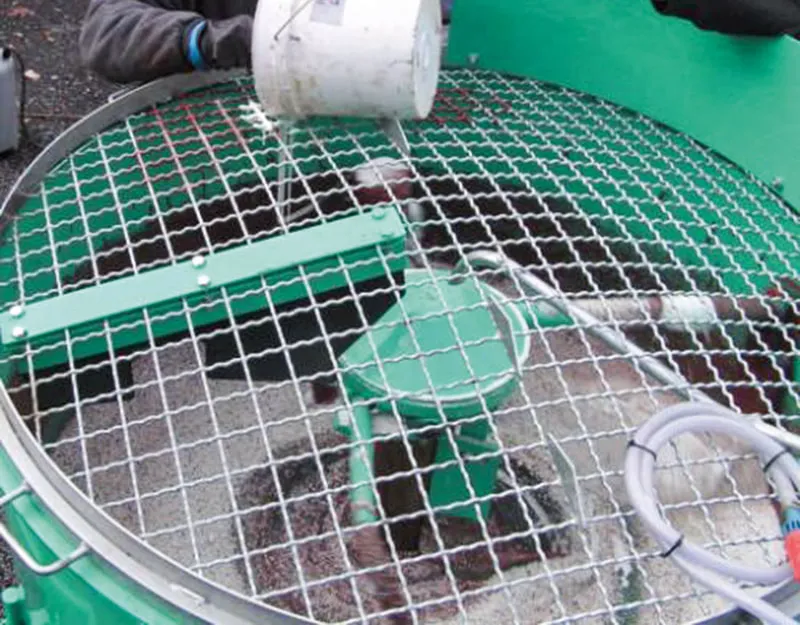

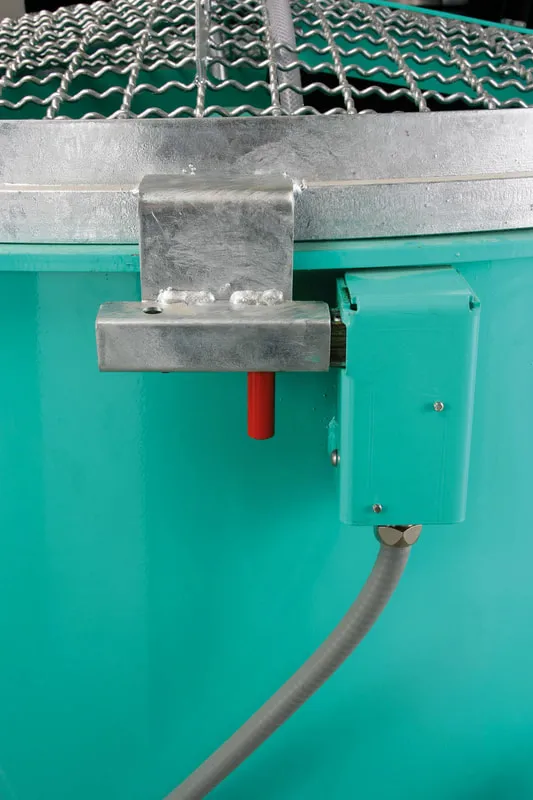

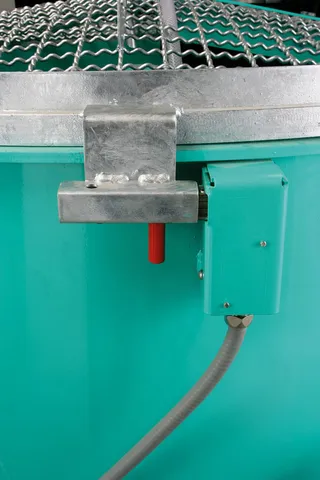

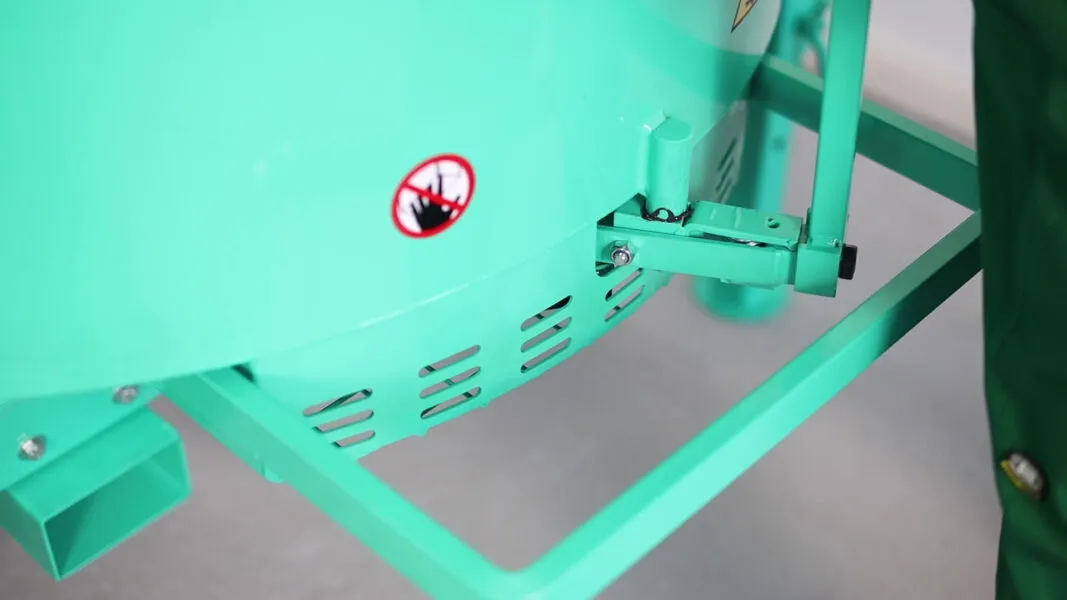

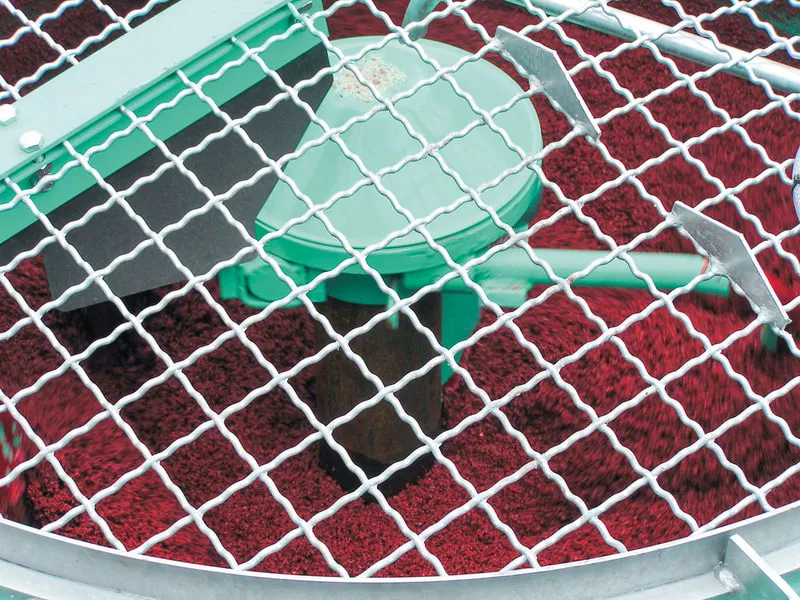

The 22 cu ft drum has a 52 in diameter and produces an 18 cu ft batch of mortar every three to four minutes, with a maximum aggregate size of 3/8 in. An auto shutdown hinged safety grate with an integrated bag breaker covers the drum, and an easy dump handle discharges the load. Extra wide stability legs slide outward and adjust up or down to set the discharge outlet height between 23 in and 29 in.
The mixer tows on 22 in pneumatic wheels and has forklift pockets for placement on site. It weighs 1,588 lbs, measures 90 in long, 63 in wide and 62 in high, and has a noise level below 79 dB. Typical uses include mortar for masonry, stucco, grout, fireproofing and refractory mixes, and precast work.
02Versions
6 versions of the IMER Mix 750
03Specifications
IMER Mix 750 technical data
04Parts & manuals
Parts that fit the IMER Mix 750
Parts you can order for the Mix 750
05Shipping
Shipping and lead time
- Lead time
- Usually ships in 2–3 weeks. IMER machines come from Italy and some are assembled to order or back-ordered, so we confirm the ship date after you order.
- Delivery
- LTL freight, 7–10 business days in transit. Free to commercial addresses in the contiguous US; residential and/or liftgate delivery adds one flat $75. Ships to the USA and Canada (not to Quebec). Shipping conditions
- Returns
- 30-day returns. Return policy
