01About
About this machine

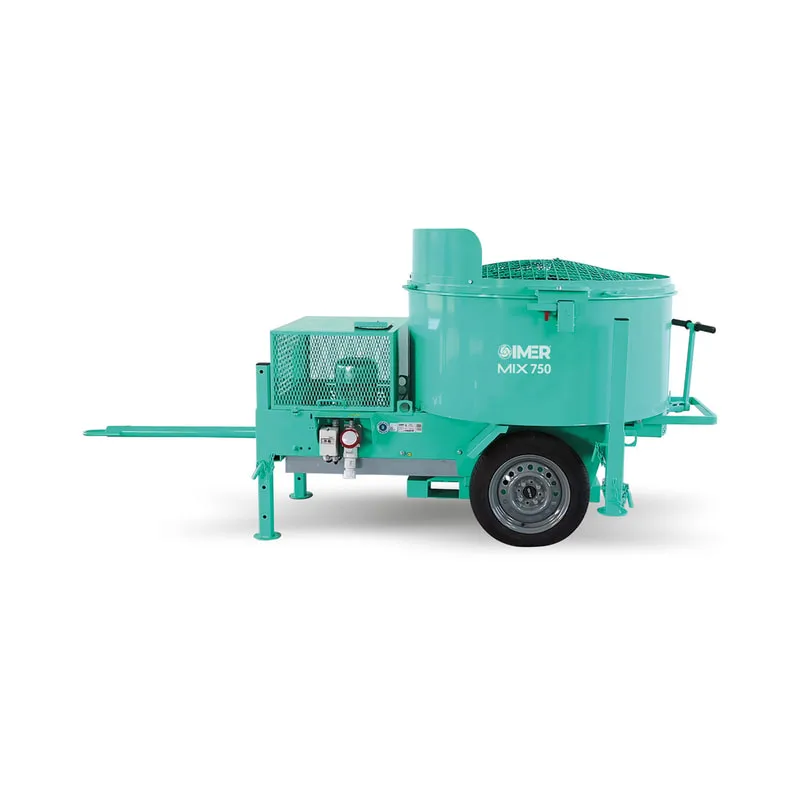

The IMER Mix 750 (Mortarman), model 1194646, is a towable vertical shaft mortar mixer with a 7.5 hp, 480V, 3-phase electric motor. It suits precast operations and large masonry jobs that mix mortar, stucco, grout, fireproofing or refractory material in volume.

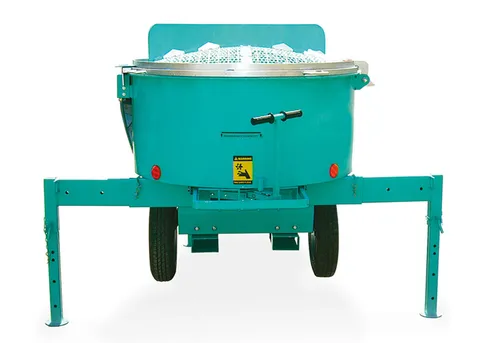

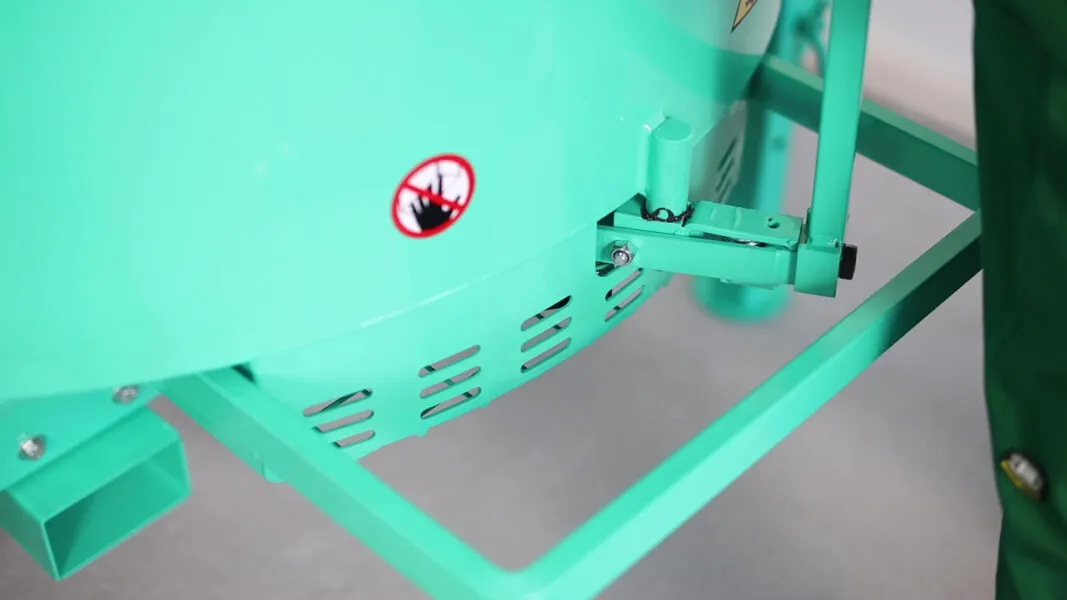

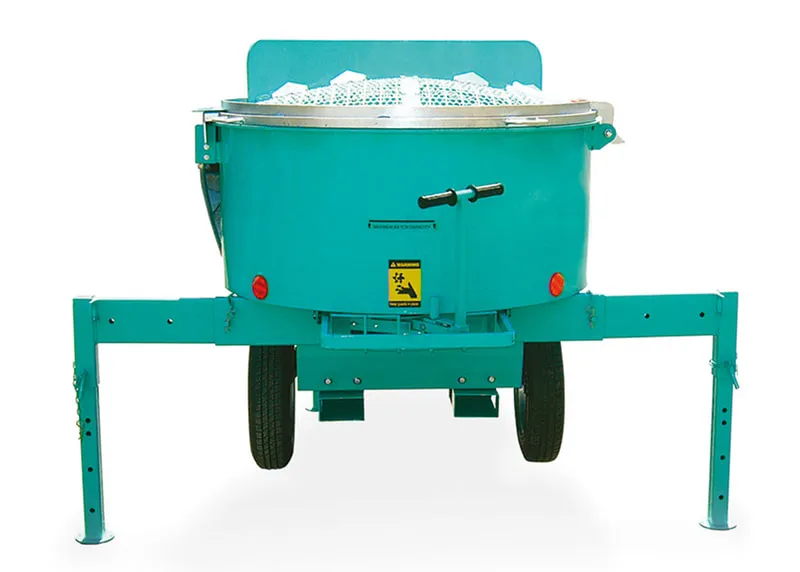

Its 22 cu ft drum, 52 in in diameter, produces an 18 cu ft batch every three to four minutes and accepts aggregate up to 3/8 in. A dump handle discharges the load, and extra-wide stability legs slide outward and adjust up or down to set the outlet height from 23 in to 29 in.

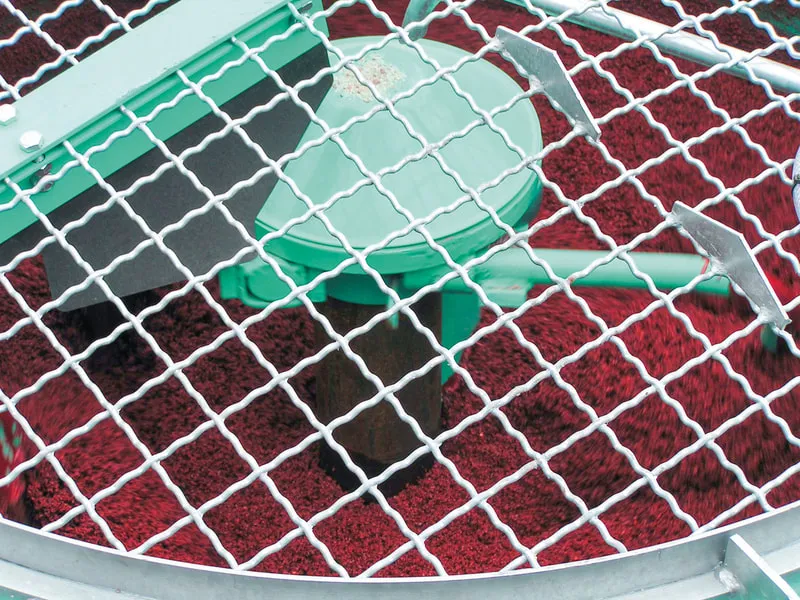

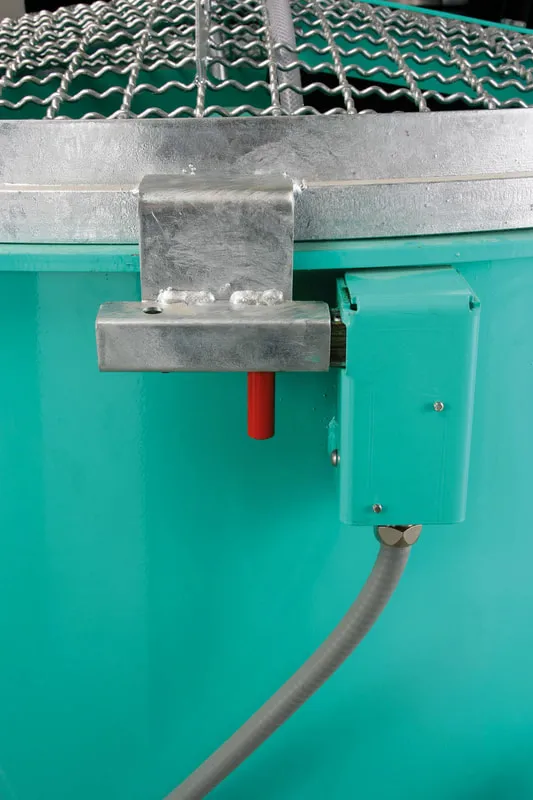

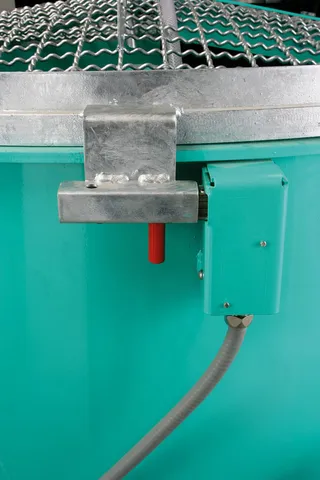

The drum is covered by an auto-shutdown hinged safety grate with an integrated bag breaker. The mixer tows on 22 in pneumatic highway tires with torsion suspension and a hitch, and forklift pockets help with placement on the job site. It weighs 1,588 lbs, measures 90 x 63 x 62 in (L x W x H) and runs below 79 dB.
02Versions
6 versions of the IMER Mix 750
03Specifications
IMER Mix 750 technical data
04Parts & manuals
Parts that fit the IMER Mix 750
Parts you can order for the Mix 750
05Shipping
Shipping and lead time
- Lead time
- Usually ships in 2–3 weeks. IMER machines come from Italy and some are assembled to order or back-ordered, so we confirm the ship date after you order.
- Delivery
- LTL freight, 7–10 business days in transit. Free to commercial addresses in the contiguous US on orders over $1,500; residential delivery adds $150 and a liftgate $150. Ships to the USA and Canada (not to Quebec). Shipping conditions
- Returns
- 30-day returns. Return policy
