About this machine

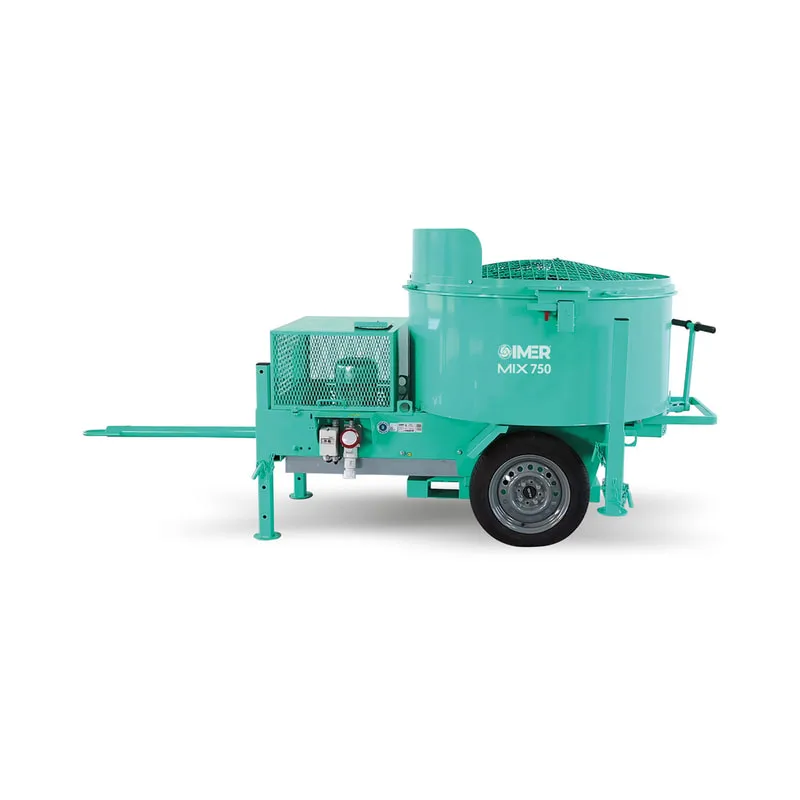

The IMER Mix 750 (Mortarman), model 1194647, is a towable vertical shaft mortar mixer with a 7.5 hp, 600V, 3-phase electric motor. It is used for high-output masonry, stucco, grout, fireproofing and refractory work and in precast operations.

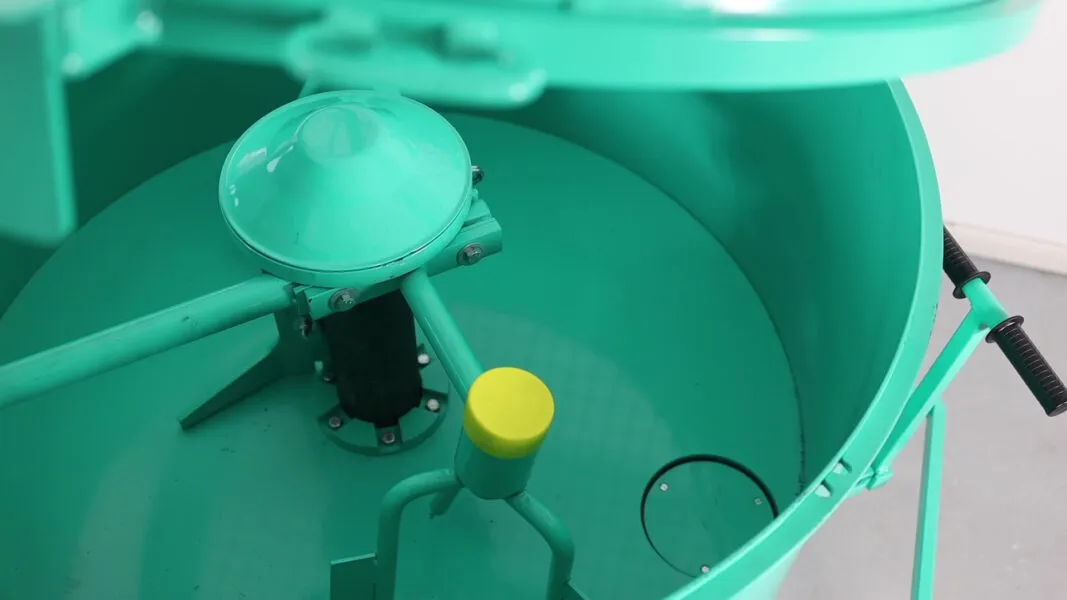

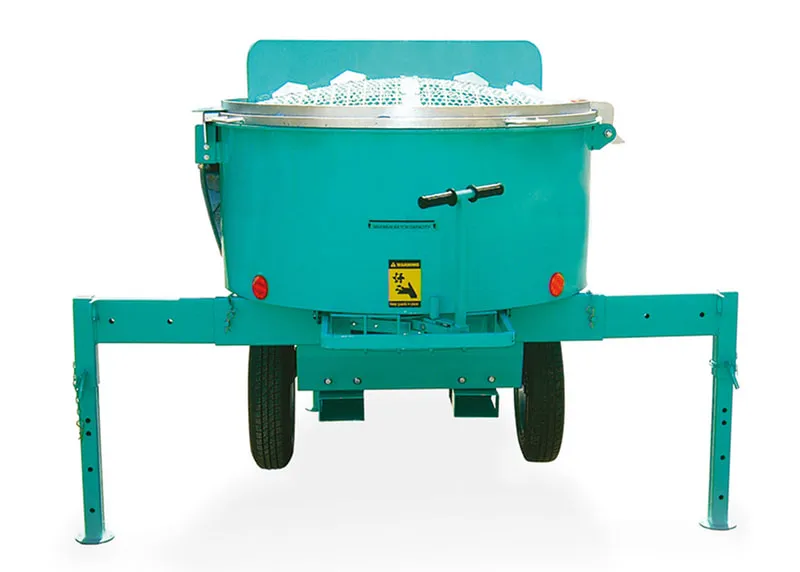

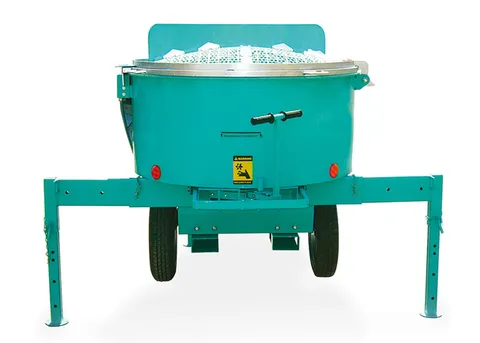

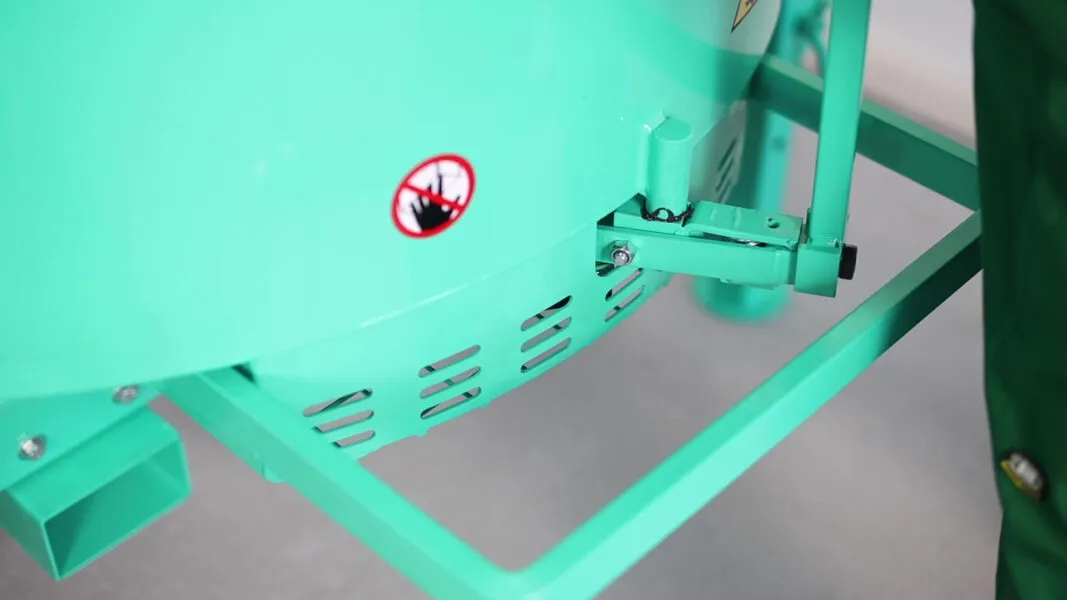

The 22 cu ft drum produces an 18 cu ft batch every three to four minutes. Drum diameter is 52 in and maximum aggregate size is 3/8 in. A dump handle discharges the load, and extra-wide stability legs slide outward and adjust up or down to set the outlet height between 23 in and 29 in.

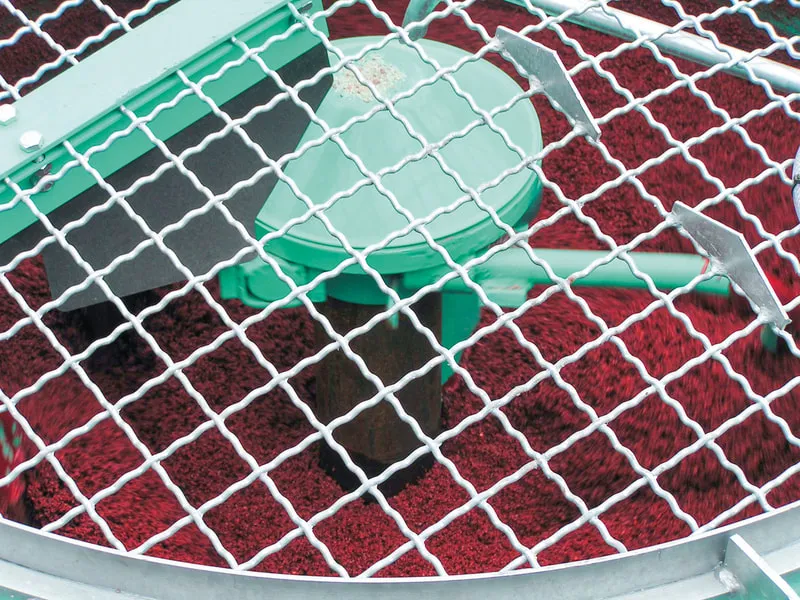

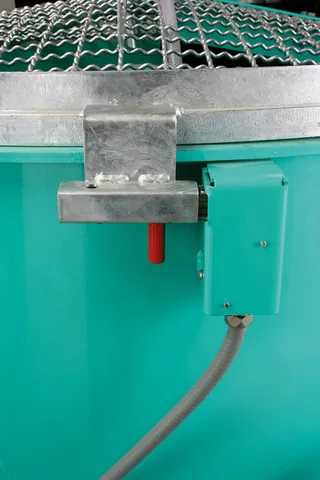

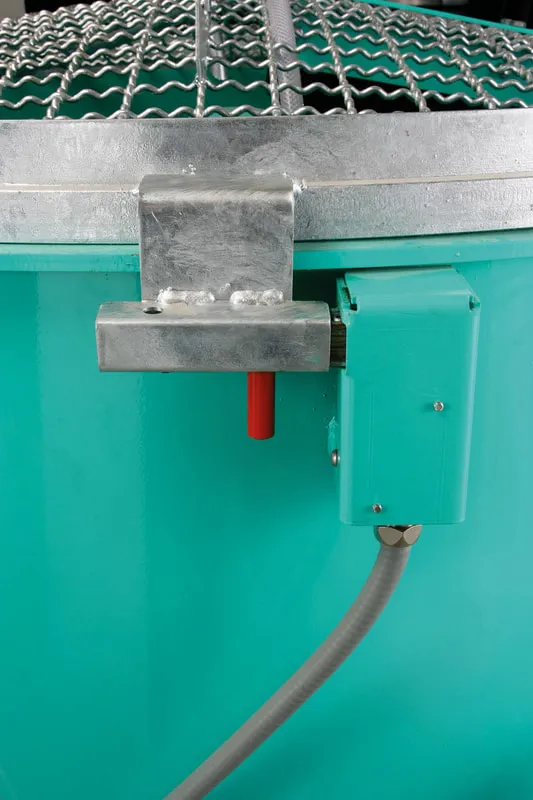

An auto-shutdown hinged safety grate with an integrated bag breaker covers the drum. For transport the mixer has a hitch, 22 in pneumatic highway tires and torsion suspension, plus forklift pockets for placement on site. Noise level is below 79 dB.
02Versions
6 versions of the IMER Mix 750
03Specifications
IMER Mix 750 technical data
04Parts & manuals
Parts that fit the IMER Mix 750
Parts you can order for the Mix 750
05Shipping
Shipping and lead time
- Lead time
- Usually ships in 2–3 weeks. IMER machines come from Italy and some are assembled to order or back-ordered, so we confirm the ship date after you order.
- Delivery
- LTL freight, 7–10 business days in transit. Free to commercial addresses in the contiguous US; residential and/or liftgate delivery adds one flat $75. Ships to the USA and Canada (not to Quebec). Shipping conditions
- Returns
- 30-day returns. Return policy
