This is genuine IMER part number 3224855. The official IMER parts books list it as "Reflector Yellow" and show it for the IMER Booster 15, Prestige 300 and Step-Up 120.

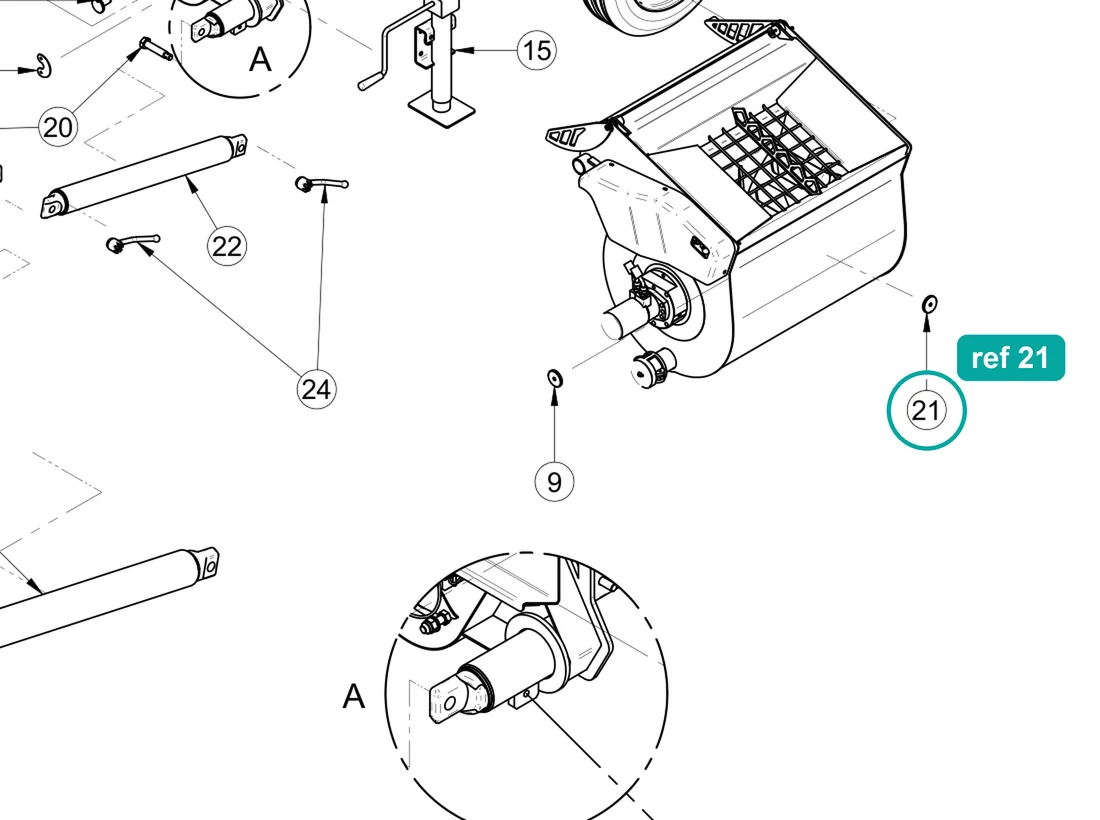

Parts-book listings: Step-Up 120, table 2 (Street Version With Mixer), ref 25; Prestige 300, table 1 (Machine Structure - Front), ref 21; Prestige 300, table 2 (Machine Structure - Rear), ref 9; Prestige 300, table 3 (Mixing Machine), ref 28; Booster 15, table 2 (Lights Bar), ref 5; Booster 15, table 3 (Machine Frame and Bodywork), ref 37.
Check that the part number on your old part or in your machine's parts list matches 3224855 before ordering, or contact us with your machine's model and serial number.
