IMER Workman II 350 Towable Multi-Mixer, 12 cu ft, Without Motor – IMER part 1105856

01About

About this machine

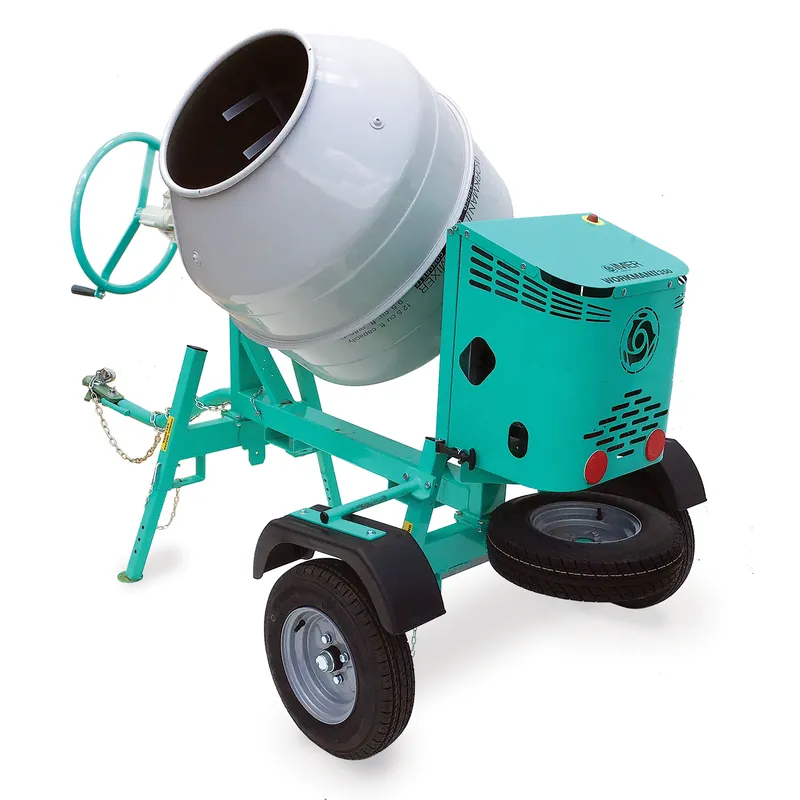

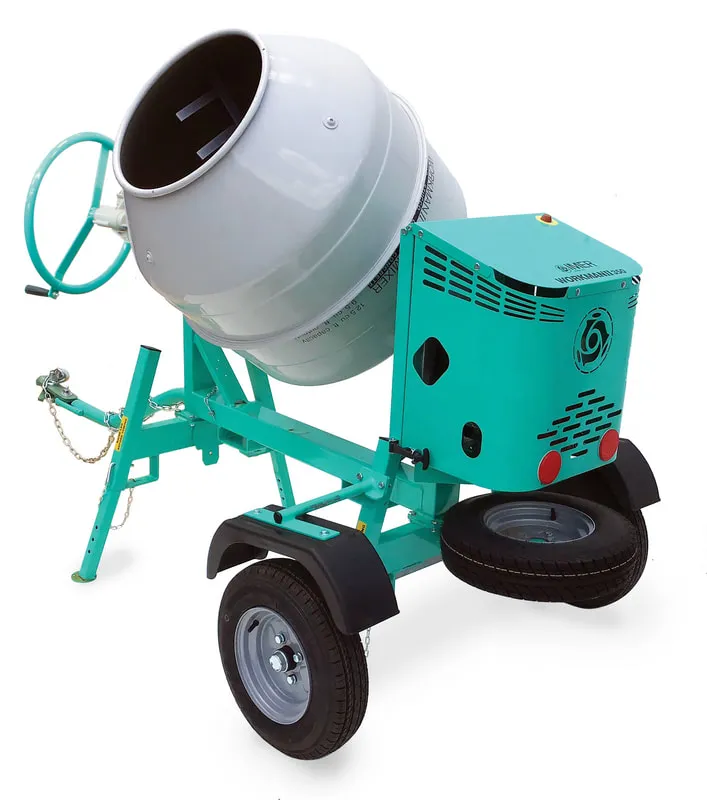

The IMER Workman II 350, model 1105856, is a towable steel-drum multi-mixer supplied without a motor or engine. It is built to mix mortar, stucco, grout or concrete, with a 12 cu ft drum, a 9.5 cu ft batch output and up to 15 x 80 lb bags of concrete per batch.

The drum is driven by a direct drive gearbox sealed for life, with no external drive gears. The Posi-lock system locks and unlocks automatically so the drum can be stopped in any position, and aggressive paddles give fast, complete mixing. Drum diameter is 34-3/4 in and the discharge outlet height is 26-1/2 in.

For towing and handling, the mixer has a box steel frame, torsion bar suspension, pneumatic wheels, impact-resistant fenders and forklift pockets. A tow hitch ball adapter and a spare tire are included. Powered versions are model 1105855 (Honda GX 160 5.5 hp gas), 1105862 (120V 1.5 hp) and 1105863 (240V 1.5 hp).

02Versions

4 versions of the IMER Workman II 350

Each has its own page, price and part number
  • 1105856

    12 cu ft, Without Motor

    This version

    $3,549

    In stock

IMER Workman II 350: all versions, specs and parts

03Specifications

IMER Workman II 350 technical data

From the IMER product sheet

Capacity

Drum capacity
12 cu ft
Batch output
9.5 cu ft

Power

Gas motor
Honda GX 160, 5.5 hp
Electric motor
120V / 240V 1.5 hp

Dimensions

Drum diameter
34-3/4 in
Discharge outlet height
26-1/2 in
Width (palletized)
50 (50) in
Length (palletized)
76-1/2 (86) in
Height (palletized)
56 (72) in

Weight

Weight
650 lbs

Performance

Noise level
<79 dB

Model numbers

Gas / 120V / 240V / less power
1105855 / 1105862 / 1105863 / 1105856

04Shipping

Shipping and lead time

Ships from the USA
Lead time
Usually ships in 2–3 weeks. IMER machines come from Italy and some are assembled to order or back-ordered, so we confirm the ship date after you order.
Delivery
LTL freight, 7–10 business days in transit. Free to commercial addresses in the contiguous US; residential and/or liftgate delivery adds one flat $75. Ships to the USA and Canada (not to Quebec). Shipping conditions
Returns
30-day returns. Return policy
