IMER Workman II 350 Towable Multi-Mixer, 12 cu ft, 120V Electric – IMER part 1105862Free shipping

01About

About this machine

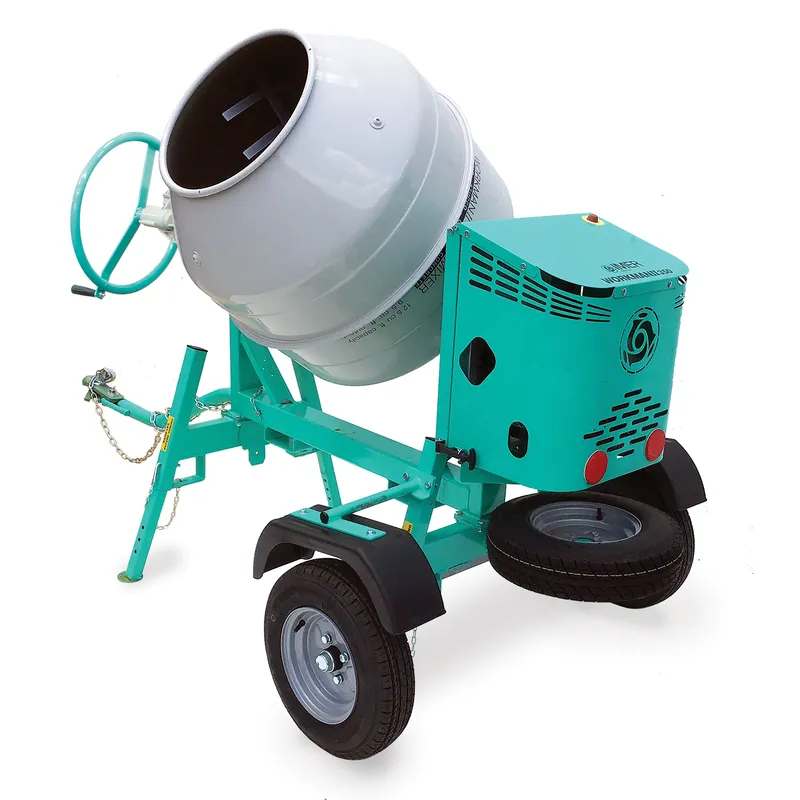

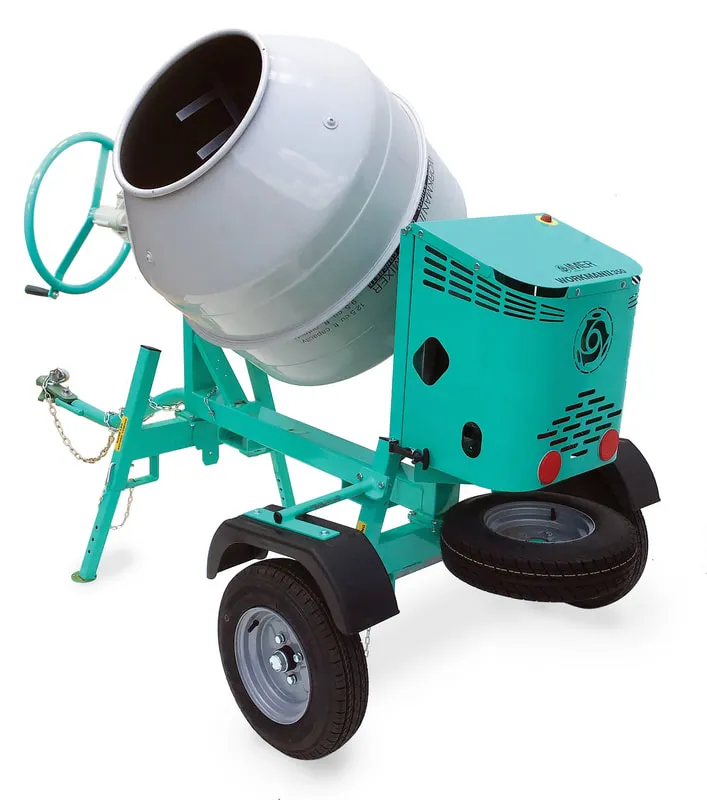

The IMER Workman II 350, model 1105862, is a towable steel-drum multi-mixer with a 1.5 hp single-phase electric motor for 120V/60Hz power. It mixes mortar, stucco, grout or concrete, with a 12 cu ft drum, a 9.5 cu ft batch output and up to 15 x 80 lb bags of concrete per batch.

The drum is driven by a direct drive gearbox sealed for life, with no external drive gears. The Posi-lock system locks and unlocks automatically so the drum can be stopped in any position, and aggressive paddles give fast, complete mixing. Drum diameter is 34-3/4 in and the discharge outlet height is 26-1/2 in.

For towing and handling, the mixer has a box steel frame, torsion bar suspension, pneumatic wheels, impact-resistant fenders and forklift pockets. A tow hitch ball adapter and a spare tire are included. The listed noise level is under 79 dB.

02Versions

4 versions of the IMER Workman II 350

Each has its own page, price and part number
  • 1105862

    12 cu ft, 120V Electric

    This version

    Free shipping

    $4,699

    Ships by Nov 21, 2026

IMER Workman II 350: all versions, specs and parts

03Specifications

IMER Workman II 350 technical data

From the IMER product sheet

Capacity

Drum capacity
12 cu ft
Batch output
9.5 cu ft

Power

Gas motor
Honda GX 160, 5.5 hp
Electric motor
120V / 240V 1.5 hp

Dimensions

Drum diameter
34-3/4 in
Discharge outlet height
26-1/2 in
Width (palletized)
50 (50) in
Length (palletized)
76-1/2 (86) in
Height (palletized)
56 (72) in

Weight

Weight
650 lbs

Performance

Noise level
<79 dB

Model numbers

Gas / 120V / 240V / less power
1105855 / 1105862 / 1105863 / 1105856

04Shipping

Shipping and lead time

Shipped by IMER USA
Lead time
Usually ships in 2–3 weeks. The machine is ordered from IMER for you; some are assembled to order or back-ordered, so we confirm the ship date after you order. Expected ship date for an order placed today: Nov 21, 2026. IMER USA ships it directly to you.
Delivery
LTL freight, 7–10 business days in transit. Free to commercial addresses in the contiguous US; residential and/or liftgate delivery adds one flat $75. Ships to the USA and Canada (not to Quebec). Shipping conditions
Returns
30-day returns. Non-defective returns: 15% restocking fee (parts), 30% (machines), return freight paid by the buyer. See Returns
