IMER Tracker 1624 Tracked Dumper, Fixed Bucket, 25 HP Honda GX800 – IMER part 5110003

01About

About this machine

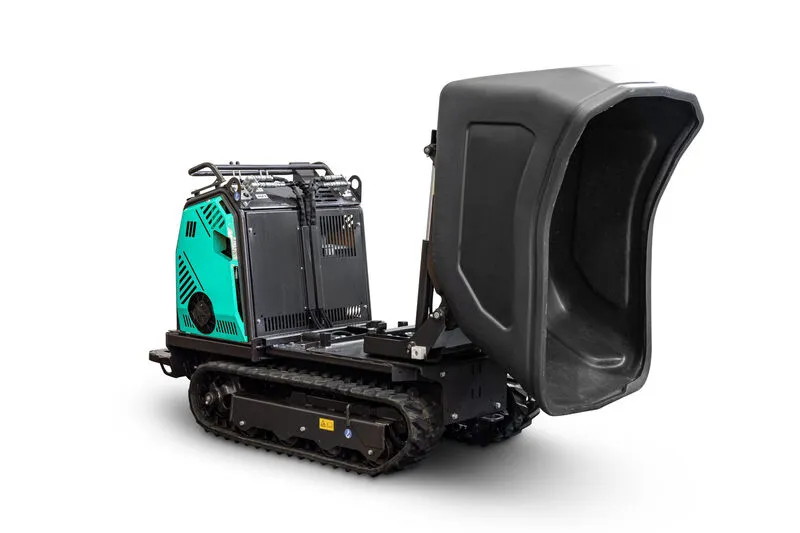

IMER Tracker 1624 Tracked Dumper, Fixed Bucket, 25 HP Honda GX800.

IMER part number 5110003.

Tracker 1624 - Fixed Bucket - 25 HP Honda GX800, Dual Hydraulic Pump, Includes Straight Dump Poly Bucket. IMER part number 5110003.

Sold new by IMER Parts USA. Authorized IMER dealer. Ships from the USA.

02Versions

2 versions of the IMER Tracker 1624

Each has its own page, price and part number
  • 5110003

    Fixed Bucket, 25 HP Honda GX800

    This version

    $21,995

    In stock

  • 5110004

    Swivel Bucket, 25 HP Honda GX800

    Tracker 1624 Tracked Dumper, Swivel Bucket, 25 HP Honda GX800

    $23,995

    In stock

IMER Tracker 1624: all versions, specs and parts

03Specifications

IMER Tracker 1624 technical data

From the IMER product sheet

Weight

Machine weight
1,521 lbs

Capacity

Operating load
2,400 lbs
Payload capacity (struck/heaped)
16 cu ft / 19 cu ft

Performance

Speed (forward/reverse)
6 mph / 2.5 mph
Max allowed slope (empty)
20° - 36%
Max allowed slope (loaded)
11° - 20% (variable based on configuration)
Noise level
<79 dB

Dimensions

Ground clearance
5.5 in
Length
75.5 in
Height
52 in
Width
35 3/8 in

Power

Engine
Honda iGX 800, 25 HP, fuel injected
Start
Electric
