IMER Workman II 250 Towable Multi-Mixer, 9 cu ft, 120V Electric – IMER part 1105842

01About

About this machine

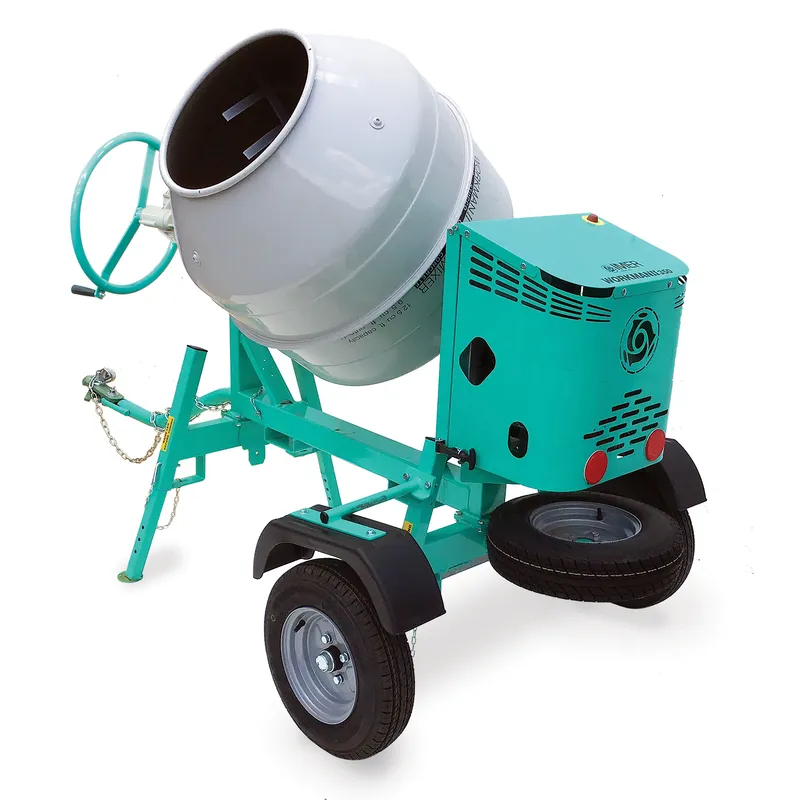

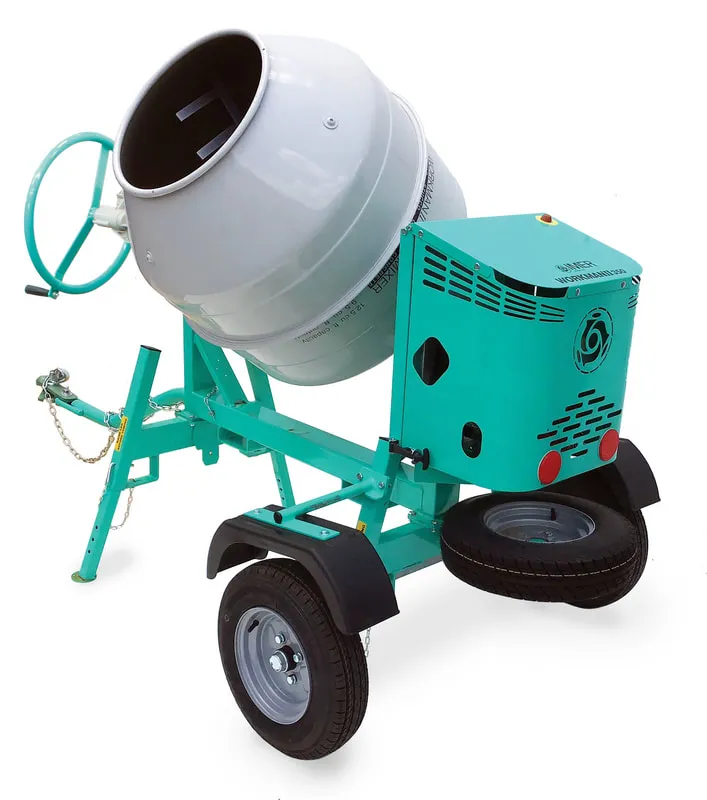

The IMER Workman II 250, model 1105842, is a towable steel-drum multi-mixer with a 1.5 hp single-phase electric motor for 120V/60Hz power. It mixes mortar, stucco, grout or concrete, with a 9 cu ft drum, a 6 cu ft batch output and up to 10 x 80 lb bags of concrete per batch.

The drum is driven by a direct drive gearbox sealed for life, with no external drive gears. The Posi-lock system locks and unlocks automatically so the drum can be stopped in any position, and aggressive paddles give fast, complete mixing. Drum diameter is 29-1/2 in and the discharge outlet height is 27-3/4 in.

For towing and handling, the mixer has a box steel frame, torsion bar suspension, pneumatic wheels, impact-resistant fenders and forklift pockets. A tow hitch ball adapter and a spare tire are included. The listed noise level is under 79 dB.

02Versions

4 versions of the IMER Workman II 250

Each has its own page, price and part number
  • 1105842

    9 cu ft, 120V Electric

    This version

    $4,349

    In stock

IMER Workman II 250: all versions, specs and parts

03Specifications

IMER Workman II 250 technical data

From the IMER product sheet

Capacity

Drum capacity
9 cu ft
Batch output
6 cu ft

Power

Gas motor
Honda GX 160, 5.5 hp
Electric motor
120V / 240V 1.5 hp

Dimensions

Drum diameter
29-1/2 in
Discharge outlet height
27-3/4 in
Width (palletized)
50 (50) in
Length (palletized)
72 (80) in
Height (palletized)
55 (68) in

Weight

Weight
525 lbs

Performance

Noise level
<79 dB

Model numbers

Gas / 120V / 240V / less power
1105850 / 1105842 / 1105843 / 1105851

04Shipping

Shipping and lead time

Ships from the USA
Lead time
Usually ships in 2–3 weeks. IMER machines come from Italy and some are assembled to order or back-ordered, so we confirm the ship date after you order.
Delivery
LTL freight, 7–10 business days in transit. Free to commercial addresses in the contiguous US on orders over $1,500; residential delivery adds $150 and a liftgate $150. Ships to the USA and Canada (not to Quebec). Shipping conditions
Returns
30-day returns. Return policy
