Pressure gauge membrane – genuine IMER part 3223392

01Where it fits

Where this part sits on your machine

+ 4 more machines

Also on this drawing

All 66 parts on Drawing 1, Machine Structure

02Fits

Fits these machines

6 machines · 5 IMER parts books

From IMER parts books 3234489 r01 (2015-12), 3223425 r18 (2018-09), 3234338 r03 (2018-09), 3225890 r11 (2018-09), 3226875 r16 (2018-09).

03Where it sits

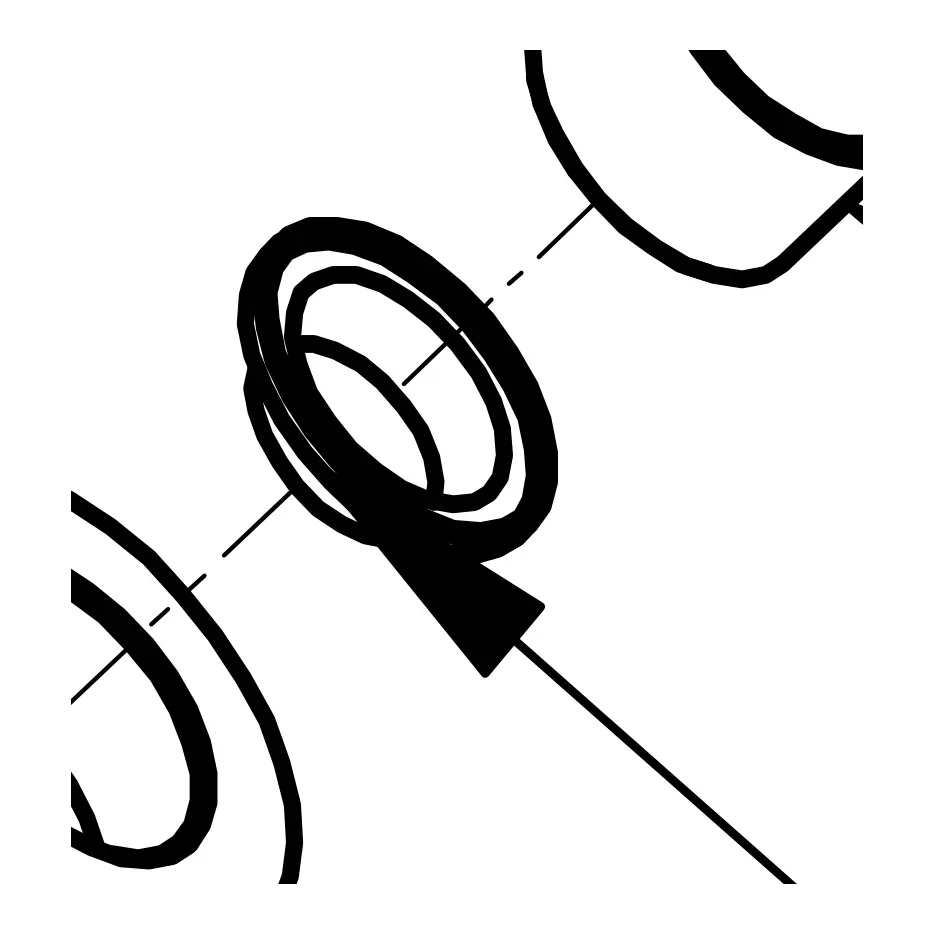

Ref 45 on the Koine 35 drawing

Open full diagram →
Koine 35 — Machine Structure, parts list
RefPart no.NamePrice
13223726Koine 4 HopperFrom serial number 9491208Request price
23225842CompressorIn stock, $3,017.00
33223422Rubber Wheel D.200In stock, $187.00
43223366Dust Outlet Door SealIn stock, $44.00
53223378PlugIn stock, $71.00
63223412FrameIn stock, $1,234.00
71107032Stator EOB/SM D4-1/2Koine 35 AeroblueRequest price
71107084Stator Eco Star CB/63Koine 35Request price
82224640Washer 6592In stock, $10.00
93223388ManifoldIn stock, $505.00
103223719Clamping ConesRequest price
113223720Tie-RodIn stock, $108.00
123223389GuardIn stock, $39.00
133223703M-M Cam CouplingRequest price
143227962GuardRequest price
153229673Electrical PanelIn stock, $4,542.00
163223370Mixing ChamberIn stock, $1,195.00
173223995SealIn stock, $10.00
181107542MixerIn stock, $209.00
193228425Flanged HoseFrom serial number 3006583Request price
203223352TerminalIn stock, $161.00
213228424GuardFrom serial number 3006583Request price
223223716HandleIn stock, $54.00
233223374Chamber PinIn stock, $142.00
243229688Mixer GearmotorFrom serial number 3006583Request price
253229264CoverFrom serial number 3006766In stock, $62.00
263228031Water CircuitRequest price
273229325Locking HandleFrom serial number 3006766Request price
283223394Cell WheelIn stock, $833.00
293224139RH GuardIn stock, $98.00
303223376Central EyeboltIn stock, $147.00
313223377Wheel SupportIn stock, $327.00
33/341107033Cam Screw (Rotor) EOB/SM D4-1/2Koine 35 Aeroblue; printed beside refs 33 and 34, exact ref uncertainRequest price
33/341107085Cam Screw (Rotor) Eco StarKoine 35; printed beside refs 33 and 34, exact ref uncertainRequest price
353223717Safety HandleIn stock, $234.00
363223421Brake Wheel D.200In stock, $281.00
373223354Pipe WrenchIn stock, $122.00
383223347Vertical SectionIn stock, $152.00
393223349ScraperIn stock, $97.00
403233856Cell Wheel GearmotorIn stock, $889.00
413207209Female Eyebolt M8 ZIn stock, $13.00
423223397Cell Wheel TyreRequest price
433223689Manifold Pressure GaugeIn stock, $106.00
443223391Spacer M8 F ZIn stock, $29.00
453223392Anti-Freeze Membrane M8 ZIn stock, $29.00
463223986Screw 8x50 TTCQ ZRequest price
473223987Screw 8x20 TTCQ ZIn stock, $10.00
482226700Split Pin D.3.5 ZIn stock, $10.00
493223724GrillFrom serial number 9491208Request price
502222060Hex Head Screw 8.8 5739 8x20 ZIn stock, $10.00
512222156Hex Head Screw 8.8 5737 10x50 ZRequest price
522223920Self Locking Nut M10 ZIn stock, $10.00
533224142Hex Head Screw 8.8 5739 8x45 ZRequest price
543223702Flanged Nut M16 UNI 6923 ZRequest price
552222034Hex Head Screw 8.8 5739 12x20 ZRequest price
562222088Hex Head Screw 8.8 5737 8x40 ZRequest price
571222050Hex Head Screw 8.8 5739 8x50 ZRequest price
581222047Hex Head Screw 8.8 5739 8x70Request price
592223570Nut M16 ZIn stock, $10.00
603224148Rear ApronIn stock, $51.00
613224149Front ApronRequest price
623224150Rear Apron SheetRequest price
633224151Front Apron SheetRequest price
643223609Reduction M.1/2" F.1/4"In stock, $10.00
653224173Reduction M.1" 1/2 F.1/2"In stock, $65.00
663234104Toolbox KitIn stock, $269.00

04Specifications

Part details

Part number
3223392(3223-392)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Machine Structure
Fits
6 machines

The Pressure Gauge Membrane, part number 3223392, is a genuine IMER OEM part. The IMER parts book lists it for the Koine 4 mixing chamber and High Flow Kit (1106325), the Small 50 pressure gauge assemblies (1107512 and 1107515), the Step-Up 120 pump group and Injection Kit (1107575), and the Prestige 300 pump unit and Injection Kit (1107082).

On the Koine 35 and Koine 35 Aeroblue, the same part number appears in the machine structure as the anti-freeze membrane M8 Z. Check the parts book reference for your machine before ordering.

05Used with

Often replaced together

Wear parts next to it on the same drawing

06Documents

Parts books

Guides

Guides for this part

Answers

Questions about the machines it fits

All answers

07Shipping & returns

Shipped from the USA

Shipping & delivery →Returns & warranty →

  • Ships from the USA

    Leaves us in 1–3 business days; ground delivery usually takes 5–7 business days.

  • Free shipping over $1,500

    On orders over $1,500 to commercial addresses in the contiguous US.

  • 30-day returns

    30-day returns on unused items with a return authorization.

08Questions

Good to know

Which IMER machines does part 3223392 fit?

The parts book lists it for the Koine 4, Koine 35, Koine 35 Aeroblue, Small 50, Step-Up 120 and Prestige 300.

Fit check

Not sure it fits?

Send us the model and serial number from the machine’s serial plate, or a photo of it. A parts specialist checks the fit against the IMER parts books before the part ships.
Ask about the fitCall +1 (307) 301-7723
