01Where it fits
Where this part sits on your machine
02Fits
Fits these machines
5 machines · 2 IMER parts books
From IMER parts books 3228768 r12 (2019-02), 3209290 r11 (2019-02).
03Specifications
Part details
This shaft is a genuine IMER part, part number 3208771. It belongs to drum reduction unit 3209786.

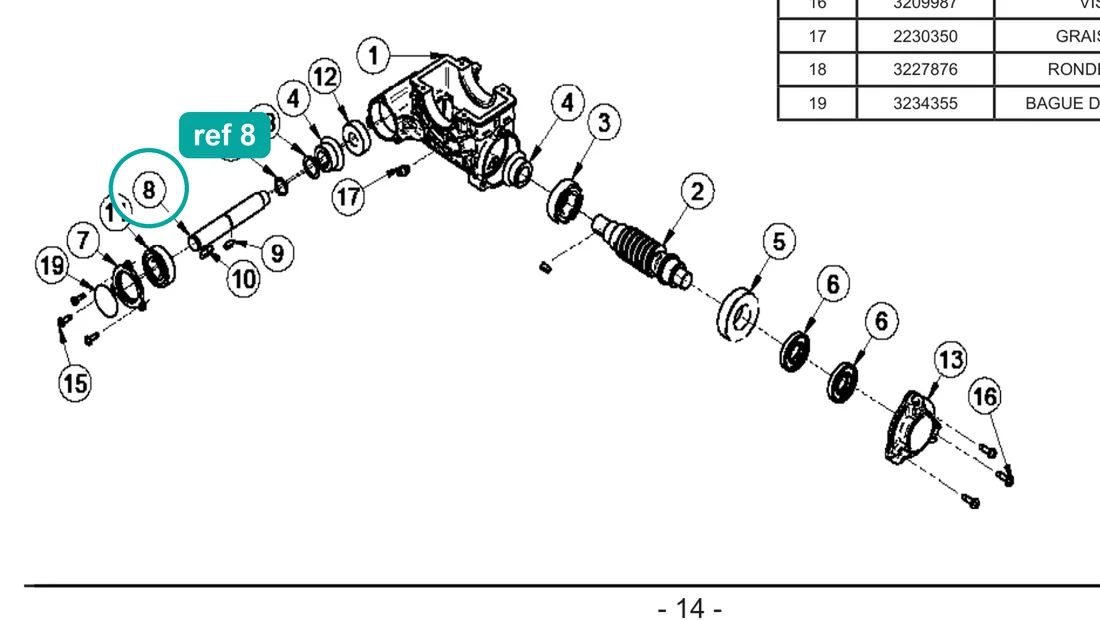

The IMER Syntesi parts book lists it as ref. 8 in TAV. 4 (drum reduction unit 3209786), and that unit is ref. 6 in the machine structure tables of the Syntesi 190 EL, 250 EL, 300 EL and 350 EL. The IMER Workman II 250 parts book lists the same part number as ref. 8 in Table 3, drum reduction unit 3209786.
Check that the part number in your machine's parts list matches 3208771 before ordering, or contact us with your machine's model and serial number.
04Documents
Parts books
Answers
Questions about the machines it fits
05Shipping & returns
Shipped from the USA
Fit check
Not sure it fits?
Send us the model and serial number from the machine’s serial plate, or a photo of it. A parts specialist checks the fit against the IMER parts books before the part ships.
