IMER Prestige 300 parts book · Drawing 5
Ref 15
01Where it fits
Where this part sits on your machine
Also on this drawing
All 40 parts on Drawing 5, Engine Assembly02Fits
Fits these machines
4 machines · 3 IMER parts books
From IMER parts books Mix 60 Plus, 3234338 r03 (2018-09), 3228768 r12 (2019-02).
03Where it sits
Ref 15 on the Prestige 300 drawing
04Specifications
Part details

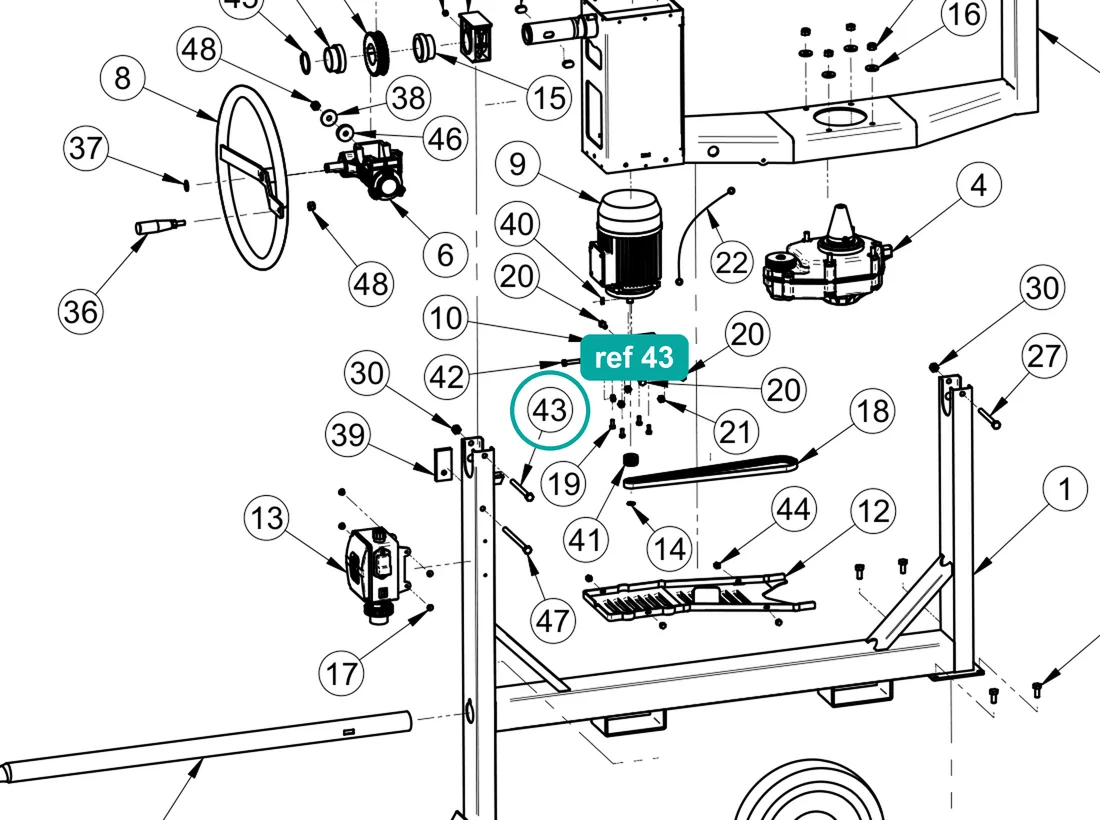

This bolt is a genuine IMER part, part number 2222154. The Syntesi parts book lists it as Bolt TE 8.8 5737 M10X120 Z in the machine structure of the Syntesi 300 and 350 EL (TAV. 1/B, ref. 43), and the Mix 60 Plus parts book as Bolt M10X120 in the mortar mixer (Diagram #2, ref. 14).
The Prestige parts book lists the same part number as a screw in the engine assembly (TAV.5, ref. 15).
Order by part number 2222154 to match the original IMER bolt.
05Used with
Often replaced together
Wear parts next to it on the same drawing
06Documents
Parts books
Guides
A guide for this part
Answers
Questions about the machines it fits
07Shipping & returns
Shipped from the USA
Fit check
Not sure it fits?
Send us the model and serial number from the machine’s serial plate, or a photo of it. A parts specialist checks the fit against the IMER parts books before the part ships.
