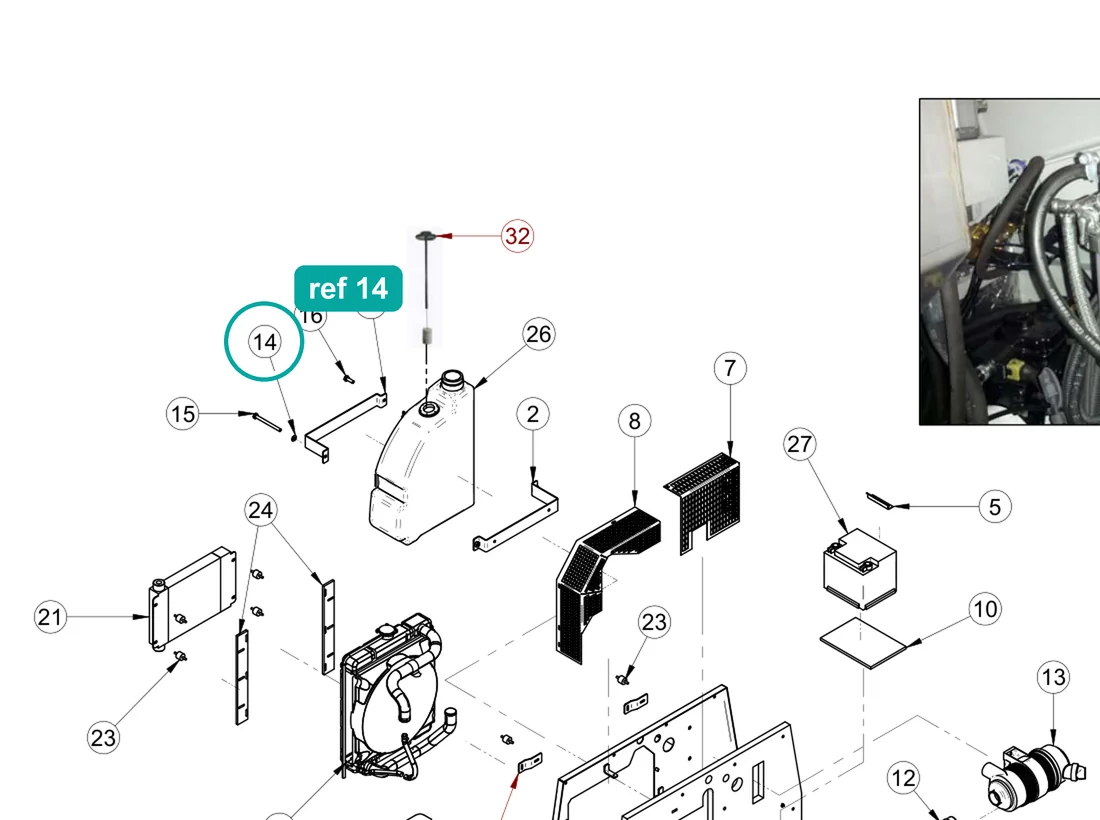

Where this part sits on your machine
Also on this drawing
All 14 parts on Drawing 2, Complete Frame02Fits
Fits these machines
12 machines · 10 IMER parts books
From IMER parts books 3227118 r14 (2018-09), 3231790 r07 (2018-09), 3231378 r05 (2019-06), 3236275 r02 (2019-03), 3211378 r02 (2018-09), 3211212 r03 (2018-09), 3230425 r07 (2019-02), 3234338 r03 (2018-09), 3226875 r16 (2018-09), 3228768 r12 (2019-02).
03Where it sits
Ref 11 on the Combicut 250/1000 VA drawing
04Specifications
Part details
This washer M10x20 Z is a genuine IMER part, part number 2224340. In the IMER Mix 360 parts book it is ref. 61 in the Tank Assembly (TAV. 1) and ref. 28 in the Frame Assembly (TAV. 4).
The same part number is also listed in the IMER parts books for the Step-Up 120, Combicut 250/1000 VA, Combicut 250/1500 VA, Syntesi 300 EL, Syntesi 350 EL, Mortarman 120 Plus, Masonry 350 Smart Cut, Combicut 350 iPower, Prestige and Masonry 750 Plus.
Order by part number 2224340 to match the original part.
05Used with
Often replaced together
Wear parts next to it on the same drawing
