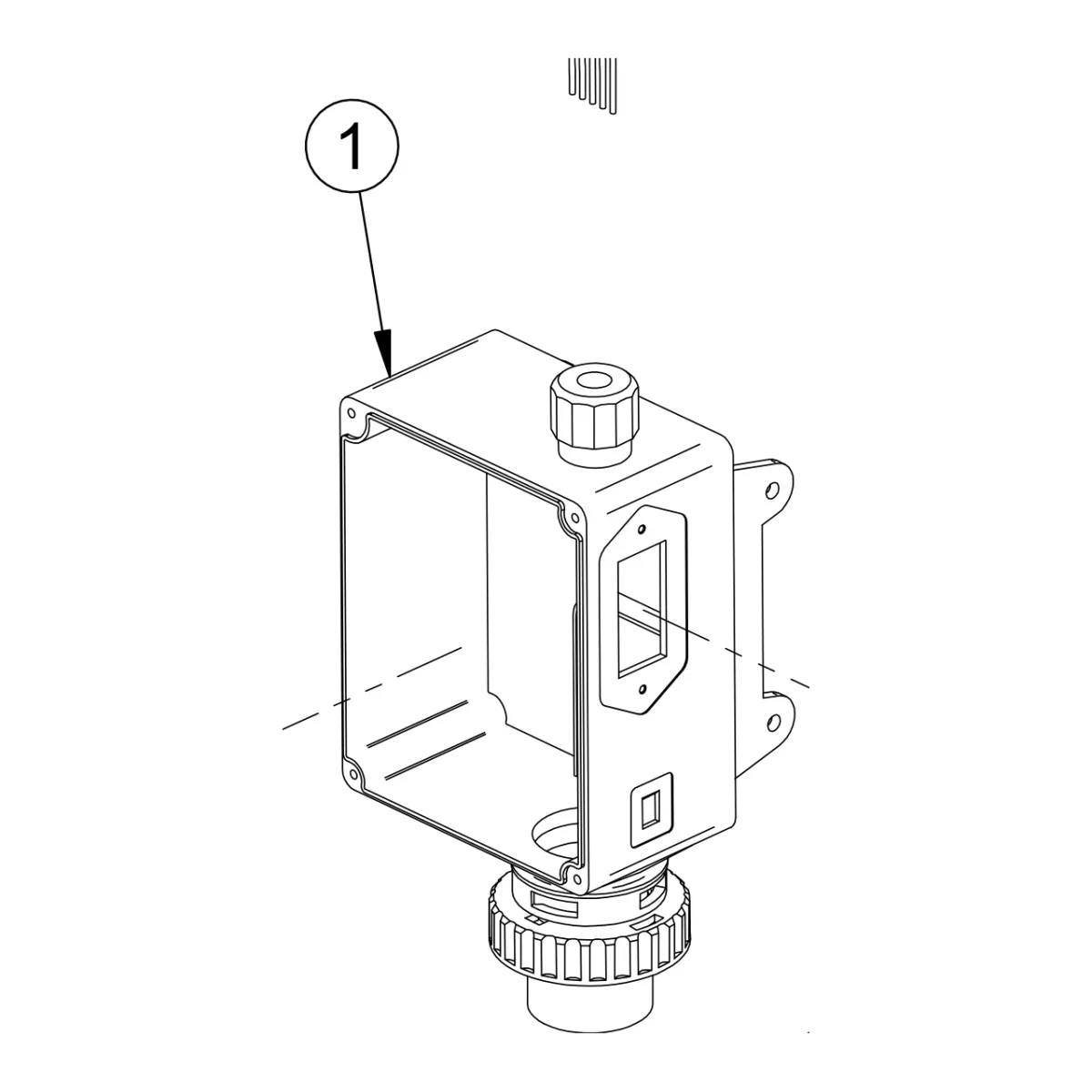

Junction box – genuine IMER part 3234949

01Where it fits

Where this part sits on your machine

Also on this drawing

All 20 parts on Drawing 5, Single-Phase Electrical Panel
  • 5
    Capacitor 100 µF 250V

    3229797

    $85.00In stock

  • 1
    Junction box

    3228752

    $144.00In stock

  • 2
    Electrical panel switch

    3209337

    $70.00In stock

  • 6
    Electric cable

    3226030

    $41.00In stock

  • 6
    Electric cable

    3228762

    $122.00In stock

  • 4
    Bolt TCTC 4,2×16

    3210116

    $10.00In stock

02Fits

Fits these machines

4 machines · 1 IMER parts book

From IMER parts book 3228768 r12 (2019-02).

03Where it sits

Ref 1 on the Syntesi 190 EL drawing

Open full diagram →
Syntesi 190 EL — Single-Phase Electrical Panel, parts list
RefPart no.NamePrice
13228752Junction BoxCod. 1105650 - 1105700In stock, $144.00
13228754Junction BoxCod. 1105703Request price
13228753Junction BoxCod. 1105750 - 1105752 - 1105800 - 1105801 (1105800-A Australia version)Request price
13228755Junction BoxCod. 1105803Request price
13234949Junction BoxCod. 1105802In stock, $122.00
23209337SwitchCod. 1105650 - 1105700 - 1105750 - 1105752 - 1105800 - 1105801 (1105800-A Australia version)In stock, $70.00
23210872SwitchCod. 1105703 - 1105803Request price
23234950SwitchCod. 1105802Request price
33209340Transparent Protection CoverGB text prints 'Leakage Protection'; uncertain translationRequest price
43210116BoltIn stock, $10.00
53229078Capacitor 450V 35uFCod. 1105650 - 1105700Request price
53213013Capacitor 250V 120uFCod. 1105703Request price
53229080Capacitor 450V 60uFCod. 1105750 - 1105800Request price
53210707Capacitor 250V 110uFCod. 1105803Request price
53209504Capacitor 450V 50uFCod. 1105752 (1105800-A Australia version)Request price
53231995Capacitor 450V 60uFCod. 1105801Request price
53229797Capacitor 250V 100uFCod. 1105802In stock, $85.00
63226030Electric CableCod. 1105650 - 1105700 - 1105750 - 1105752 - 1105800 - 1105801 - 1105800/AIn stock, $41.00
63228762Electric CableCod. 1105703 - 1105803 - 1105802In stock, $122.00
73209542USA PlugCod. 1105802Request price

04Specifications

Part details

Part number
3234949(3234-949)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Single-Phase Electrical Panel
Fits
4 machines

This junction box is a genuine IMER part, part number 3234949. The IMER Syntesi 190-250-300-350 EL parts book lists it as ref. 1 in Tav. 5, Single-Phase Electrical Panel, for machine code 1105802 only. The other codes use junction boxes 3228752, 3228753, 3228754 and 3228755.

The technical data table in the same manual gives code 1105802 as a Syntesi 350 EL, and the manual cover lists 1105802 as 115V/60Hz.

Check the machine code of your mixer before you order.
