IMER Combicut 350 iPower parts book · Drawing 7

Ref 15

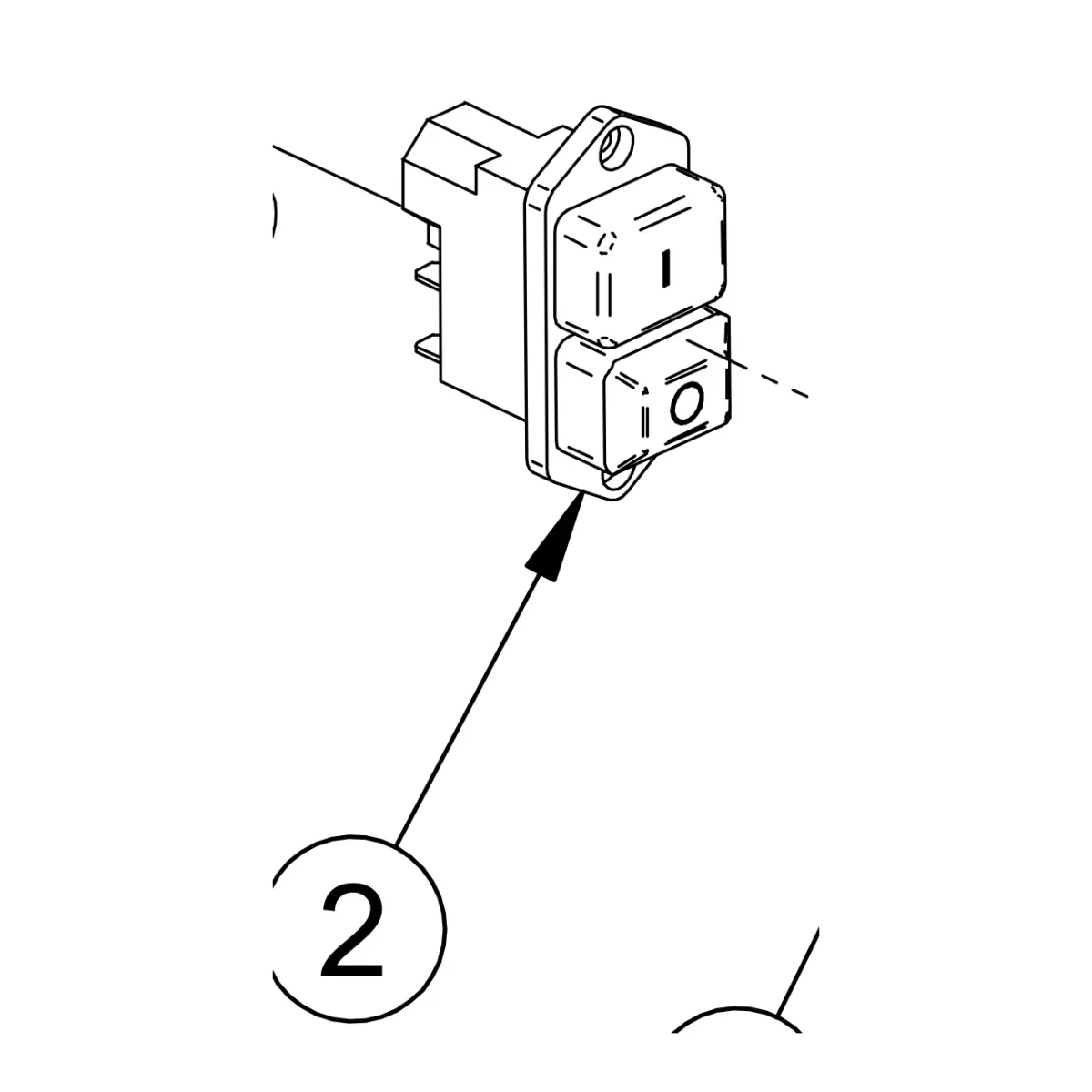

Electrical panel switch (ref 15) on the IMER Combicut 350 iPower Electric Panel drawing
Combicut 350 iPower parts book · Drawing 7, Electric Panel · Ref 15 · Open full diagram

01Where it fits

Where this part sits on your machine

Also on this drawing

All 20 parts on Drawing 7, Electric Panel
  • 11
    Electrical enclosure

    3231770

    $33.00In stock

  • 16
    Switch

    3206170

    $53.00In stock

  • 8
    Gasket

    3231442

    $22.00In stock

  • 12
    Screw TCB PH 7687 5×20 z

    3207152

    $10.00In stock

  • 10
    Power supply

    3228251

    $77.00In stock

  • 7
    Panel support plate

    3231429

    $20.00In stock

02Fits

Fits these machines

5 machines · 2 IMER parts books

From IMER parts books 3231790 r07 (2018-09), 3228768 r12 (2019-02).

03Where it sits

Ref 15 on the Combicut 350 iPower drawing

Open full diagram →
Combicut 350 iPower Electric Panel, exploded view with reference numbers
IMER Combicut 350 iPower · Drawing 7, Electric Panel. Select a number on the drawing to find its row.
Combicut 350 iPower — Electric Panel, parts list
RefPart no.NamePrice
13234570Electric Motor230V 50HzIn stock, $965.00
13231950Electric Motor220V 60HzIn stock, $921.00
23231483Motor PulleyIn stock, $130.00
32227270Stop Ring 7435 E/24In stock, $10.00
42223352Nut 5588 M5In stock, $10.00
51224780Grower Washer D.5In stock, $10.00
62222465Trilobular Screw TC PH M5x15In stock, $10.00
73231429Panel Support PlateIn stock, $20.00
83231442GasketIn stock, $22.00
93231995Capacitor 60µF 450VNot sold onlineAsk a parts specialist
103228251Laser Power SupplyIn stock, $77.00
113231770Electrical EnclosureIn stock, $33.00
123207152Screw TCB PH 7687 5x20 ZIn stock, $10.00
133201217Cable Clamp PG11Not sold onlineAsk a parts specialist
143209692Cable Clamp PG13.5Not sold onlineAsk a parts specialist
153209337SwitchIn stock, $70.00
163206170SwitchIn stock, $53.00
173206171Switch ProtectionNot sold onlineAsk a parts specialist
183231700Electric Panel220-230V 50/60HzIn stock, $361.00
193203504Plug 2P+GNDIn stock, $55.00

04Specifications

Part details

Part number
3209337(3209-337)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Electric Panel
Fits
5 machines

The Electrical Panel Switch, part number 3209337, is a genuine IMER OEM part. The IMER parts book lists it in the electric panel of the Combicut 350 iPower and in the single-phase electrical panel of the Syntesi 190 EL, Syntesi 250 EL, Syntesi 300 EL and Syntesi 350 EL.

On Syntesi EL machines it applies to machine codes 1105650, 1105700, 1105750, 1105752, 1105800 and 1105801, including the 1105800-A Australia version. The 115V/60Hz Syntesi (code 1105802) uses switch 3234950 instead. For the Combicut 350 iPower it is sold for the 220V version. Check the code on your machine before ordering.

05Used with

Often replaced together

Wear parts next to it on the same drawing

06Documents

Parts books

Answers

Questions about the machines it fits

All answers

07Shipping & returns

Shipped by IMER USA

Shipping & delivery →Returns & warranty →

  • Ships from IMER USA

    Shipped directly by IMER USA from its US warehouse, within 1–3 business days; ground delivery usually takes 5–7 business days.

  • Flat-rate shipping by size

    Parts ship at a flat rate by size, from $20. IMER machines ship free to commercial addresses in the contiguous US.

  • 30-day returns, restocking fee may apply

    30-day returns on unused items with a return authorization. Non-defective returns: 15% restocking fee (parts), 30% (machines), return freight paid by the buyer. See Returns

08Questions

Good to know

Which IMER machines does part 3209337 fit?

The Combicut 350 iPower and the Syntesi 190 EL, 250 EL, 300 EL and 350 EL with a single-phase electrical panel.

Which Syntesi EL versions use this switch?

Machine codes 1105650, 1105700, 1105750, 1105752, 1105800 and 1105801, including the 1105800-A Australia version.
